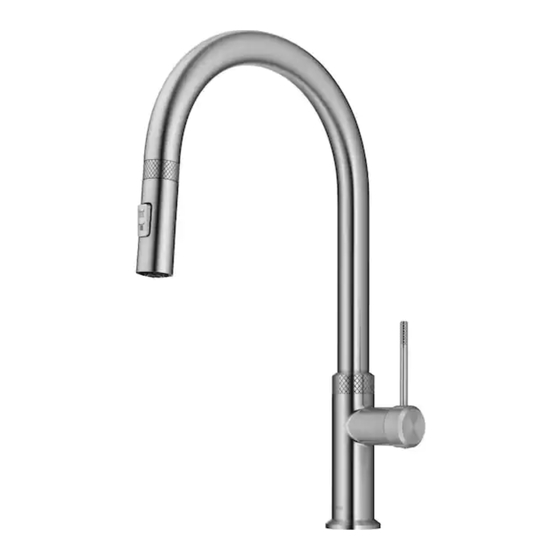

- Page 1 INSTALLATION MANUAL Allyn Single Handle Pull Down Kitchen Faucet KPF-2654 www.kraususa.com Toll Free: 1.800.775.0703 © 2021 Kraus USA Plumbing LLC REV. December 7, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
· Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Read all instructions and safety warnings and ensure you have all tools, ·... -
Page 4: Tools Required
Tools Required Adjustable Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape... - Page 5 Diagram and Parts List Spray Head Faucet Body O-Ring Waterlines Quick Connector 6A. Metal Washer 6B. Mounting Nut 6C. Mounting Screws Hex Wrench Weight Spray Hose...
- Page 6 Faucet Dimensions 11 1/4" 4" (285mm) (101mm) 5° 9 5/8" (245mm) Ø 1 3/8" (35mm) 3/8" Connection Installer Tip: Shut off main water supply before installing new faucet.
- Page 7 Step 1. Installing the O-Ring Install the O-Ring (3). Step 2. Install faucet and mounting hardware Insert faucet body (2) into the hole in the sink or countertop. Install mounting hardware (6A, B & C) from underneath the countertop.
- Page 8 Secure mounting hardware Step 3. Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (6B) until snug. Tighten mounting screws (6C) to nut with Phillips screwdriver until snug. Step 4. Attach spray hose and counterweight Connect the spray hose (9) to quick connector outlet (5) attached to the supply line.
- Page 9 Step 5. Connect waterlines Connect hot and cold copper lines (4) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks. NOTE: Please make sure filter washers are installed before connecting to the main valve.
- Page 10 Step 7. Check for leaks Check for leaks at the connections. Retighten if necessary .
- Page 11 Maintenance - Cartridge Replacement Step 1: Remove the button located at the top of the catridge cover. Loosen the set screw with a hex wrench. Remove the handle and unscrew cartridge cover by hand. Step 2: Unscrew the locking nut with a hexagon socket wrench.
-
Page 12: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Spray Head CH, SFS, MB, BG** KP06254 BLMB, GRCH, KP06247 2. Spray Hose GRSFS* 3. Spout Clip BL, GR** KP06253 4. Handle Button BL, GR** KP06250 5. Set Screw KP06249 6. Faucet Handle CH, SFS, MB, BG** KP06248 7. -
Page 13: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Loosen set screw with hex wrench. Remove cartridge needs to be reseated. - Page 14 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 15 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
