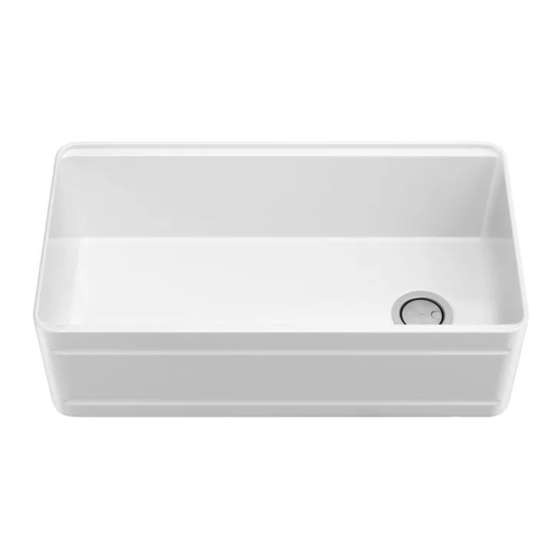

- Page 1 INSTALLATION MANUAL Fireclay Workstation Farmhouse Kitchen Sink KFR4-33GWH www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. October 26, 2020...
- Page 2 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Tools You Will Need
Silicone Adhesive Jig Saw Acetone Phillips Screwdriver Pencil Screwdriver Level Tape Measure NOTE: Specialized tools may be necessary to install Kraus Fireclay sinks with countertop materials other than wood, marble or granite. Parts List · Sink · Strainer ST-4 ·... - Page 5 1. Measure & Build Supports · Measure the actual height of apron · Build supports on inside of cabinet based on sink measurements NOTE: Due to the typical ±3mm side Installer Tip: Support options wall variance in manufacturing, it is ·...
- Page 6 2. Cut Cabinet Front · Measure height of apron front. Add " to the dimension when you mark base cabinet front cutout. Use jigsaw to cut.
- Page 7 3. Install Sink · Place sink in opening. The weight of sink should be sustained by the built supports. · Make sure sink is leveled from front to back and side to side · Uses silicone to fill in gaps where necessary NOTE: This sink is reversible.
- Page 8 Due to the custom nature of this type of installation, no cutout template is included. · Kraus recommends providing the cabinet maker with the actual sink to be installed prior to the cabinet fabrication. · It is recommended that the sink be installed with an approximately 1/8"...
- Page 9 5. Install Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place countertop cutout hole over sink and press firmly. Installer Tip: Use acetone or denatured alcohol to remove any excess sealant.
- Page 10 6. Installing Plumbing and Fixtures · Connect drain, trap to drain and water supply connections to the faucet according to manufacturer's instruction. · Run water into sink and check for leaks. · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification.
- Page 11 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 12 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty.
- Page 13 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
