Ginlong Technologies Co., Ltd.
No. 188 Jinkai Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Please adhere to the actual products in case of any discrepancies in this user manual.
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Comply with CA Rule 21/
Certified to UL 1741 SA
PV Grid Tie Inverter

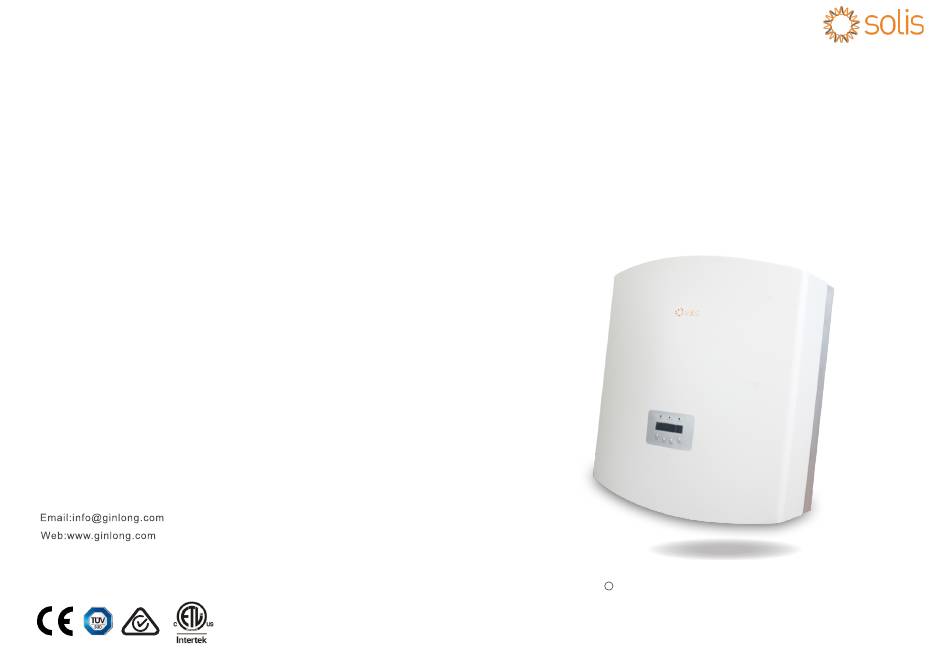

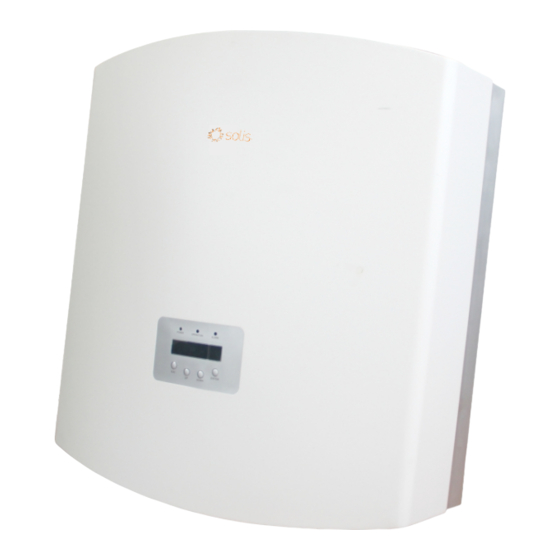

Solis Three Phase Inverter
Installation and Operation Manual (For Mexico)
For model Solis-25K-LV, Solis-30K-LV, Solis-50K-HV,
Solis-60K-HV
Ginlong Technologies Co., Ltd
C
Ver 1.5
