Ginlong Solis RHI-HV Series Instruction Manual

Hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Please adhere to the actual products in case of any discrepancies in this user manual.
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
ComplywithCARule21/
SunSpec
CertifiedtoUL1741SA
Certified
Certified to UL Std. No. 1741-Second Edition
& CSA-C22.2 No.107.1-16

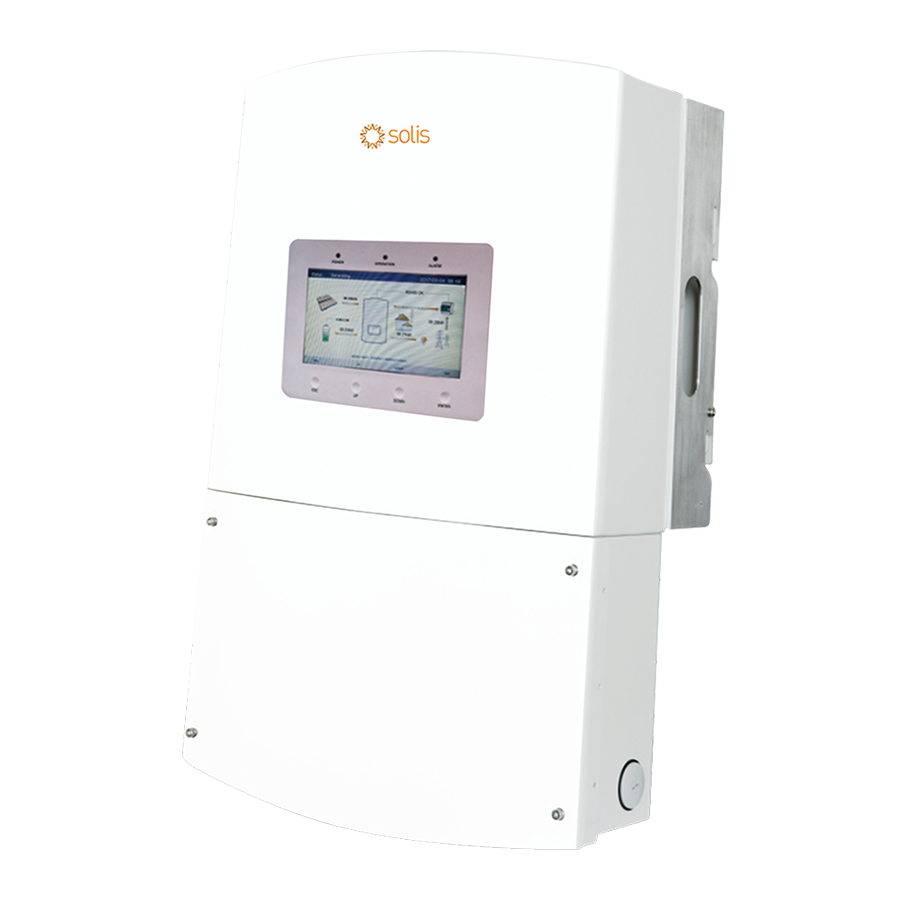

Solis RHI-HV Series Hybrid Inverter
Instruction Manual
Ginlong Technologies Co., Ltd.
(ForUSA)
Ver 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solis RHI-HV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ginlong Solis RHI-HV Series

Summary of Contents for Ginlong Solis RHI-HV Series

  • Page 1 Solis RHI-HV Series Hybrid Inverter Instruction Manual (ForUSA) Ver 1.1 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.

  • Page 2: Table Of Contents

    Contents 1. Introduction ………………………………………………………………………………………………………………… 1.1 Product Description ………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………… 2. Safety & Warning ……………………………………………………………………………………………………… 2.1 Safety ……………………………………………………………………………………………………………………………… 2.2 General Safety Instructions …………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………………… 3. Overview ………………………………………………………………………………………………………………………… 3.1 Screen ………………………………………………………………………………………………………………………………… 3.2 Keypad …………………………………………………………………………………………………………………………………… 3.3 Terminal Connection …………………………………………………………………………………………………………...

  • Page 3: Introduction

    1. Introduction 1. Introduction 1.2 Packaging 1.1 Product Description The Solis RHI-HV 5G series is designed for residential hybrid systems, which can work Please ensure that the following items are included in the packaging with your machine: with high voltage lithium ion batteries to maximize self-consumption rate. This product can operate in both ON-Grid and OFF-Grid modes.

  • Page 4: Safety & Warning

    2. Safety & Warning 2. Safety & Warning 2.1 Safety The following types of safety instructions and general information appear in this document as described below: WARNING: Electrical installations must be done in accordance with the local and national DANGER: electrical safety standards.

  • Page 5: Notice For Use

    2. Safety & Warning 3. Overview 3.1 Screen Solis RHI-HV series has a 7 inch color screen that displays the status, operating information, and settings of the inverter. WARNING: 3.2 Keypad Operations below must be accomplished by licensed technician or Solis authorized person.

  • Page 6: Installation

    4. Installation 4. Installation 4.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: Install on a wall or strong structure capable of bearing the weight of the machine (30kg). Install vertically with a maximum incline of +/- 5 degrees: exceeding this may cause WARNING: Risk of fire output power derating.

  • Page 7: Mounting The Inverter

    4. Installation 4. Installation 4.2 Mounting the Inverter Dimensions of mounting bracket: 2. Lift up the inverter (be careful to avoid body strain) and align the back bracket on the inverter with the convex section of the mounting bracket. Hang the inverter on the mounting bracket and ensure the inverter is secure (see Figure 4.5) Figure 4.3 Inverter wall mounting Once a suitable location has been found according to 4.1 using figures 4.3 and 4.4...

  • Page 8: Pv Terminals

    4. Installation 4. Installation 4.3 PV Terminals Please ensure the following before connecting the inverter: NOTE: Ensure the voltage of the PV string will not exceed the max DC input The installation shall meet the National Electrical Code, ANSI/NFPA 70 and voltage (500Vdc).

  • Page 9: Battery Fuse Terminals

    4. Installation 4. Installation 2. Lead the AC cable through the cable gland and the housing. Over-Current Protection Device (OCPD) for the AC side To protect the inverter's AC connection line, we recommend installing a device for protection 3. Remove a length of 40mm of the cable jacket and strip the wire insulation to a length of against over-current and leakage, with the following characteristics noted in Table 4.2: 18 –...

  • Page 10: Communication Terminals

    4. Installation 4. Installation Cable connection steps: Note: 1. Use slot type screwdriver to press the block on the top. The battery fuses in the wiring box are replaceable. 2. Insert the exposed copper part of the cable into the terminal. The replacement must be done by Solis authorized technicians only.
  • Page 11 4. Installation 4. Installation 4.6.2 Battery Communication 4.6.3 RS485 Communication Communication Terminals: CANL,CANH,ENABLE,GND,BMS485B,BMS485A Communication Terminals: RS485B and RS485A. Different battery types have different communication requirements. BYD Battery For BYD Battery-BoxH, CANL and CANH are used. The detailed connection is shown in the following figure. BYD Battery-BoxH Solis-RHI-1P(5-10)K-HVES CAN L CAN H...

  • Page 12: External Ground Connection

    4. Installation 5. Operation 4.7 External Ground Connection An external ground connection is provided at the right side of inverter. Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal. Pressing the ESC main menu Connect the OT terminal with ground cable to the right side of inverter. The torque is 2N.m. key calls back the previous menu information...

  • Page 13: Main Menu

    5. Operation 5. Operation 5.2 Main Menu After setting the language, press "ESC" to access the Home Page. There are four submenus in the Main Menu: 1. Information 2. Settings 3. Advanced Information 4. Advanced Settings Menu Settings 2015-02-23 19 35 Information 2.526 Settings...
  • Page 14 5. Operation 5. Operation Settings General Info Settings EnergyRecords 2015-02-23 19 35 2015-02-23 19 35 Inverter SN： 000F80017A20515 DRM NO.： Total Energy： 0000008kWh This Month： 0000kWh Device Status： Waiting Model NO.： Today： Last Month： 0000kWh 0000.0kWh Battery Status： Waiting Software Ver.： 040000 Yesterday：...

  • Page 15: Settings

    5. Operation 5. Operation 5.4 Settings In the Settings section, time and date, slave address and language can be set and Settings Meter Info 2015-02-23 19 35 modified. Subsections of Settings menu include: External： Internal： 1.Set Time/Date 2.Set Address 3.Set Language. Meter VoltageL1：...

  • Page 16: Advanced Information

    5. Operation 5. Operation 5.4.2 Set Address 5.5 Advanced Information Set the slave address of the inverter. The default address is 01. In the Advanced Information section, user can get access to more information. Subsections of Advanced Information menu include: Settings Set Address 2015-02-23 19 35...
  • Page 17 5. Operation 5. Operation 5.5.2 Warning Message 10 pages of the latest warning messages (5 per page are displayed). Settings General Status 2015-02-23 19 35 Warning messages show when there is an abnormality but they will not lead to inverter DC Bus Voltage：...

  • Page 18: Advanced Settings - Technicians Only

    5. Operation 5. Operation 5.5.4 Communication Data 5.6 Advanced Settings - Technicians Only Internal communication data can be viewed in this submenu. (For technicians only). NOTE: Values are for reference only. This function is for authorized technicians only. Improper access and operation may result in abnormal results and damage to the inverter.
  • Page 19 5. Operation 5. Operation 5.6.1 Select Standard This function is used to select corresponding grid standards. Please refer to the actual LCD setting for the grid standard options. NOTE: Press the UP/DOWN keys to select the standard (UL-240V, UL-208V, R21P3-240, ON: AC Relay is ON.
  • Page 20 5. Operation 5. Operation 5.6.4 Backup Control This section is used to set the configuration of the backup port. Settings Battery Select 2015-02-23 19 35 Settings Backup Control 2015-02-23 19 35 OverDischg SOC： 020% Backup ON/OFF Backup Settings Y E S = < E N T > N O = < E S C > E S C D O W N E N T...
  • Page 21 5. Operation 5. Operation 5.5.4.2 Backup Settings 5.6.5.1 Meter Select This section shows the parameters of the backup port. This setting is used to select the meter type based on the actual configuration. Settings Backup Settings 2015-02-23 19 35 NOTE: Select "1Ph Meter"...
  • Page 22 5. Operation 5. Operation 1. Self-Use Mode Logic (Maximize the usage of PV): 2. Feed In Priority Mode Logic (Feed the excess PV to Grid in order to gain subsidies): PV Power Using Priority: Load>Battery>Grid PV Power Using Priority: Load>Grid>Battery Load Support Priority: PV>Battery>Grid Load Support Priority: PV>Battery>Grid Battery Charging Power comes from PV.
  • Page 23 5. Operation 5. Operation 3. Backup Mode Logic 4. Off-Grid Mode Logic (For Off-grid use and AC-Grid Port Disconnected): (Keep the Battery at a certain SOC and only use it during power outage): OverDischg SOC for Off-Grid Setting Range: From Battery “Forcecharge SOC” to 100% Backup SOC Setting Range: From Battery “Overdischarge SOC”...
  • Page 24 5. Operation 5. Operation 5.6.6 STD.Mode Settings These settings are reserved for from Solis technicians. 2. P Mode Settings Do not change anything without instructions. This P Mode Settings include 1 working mode: Selecting “STD Mode. Settings” displays the sub-menu shown below: 1.
  • Page 25 5. Operation 5. Operation 3. Q Mode Settings 3.3 Fixed-PF This Q Mode Settings include 5 working modes: Description: Inverter will output power with fixed power factor. 1. Disable 2. Volt-Var 3. Fixed-PF 4. Reac-Power 5.P-factor. Setting Range: -0.8 to +0.8 Default value is PF = 1 3.1 Disable Fixed-PF...
  • Page 26 5. Operation 5. Operation 3.5 P-Factor (Not Required) 3. Q Mode Settings Description: Inverter will change power factor based on changing output power. This Q Mode Settings include 5 working modes: Note: This Setting is NOT required by UL1741SA Standards. 1.
  • Page 27 5. Operation 5. Operation Default Settings for Rule21 Standard: Q1: (0-60%) Default +30% Q4: (-60%-0%) Default -30% under-excited under-excited Rated 240V Grid V1:(192-264V) Default 220.8V V2: (192-264V) Default 232.1V V3:(240-288V) Default 248.0V V4: (240-288V) Default 256.8V Rated 208V Grid -1,0 V1:(166-229V) Default 191V V2: (166-229V) Default 201V -0,2...
  • Page 28 5. Operation 5. Operation 5.6.6.2 Ramp Rate Limit 5.6.6.4 10mins Voltage Set This function is used for changing power ramp up rate. This function is disabled andnot used for the US. When the inverter initializes or string MPPT changes, the ramp up rate is limited. NOTE: The default setting is stop (disable).
  • Page 29 5. Operation 5. Operation 5.6.6.7 P3Tau Settings 5.6.7 Software Update The software update includes the HMI and DSP. Corresponding firmware version P3Tau Settings 2015-02-23 19 35 can be checked in this setting. Press “ENT” to enter the upgrading mode. Settings Software Update 2015-02-23 19 35 P3Tau:...
  • Page 30 5. Operation 5. Operation 5.6.8.1 Backflow Power 5.6.8.3 FailSafe ON/OFF Determine the allowed backflow power. (System export to the grid) When this Failsafe function is ON, the inverter will shutdown once it loses communication with the meter in case of any backflow power exceeds the limit. Settings Backflow Power 2015-02-23 19 35...

  • Page 31: Commissioning

    6. Commissioning 5. Operation 5.6.10 Reset Password Reset Password: In this menu, user can reset the inverter password, but the admin TotalEnergy password is always valid. Adjusting total generating power Total Energy: 00000 2015-02-23 19 35 Settings Reset Password 2015-02-23 19 35 Please Input New Password Y E S = <...

  • Page 32: Preparation Of Commissioning

    6. Commissioning 5. Operation 6.1 Preparation of Commissioning AFCI Set: Ensure all the devices are accessible for operation, maintenance, and service. Check and confirm that the inverter is firmly installed. Turn ON/OFF the AFCI function of the inverter. For US, the AFCI function is turned on Space for ventilation is sufficient for one inverter or multiple inverters.

  • Page 33: Troubleshooting

    7. Troubleshooting 7. Troubleshooting Solis RHI Series inverter does not require any regular maintenance. However, cleaning the When faults occur, the “Fault” state will be shown on the home page. Follow the steps below to determine which fault has occurred. heatsink will help the inverter dissipate heat and increase the lifetime of inverter.
  • Page 34 7. Troubleshooting 7. Troubleshooting Step3: Press DOWN to select Alarm Message, then press ENTER. Alarm Message Failure description Solution 1. Check if there is an arc in the PV Settings Advanced Information ARC-FAULT ARC detected in DC circuit 2015-02-23 19 35 connection and restart inverter.
  • Page 35 7. Troubleshooting 7. Troubleshooting Alarm Message Failure description Alarm Message Failure description Solution Solution 1. Check inverter inductor connection. OV-DC01/02/03/04 Over DC voltage 1. Reduce the module number in series. UN-BUS01/02 Under DC bus voltage 2. Check driver connection. 1. Restart inverter. Under grid frequency UN-G-F01/02 1.
  • Page 36 8. Specifications 8. Specifications Output AC(Grid side) Technical Data RHI-1P5K-HVES-5G RHI-1P7.6K-HVES-5G Input DC (PV side) Rated output power 7.6kW Recommended max. PV power Max. apparent output power 7000W 10600W 5kVA 7.6kVA Max. input voltage Operation phase 500V 1Ф/PE Rated voltage 330V Rated grid voltage 208V / 240 V...
  • Page 37 8. Specifications 8. Specifications General data Technical Data RHI-1P10K-HVES-5G Dimensions(W/H/D) Input DC (PV side) 20.2*28.1*8.18 in (539*717*250 mm) Weight 66.1 lbs (30 kg) Recommended max. PV power 14000W Topology Transformerless Max. input voltage 500V Operation temperature range -25~+60 ℃/-13~+140 ℉ Rated voltage 330V Ingress protection...
  • Page 38 8. Specifications 8. Specifications Output AC(Grid side) General data Rated output power Dimensions(W/H/D) 10kW 20.2*28.1*8.18 in (539*717*250 mm) Max. apparent output power Weight 66.1 lbs (30 kg) 10kVA Operation phase Topology Transformerless 1Ф/PE Rated grid voltage 208V / 240 V Operation temperature range -25~+60 ℃/-13~+140 ℉...
