ASSEMBLY, CARE & USE MANUAL
WARNING & SAFETY INFORMATION
PROPANE SMOKER MODEL 20051011
THIS PRODUCT IS FOR OUTDOOR USE ONLY

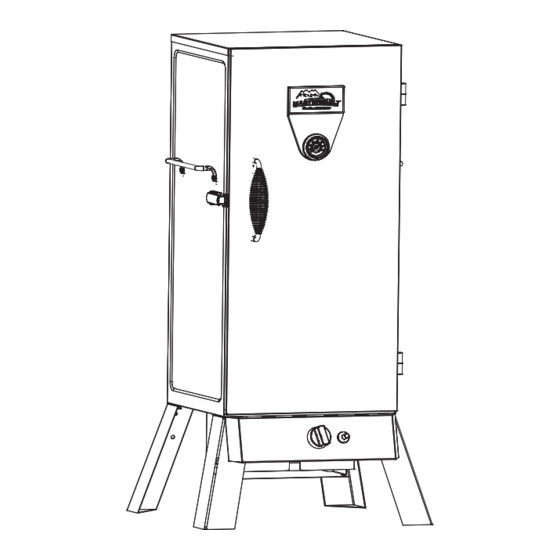

*Actual product may differ from picture shown
Tools needed for assembly: Adjustable Wrench, Phillips Head Screwdriver
CARBON MONOXIDE HAZARD
WARNING
This manual contains important
Burning wood chips gives off carbon
information necessary for the proper assembly
monoxide, which has no odor and can cause death.
and safe use of the appliance.
DO NOT burn wood chips inside homes,
Read and follow all warnings and
vehicles, tents, garages or any enclosed areas.
instructions before assembling and using
the appliance.
Use only outdoors where it is
well ventilated.
Follow all warnings and instructions when
using the appliance.
Keep this manual for future reference.
Failure to follow these warnings and instructions properly could result in fi re or explosion, which
could cause property damage, personal injury, or death.
