F&F BIS-413 Quick Start Manual

Konstantynowska 79/81 95-200 Pabianice
phone/fax: (+48 42) 215 23 83 / 227 09 71 POLAND
http://www.fif.com.pl e-mail: fif@fif.com.pl
ELECTRONIC BI-STABILE PULSE RELAY
with timing switch
WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealer or directly with us. More informa-
tion how to make a compliant can be
found on the website:
www.fif.com.pl/reklamacje 5 9 0 8 3 1 2
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the
occasion of the purchase of new equipment (in accordance with the principle
of old-for-new, regardless of brand). Electro thrown in the trash or abandoned
in nature, pose a threat to the environment and human health.

PURPOSE

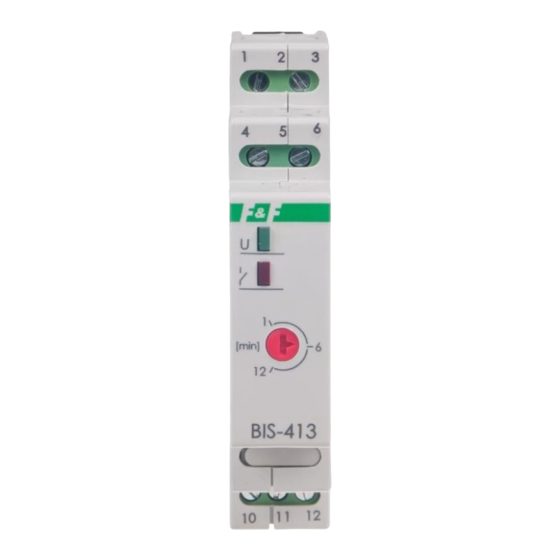

Electronic bi-stable pulse relays BIS-413 24V enables the user to
actuate lighting or other devices from various locations by means
of control buttons in parallel connection.
L N
BIS
N
- 1 -
ATTENTION!
The BIS-413 24V is not compatible with bell pushes equipped with
fluorescent lamps.

TECHNICAL DATA

power supply
contact / load current AC-1 separated 1×NO/NC / <16A
control pulse
delay of response
backup time clock operation - adjustable
power indication
signalling of activation
power consumption
standby
on
working temperature
terminal
tightening torque
dimensions
mounting
ingress protection

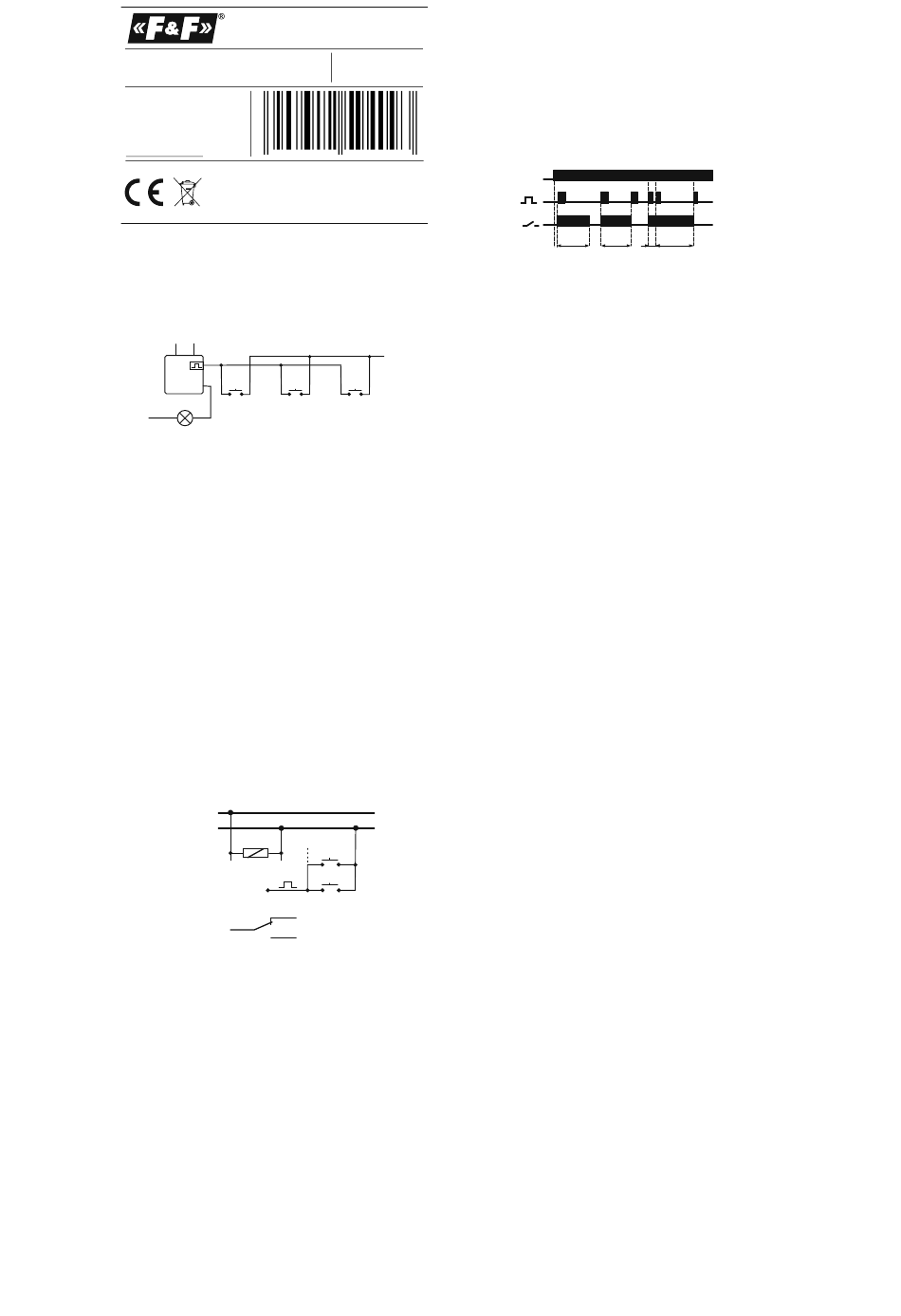

WIRING DIAGRAM

~/–
~/+
1
3
6
11
- 3 -
C130115/160126
F&F Filipowski sp. j.
BIS-413
24V
5 9 4 0 9 3
N/L
9÷30V AC/DC
9÷30V AC/DC
0.1÷0.2sec
1÷12min.
green LED
red LED
0.15W
0.6W
-25÷50°C
2
2.5mm screw terminals
0.4Nm
1 module (18mm)
on the TH-35 rail
IP20
10
12

FUNCTIONING

The activation of relay is to sign by shine of green LED Connection
the receiver - is to sign by shine of red led - by means of a current
pulse triggered by pushing any bell push connected to the relay.
The relay contact is connect to position 11-12. The receiver is
deactivated by another pulse or after a preset time (contact
return to position 11-10). Pressing the starting button twice
within up to one second turns on continuous lighting mode until
another pulse has been sent to deactivate the relay.
U
t
t>
<1sec
t - time switch OFF

ASSEMBLY

1. Turn OFF the power.
2. Put on the relay on the rail in the switchgear box.
3. Connect the power cable to contact 1-3 with marks.
4. The timers switching which are connect in parallel connect to
contact 6 and to cable which is connect to contact 3.
5. The activated receiver connect in series to contact 11-12.
- 2 -
t<
