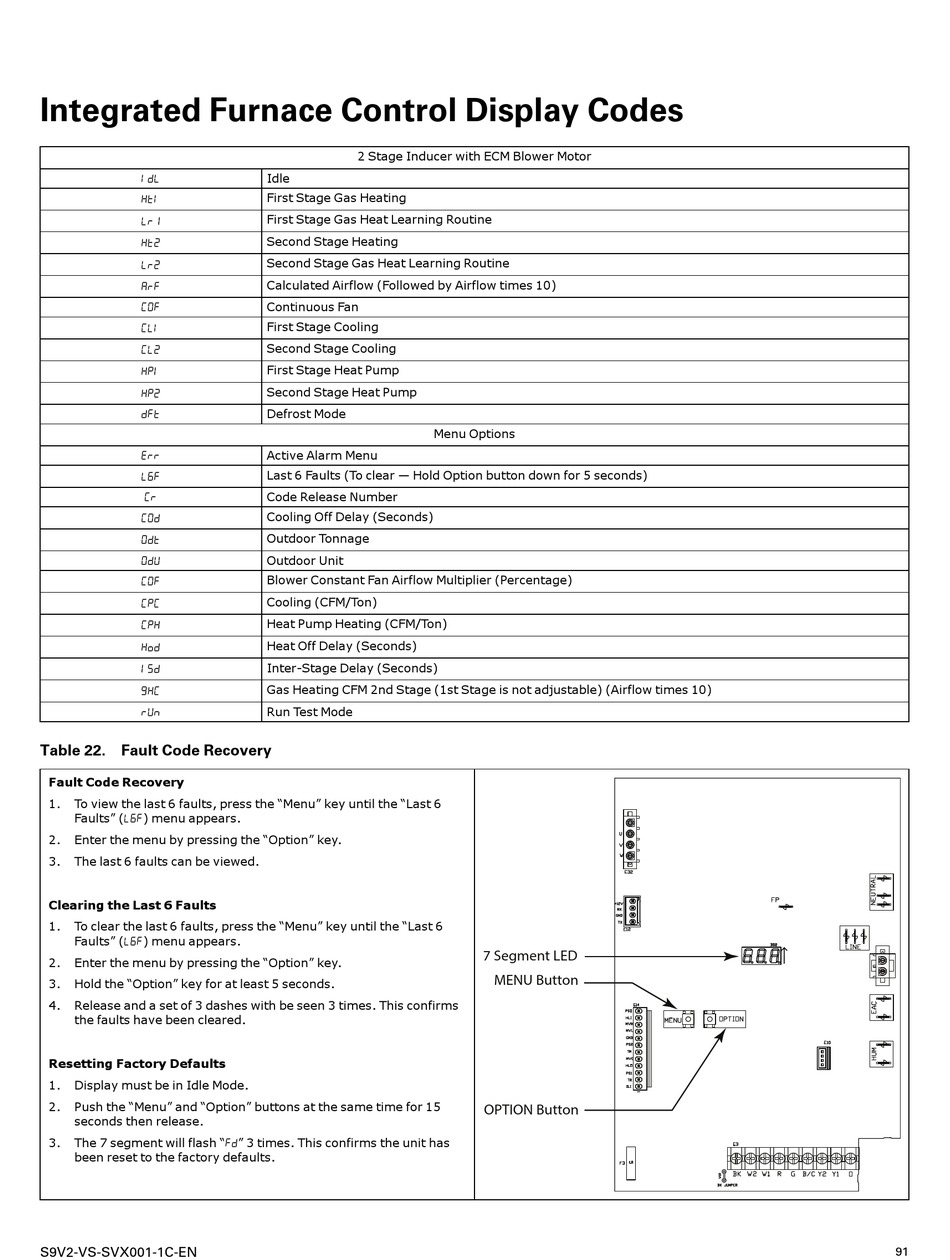

Integrated Furnace Control Display Codes
IdL
XtI
Lr1
Xt2
Lr2
aRF
C0F
CLI
CL2
Xp!
Xp2
dFt
err
L6F
Cr
C0d
0dt
0du
COF
CpC
CpH
Xod
!sd
gXC
run
Table 22. Fault Code Recovery
Fault Code Recovery
1.
To view the last 6 faults, press the "Menu" key until the "Last 6
Faults" (L6F) menu appears.
2.
Enter the menu by pressing the "Option" key.
3.
The last 6 faults can be viewed.
Clearing the Last 6 Faults
1.
To clear the last 6 faults, press the "Menu" key until the "Last 6
Faults" (L6F) menu appears.
2.
Enter the menu by pressing the "Option" key.
3.
Hold the "Option" key for at least 5 seconds.
4.
Release and a set of 3 dashes with be seen 3 times. This confirms
the faults have been cleared.
Resetting Factory Defaults
1.
Display must be in Idle Mode.
2.
Push the "Menu" and "Option" buttons at the same time for 15
seconds then release.
3.
The 7 segment will flash "FD" 3 times. This confirms the unit has
been reset to the factory defaults.
S9V2-VS-SVX001-1C-EN
2 Stage Inducer with ECM Blower Motor
Idle
First Stage Gas Heating
First Stage Gas Heat Learning Routine
Second Stage Heating
Second Stage Gas Heat Learning Routine
Calculated Airflow (Followed by Airflow times 10)
Continuous Fan
First Stage Cooling
Second Stage Cooling
First Stage Heat Pump
Second Stage Heat Pump
Defrost Mode
Menu Options
Active Alarm Menu
Last 6 Faults (To clear — Hold Option button down for 5 seconds)
Code Release Number
Cooling Off Delay (Seconds)
Outdoor Tonnage
Outdoor Unit
Blower Constant Fan Airflow Multiplier (Percentage)
Cooling (CFM/Ton)
Heat Pump Heating (CFM/Ton)
Heat Off Delay (Seconds)
Inter-Stage Delay (Seconds)
Gas Heating CFM 2nd Stage (1st Stage is not adjustable) (Airflow times 10)
Run Test Mode
