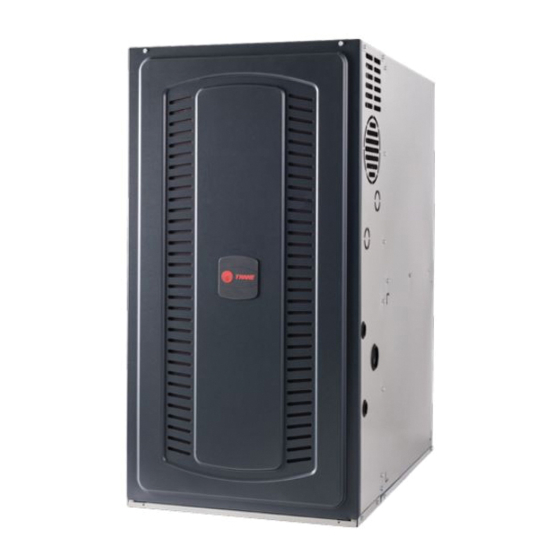

Trane S8B1B080M4PSBA Service Facts

Upflow/downflow/horizontal gas-fired, 1–stage and 2–stage induced draft furnaces with high efficiency motor
Hide thumbs Also See for S8B1B080M4PSBA:

Advertisement

Quick Links

Download this manual
Service Facts
Upflow/Downflow/Horizontal
Gas-Fired, 1–Stage and 2–Stage Induced Draft Furnaces with
High Efficiency Motor
U U p p f f l l o o w w , , D D o o w w n n f f l l o o w w , , H H o o r r i i z z o o n n t t a a l l R R i i g g h h t t / / L L e e f f t t
Single Stage
S8B1B080M4PSBA
S8X1B080M4PSBA
S8B1D120M5PSBA
S8X1D120M5PSBA
N N o o t t e e : : Models may have a "T" in the 12th digit designating they meet California
less than 40 ng/J (NOx) emissions requirements.
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning
equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person
could result in death or serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that
are attached to the equipment.
November 2020
Two Stage
S8X2B080M4PSBA
S8X2D120M5PSBA
S S A A F F E E T T Y Y W W A A R R N N I I N N G G
S S 8 8 X X B B - - S S F F - - 2 2 B B - - E E N N
S8X1
S8B1
N N o o t t e e : : Graphics in this document are for
representation only. Actual model may
differ in appearance.
S8X2
