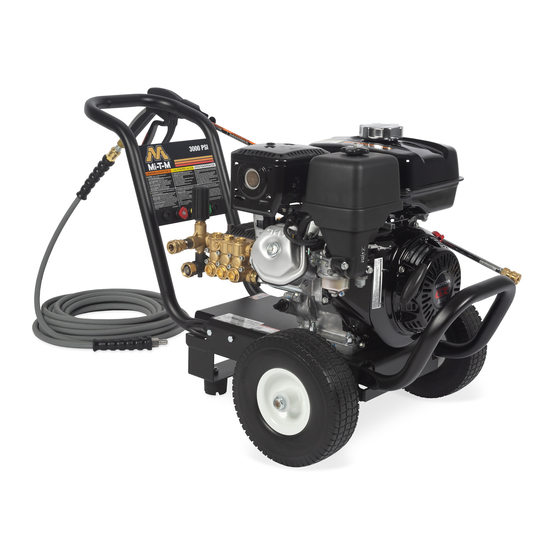

- Page 1 JP-SERIES OPERATION MANUAL COLD WATER DIRECT DRIVEN PRESSURE WASHER CAUTION RISK OF INJURY! READ MANUAL BEFORE OPERATING! This manual is an important part of the pressure washer and must remain with this unit!
- Page 2 Job Pro pressure washer. The contents of this manual are based on the latest product information available at the time of publication. Mi-T-M reserves the right to make changes in price, color, materials, equipment, specifications ®...
-
Page 3: Important Safety Warnings
important safety warnings fire & ventilation precautions: . This unit was designed for outdoor use only. NEVER operate this unit in an enclosed area. ALwAYS make certain there is adequate air (oxygen) for combustion as well as ventilation to prevent the presence of poisonous carbon monoxide gases. -
Page 4: Risk Of Injection Or Severe Cutting Injury
important safety warnings spray precautions: danger RIsk Of INjECTION OR sEvERE CUTTING INjURy! Keep clear of nozzle! do not direct discHarge stream at persons or pets! only trained operators sHould use tHis product. wHen operating tHis unit, basic precautions sHould always be observed including tHe following: . - Page 5 2. KNOW YOUR DETERGENTS! Be prepared to tell a physician exactly what you are using in the event of an emergency. Read the Material Safety Data Sheet (MSDS) provided with your Mi-T-M Detergent and all detergent labels. Follow all appropriate instructions regarding preparation use, safety and transportation.
- Page 6 . NEVER alter or modify the equipment, be sure any accessory items and system components being used will withstand the pressure developed. Use ONLY genuine Mi-T-M parts for repair of your pressure washer. Failure to do so can cause hazardous operating conditions and will void warranty.
- Page 7 features features listing . Detergent Hose (Option) 0. Adjustable Unloader Knob 2. Detergent Strainer (Option) . Pump 3. water Inlet 2. Oil Sight Glass 4. water Inlet Strainer 3. Decal- warning/Caution/Operation 5. water Outlet 4. High Pressure Discharge Hose 6. Thermal Relief Valve 5.
- Page 8 safety decals & placement for jp-series. !!!DO NOT REmOvE sAfETy DECAls fROm UNIT UNlEss REplACING WITh mOsT CURRENT sAfETy DECAl!!! refer to page 8 for placement Decal: Caution-Engine Fuel (Part #34-0599) CAUTION RISK OF FIRE Do not add fuel when product is operating.
-
Page 9: Installation And Preparation
5. Once properly installed, check the oil sight glass on the pump crankcase. Make certain the oil level is in the center of the sight glass before each use. risK of aspHyXiation! If the level appears low, use Mi-T-M pump oil #Aw-4085-006. DO NOT -do not operate in an OVERFILL! enclosed area. - Page 10 installation & preparation WARNING nozzle review: risK of injection causing Various nozzles may be quick-connected into the end of the wand to change the severe injury! spray pattern or use the detergent feature. when using Quick Connects (Q.C.), never looK directly at tHe be certain the connection is securely locked.
- Page 11 Using a screw driver, remove the screen from the water inlet. b. Clean or replace with Mi-T-M #9-000 if necessary. 3. Connect the hoses: a. Connect one end of the water supply hose to the water inlet of the unit.
- Page 12 installation & preparation pre-start inspection procedures: Before starting the unit, perform the following procedures: . Check the oil level in the pump and engine. 2. Inspect the water inlet strainer. Clean or replace if necessary. See “water Supply”, #2, pg. 2. 3.
- Page 13 operating instructions priming tHe pump: . It is essential to prime the pump on initial start-up and each time the water supply is disconnected from the unit after initial use. 2. Lay the high pressure discharge hose out to remove any loops. Water flow will constrict the hose, creating tight loops if the hose is not straight.
- Page 14 operating instructions cLEANING WITH DETERGENTS (OPTION AW-8400-0021): . Refer to “Detergent Cleaning Precautions” pg. 6 before working with detergents. Be certain to wear protective safety attire as stated on pg. 2. Prepare detergent solution according to label directions. Never pump acids, alkaline, abrasive fluids or solvents through the unit.
-
Page 15: Storage And Maintenance
3 months or 250 hour intervals. If oil appears dirty or milky, changes may be required at a greater frequency. Use Mi-T-M pump oil #AW-4085-0016 and fill only to the center of the oil sight glass. DO NOT OVERFILL! NOZZLES: water flow through the spray nozzle will erode the orifice, making it larger, resulting in a pressure loss. - Page 16 If you must store your unit in an area where the temperature may fall below 32°F, you can protect your unit by following the procedure outlined below. . Gather the following items: a. Two 5 gallon containers. b. One gallon of antifreeze. (Mi-T-M recommends an environmentally 32˚F 0˚C safe antifreeze.) c.
-
Page 17: Troubleshooting
Change pump oil. Fill to proper level. Oil leaking from unit. DO NOT USE!!!!! Contact Mi-T-M Customer Service. Detergent will not siphon into Detergent strainer is not completely Check, submerge if necessary. Low Pressure Detergent mode. submerged in detergent solution. - Page 18 Detergent Injector *PSI and GPM must be specified when ordering. Mi-T-M All Purpose Cleaner, Paint Surface Prep, House and Deck wash and Heavy Duty Degreaser are specially formulated detergents for use with all Mi-T-M pressure washers and are packaged in one (1), five (5) and fifty-five (55) gallon containers.
