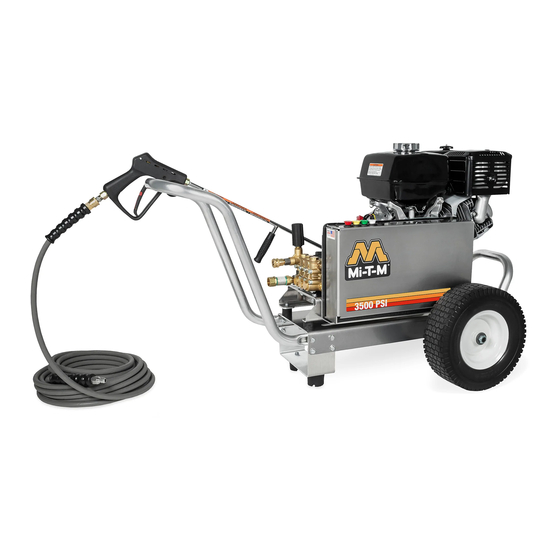

CBA-SERIES
OPERATION MANUAL COLD WATER
BELT DRIVEN PRESSURE WASHER
CAUTION
RISK OF INJURY!
READ MANUAL BEFORE OPERATING!
This manual is an important part of the pressure washer and must remain with this unit!
Copyright 2006, Mi-T-M Corporation
Operator's Manual
Form #37-0857-E/S-0040


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBA-SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mi-T-M CBA-SERIES

  • Page 1 OPERATION MANUAL COLD WATER BELT DRIVEN PRESSURE WASHER CAUTION RISK OF INJURY! READ MANUAL BEFORE OPERATING! This manual is an important part of the pressure washer and must remain with this unit! Copyright 2006, Mi-T-M Corporation Operator’s Manual Form #37-0857-E/S-0040...
  • Page 2: Table Of Contents

    table of contents introduction ........................3 important safety warnings................4-7 FIRE & VENTILATION PRECAUTIONS ..............4 SPRAY PRECAUTIONS ..................5 MISCELLANEOUS SAFETY PRECAUTIONS ............6 ADJUSTMENT PRECAUTIONS ................7 features drawing ......................8 safety decals ......................9 installation & preparation ................10-13 ATTIRE ........................0 SETUP .........................0 ENGINE FUEL TANK ..................0 QUICK CONNECT NOZZLES ................ NOZZLE CONNECTION .................. WATER SUPPLY ....................2...
  • Page 3: Introduction

    Inspect for signs of obvious or concealed freight damage. If damage does exist, file a claim with the transportation company immediately. Be sure that all damaged parts are replaced and that the mechanical problems are corrected prior to operation of the unit. If you require service, contact Mi-T-M ®...
  • Page 4: Important Safety Warnings

    important safety warnings fire & ventilation precautions: . This unit was designed for outdoor use only. NEVER operate this unit in an enclosed area. ALWAYS make certain there is adequate air (oxygen) for combustion as well as ventilation to prevent the presence of poisonous carbon monoxide gases.
  • Page 5: Spray Precautions

    important safety warnings spray precautions: danger RIsk Of INjECTION OR sEvERE CUTTING INjURy! Keep clear of nozzle! do not direct discHarge stream at persons or pets! only trained operators sHould use tHis product. wHen operating tHis unit, basic precautions sHould always be observed including tHe following: .
  • Page 6: Miscellaneous Safety Precautions

    important safety warnings miscellaneous safety precautions: . NEVER ALLOW ChILDREN OR ADOLESCENTS TO OPERATE ThIS UNIT! 2. Read and follow all handling, operations, maintenance and safety instructions listed in this manual and the Engine Operator’s manual that accompanies this unit, and provide such information to ANYONE who will be operating this unit.
  • Page 7: Adjustment Precautions

    . NEVER alter or modify the equipment, be sure any accessory items and system components being used will withstand the pressure developed. Use ONLY genuine Mi-T-M parts for repair of your pressure washer. Failure to do so can cause hazardous operating conditions and will void warranty.
  • Page 8: Features Drawing

    features features listing . Engine 7. Adjustable Unloader Knob 2. Pump 8. Oil Sight Glass 3. high Pressure Discharge hose 9. Unloader 4. Quick Connect Nozzle 0. Water Outlet 5. Gun Assembly . Water Inlet 6. Oil Dipstick 2. Thermal Relief Valve Operator’s Manual...
  • Page 9: Safety Decals

    safety decals !!!DO NOT REmOvE sAfETy DECAls fROm UNIT UNlEss REplACING WITh mOsT CURRENT sAfETy DECAl!!! Reference #6 Decal: Caution-Engine Fuel (Part #34-0599) CAUTION/PRECAUCION RISK OF FIRE RIESGO DE FUEGE No ponga combustible cuando Do not add fuel when el producto este en operacion. product is operating.
  • Page 10: Installation & Preparation

    If the level appears to be -do not operate in an low, use Mi-T-M pump oil #AW-4085-006. DO NOT OVERFILL! enclosed area. use tHis product only in well...
  • Page 11: Nozzle Connection

    installation & preparation WARNING nozzle review: risK of injection causing severe injury! Various nozzles may be quick-connected into the end of the wand to change never looK directly at tHe the spray pattern. When using Quick Connects (Q.C.), be certain the nozzle orifice unless it connection is securely locked.
  • Page 12: Water Supply

    installation & preparation water supply: cHecK water inlet strainer . Select a water supply hose which is a quality grade of garden hose measuring at least 3/4” ID and no longer than 50 feet. Check the see-through water filter to ensure it is clean and free of any obstructions.
  • Page 13: Pre-Start Inspection Procedures

    installation & preparation pre-start inspection procedures: Before starting the unit, perform the following procedures: . Check the oil level in the pump and engine. 2. Inspect the water inlet strainer. Clean or replace if necessary. See “Water Supply”, #2, pg. 2. 3.
  • Page 14: Operating Instructions

    operating instructions priming tHe pump: CAUTION . It is essential to prime the pump on initial start-up and each time the water supply is disconnected from the unit after initial use. risK of unit damage. 2. Lay the high pressure hose out to remove any loops. Water flow will constrict be certain tHe nozzle is the hose, creating tight loops if the hose is not straight.
  • Page 15: Shutdown

    3 months or 250 hour intervals. If oil appears dirty or milky, changes may be required at a greater frequency. Use Mi-T-M pump oil AW-4085-0016 and fill only to the center of the oil sight glass. DO NOT OVERFILL! NOZZLES: Water flow through the spray nozzle will erode the orifice, making it larger, resulting in a pressure loss.
  • Page 16: Winterizing

    . Gather the following items: a. Two 5 gallon containers. 32˚F 0˚C b. One gallon of antifreeze. (Mi-T-M ® recommends an environmentally safe antifreeze.) c. Water supply. d. Three foot hose, 1/2-3/4 I.D. with a 3/4 inch male garden hose fitting.
  • Page 17: Troubleshooting

    troublesHooting SYMPTOM PROBABLE CAUSE REMEDY Engine will not start. Various engine problems. Refer to the Engine Manual accompanying your unit. Unit components are frozen. Allow to thaw. If any part of the unit becomes frozen; excessive pressure may build up in the unit which could cause the unit to burst resulting in possible serious injury to the operator or bystanders.
  • Page 18: Accessories

    Mi-T-M All-Purpose Cleaner, Paint Surface Prep, House & Deck Wash, and Heavy Duty Degreaser are specially formulated detergents for use with all Mi-T-M pressure washers and are packaged in One (), Five (5), and Fifty-Five (55) Gallon containers. Contact Customer Service Department at 800-228-672 for more information.
  • Page 19: Statement Of Warranty

    Failure to follow recommended operating and maintenance procedures also voids warranty. 4. The use of other than Genuine Mi-T-M Repair Parts will void warranty. Parts returned, prepaid to our factory or to an Authorized Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty.
