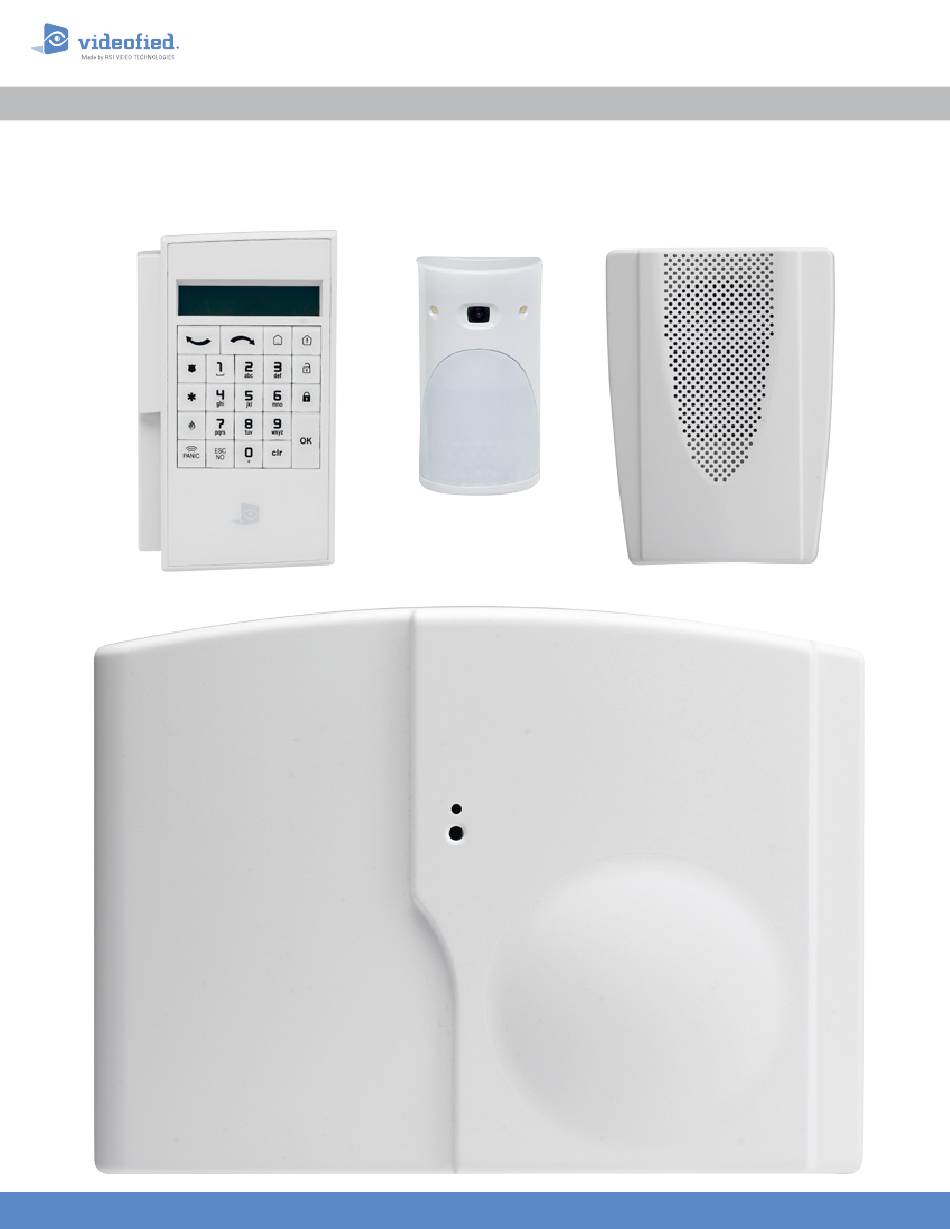

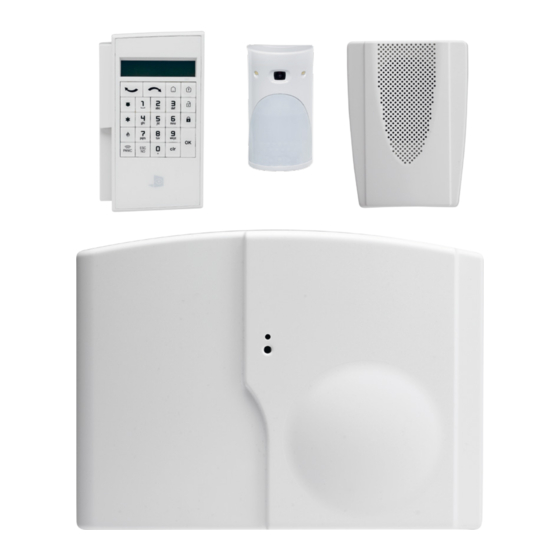

- Page 1 XV-iP 210 GPRS Control Panel I N S T A L L A T I O N M A N U A L Doc. - Ref. 230-XV-iP Last modification date : June 2014 Firmware version : XLP.04.04.05.XXX and later www.videofied.com...
-
Page 2: Introduction
Technology ® The XV-iP alarm panel, like all Videofied devices, uses the S2View patented technology. Which is an interactive wireless and AES encrypted technology ensuring signal integrity and optimal security. The reliability of the signal is guaranteed thanks to the two-way radio frequency transmissions with all the ®... -
Page 3: Table Of Contents
4.5 Delete the keypad or any other device..................19 4.6 Read the event log........................20 4.7 Programmable inputs and outputs....................20 4.8 Golden rules..........................21 5. Ethernet parameters....................6. Transmitted events list ..................... 7. 2G3G error codes....24 ................... 8. Technical specification and security notes ............www.videofied.com... -
Page 4: Xv-Ip Panel Setup
1.2 SIM Card Installation Before removing the front cover from its box, put the SIM card on the plastic base (take care to respect the right direction). DO NOT insert or remove the SIM card while the panel is powered. www.videofied.com... -
Page 5: Panel Mounting
I N S T A L L A T I O N M A N U A L 1.3 Panel Mounting Bracket holes Fix the back casing on the wall using the three mounting holes as shown Mounting the panel is not required for programming. www.videofied.com... -
Page 6: Powering And Initialization
Insert all 3 LS14500 Lithium batteries into the keypad. • Do not mount the keypad. It will displays one of the following screens: RSI (c) 2013 <=========XX=========> videofied.com • Press on both ESC NO keys at the same time and release. The indicator LED on the keypad will blink rapidly. -
Page 7: Xv-Ip Panel Programming
OK or YES There is no back door or Default codes to the system. Please refer to the restriction rule for codes (Chapter 4.4). CONFIRM CODE Some codes are already used by default and therefore cannot be used. OK or YES www.videofied.com... - Page 8 13/10/14 10:47 ENTRY COMPLETE ! CONNECTED TO MONITOR. STATION? OK or YES Use the Alphanumeric Keypad to enter in a 4-8 digit ACCOUNT NUMBER : account number provided by the Central Station. ACCOUNT NUMBER : 567001 OK or YES www.videofied.com...
- Page 9 Events list NOT TRANSMITTED: event is not transmitted, however it will appear on the keypad. Please liaise with your Monitoring Station to ensure that the requested events to transmit are correctly set. SERVER ADDRESSES ? OK or YES www.videofied.com...
- Page 10 The 2G3G level test can last several minutes. Do not interrupt the test or remove the SIM 2G3G LEVEL ? card during the test. IMPORTANT : Videofied will require a 3/5 grade or better for reliable transmission of Video alarms. www.videofied.com...
-
Page 11: Ethernet Parameters Configuration
ETHERNET OFF NO STATUS : the PANEL IP Ethernet module is switched off. Please XXX.XXX.XXX.XXX verify that the Ethernet cable is connected and try again. • NETWORK/CABLE MISSNG : the panel doesn’t detect Ethernet Cable or Network. ETH. STATUS? www.videofied.com... - Page 12 7 for further details). Each system can embrace a maximum of 25 devices, Remote keypad included. ENTERING A NEW DEVICE ? Press OK or YES to enter a new device or ESC NO move to the next step. www.videofied.com...
- Page 13 Each device must be closed and its LED indicator shall be turned off. SYSTEM CHECK After this first configuration, do not hesitate to report on the Synoptics menu to have more visibility on all IN PROGRESS functionalities. INSTALLATION SUCCESSFUL ! www.videofied.com...
-
Page 14: Tp200 Speakerphone Installation
The two way voice communication is full duplex. After the voice challenge, it is important for the operator to switch off his microphone and to deactivate his speaker when listening in. This will limit the risks of Larsen effect, sound saturation or other echo canceling related problems. www.videofied.com... -
Page 15: Xv-Ip Features Guide
OK or YES ( XMB model only) and press OK or YES and press OK or YES With remote Present your badge on badge reader the badge reader BR250 With remote Press Press keyfob www.videofied.com... -
Page 16: Arming And Siren Mode Configuration
(by default : all opening contacts with external access*) * You can set your devices as : External, Perimeter, ou External +Perimeter. Please go to the menu: CONFIGURATION (LVL 4) -> AREAS AND DEVICES -> DEVICES -> DEVICES CONFIGURATION -> DEVICE TYPE www.videofied.com... -
Page 17: Manage Badges And Access Codes
After 1 min of no use of the keypad and no tests running, the display returns to the standby display and LVL1. • When standby display, if the ESC NO key is held during 5s, the level is changed to LVL1. www.videofied.com... - Page 18 All user codes +2 The -1 and -2 codes (0998 et 0999) are as panic/duress codes. reserved to prevent conflicts when creating a All user codes -1 A total of 186 codes are forbidden. new user code. All user codes -2 www.videofied.com...
-
Page 19: Delete The Keypad Or Any Other Device
OK or YES A1 : KEYPAD KEYPAD 1 OK or YES DELETE OK or YES < = = = = XX = = = = > You can now remove the batteries from the device www.videofied.com... -
Page 20: Read The Event Log
The XV-iP control panel has 2 programmable inputs and 1 programmable outputs. Please note that we advise to connect the panels to a power supply when using programmable inputs. These functions allow the linking of Videofied ® security systems to auxiliary equipment such as panic buttons, pepper spray, smoke generator, hard-wired door contact, light curtain, etc. -
Page 21: Golden Rules
LCD screen goes dark after 30 seconds of inactivity, press an Registration of up to 25 devices (including the keypad). arrow or numeric key to light it up. Use only batteries provided by Videofied (siren : Alkaline Respect indoor infrared devices installation height (2m10 to 2m30). batteries). -
Page 22: Ethernet Parameters
PING reply, Time Out Server, Max Seg. Size: • PING REPLY: Enables ping response. • Time Out Server: In case of disconnection to the local Network, the panel will try after that time to re-connect. • Max Seg. Size: Maximum size of packet sent. www.videofied.com... -
Page 23: Transmitted Events List
After initial programming, using a remote keypad : Use the arrows to access : CONFIGURATION (level 4) > CONFIGURATION MONITOR. STATION > MONITORING PARAMETERS > EVENT TRANS. MODIFICATION Then use the arrows to determine the event to modify. Press OK or YES to edit. www.videofied.com... -
Page 24: G3G Error Codes
Insufficient GPRS Network: When the panel is unable to find any signal, proceed to GPRS level test in another location on site. You can also find the network state or condition of use by directly contacting your local operator. www.videofied.com... -
Page 25: Technical Specification And Security Notes
NF C 48-212:2004 NF EN50130-4:1995; A1:1998; A2:2003 NF EN50130-5: 1998 Class II EMEA SALES North American Headquarters 1375 Willow Lake Blvd, Suite 103 23, avenue du Général Leclerc Vadnais Heights, MN 55110 92340 BOURG-LA-REINE FRANCE E-Mail : usasales@rsivideotech.com E-Mail : emeasales@rsivideotech.com www.videofied.com...
