Summary of Contents for Videofied DSC PC1616 Series

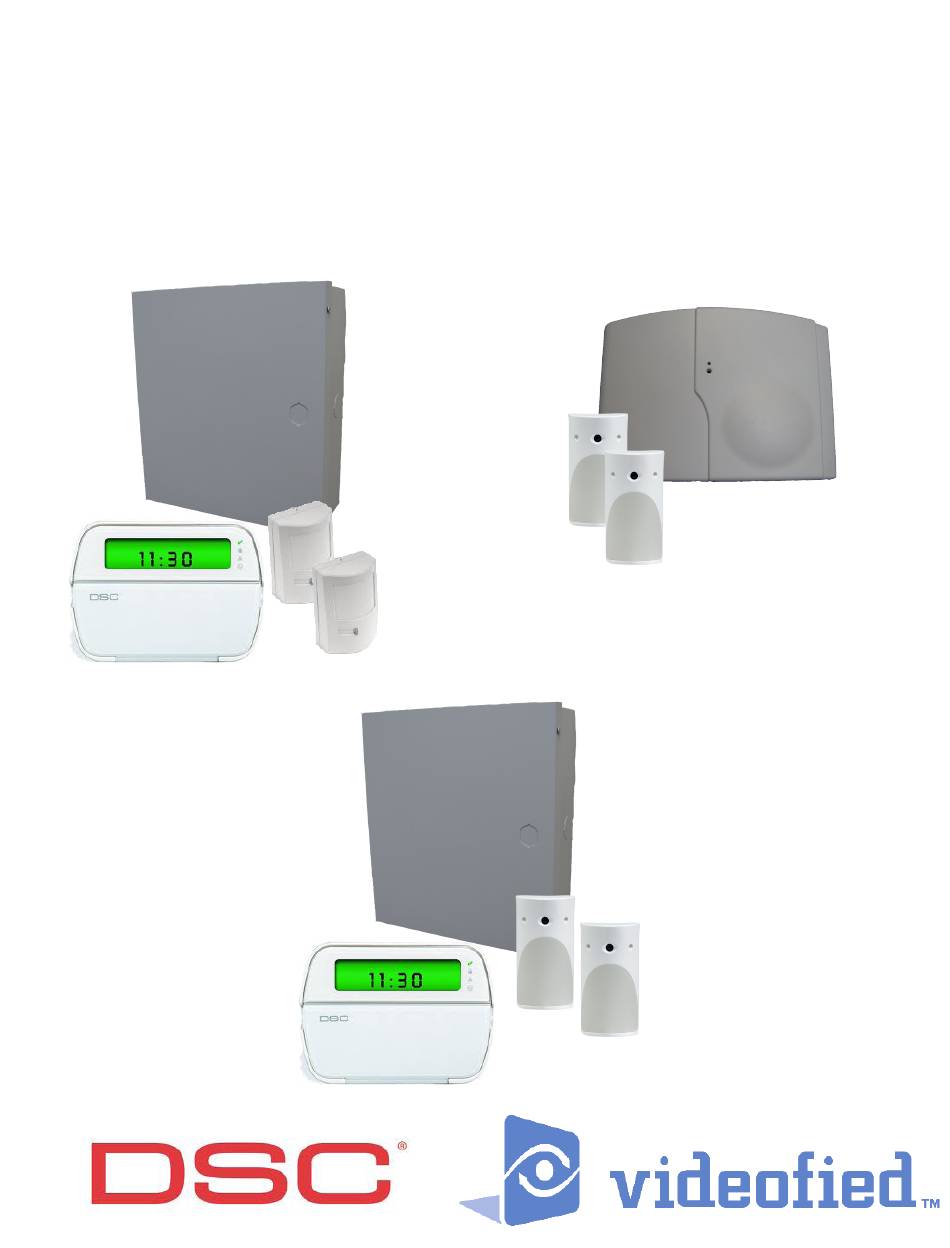

- Page 1 Videofied Upgrade With DSC PC1616...
- Page 2 February 2013 Introduction: This document explains how to upgrade a DSC PC1616 control panel with Videofied Video Verification and interactivity. The DSC PC1616 control panel upgrade requires two 12V SPDT (single pull double throw) relays. This document covers basic relay module configuration in addition to more detailed output function configuration.
-
Page 3: Enter Installer / Programming Mode
P R O D U C T A P P L I C A T I O N N O T E STEP 2 - Wire and configure DSC PC1616 Open Collector Output Connect one SPDT Relay Module to the DSC PC1616 Series Control Panel DSC PC1616 Terminal strip... - Page 4 Videofied Upgrade - DSC PC1616 P R O D U C T A P P L I C A T I O N N O T E Wiring Diagram - DSC PC1616 to Videofied Panel Videofied Panel Terminal Strip DSC PC1616 Terminal strip Prog.
- Page 5 Videofied Upgrade - DSC PC1616 P R O D U C T A P P L I C A T I O N N O T E PROGRAMMABLE INPUTS Using the RIGHT ARROW go to PROGRAMMABLE INPUTS and press YES...
- Page 6 8 then installer code Enter section of “009” Enter 01 to configure PGM 1 - 01 = Trigger on Fire and Burglary Enter # # to exit Wiring Diagram - Using a Videofied Programmable Input Videofied Panel Terminal Strip DSC PC1616 Terminal strip Prog.
- Page 7 OBJECTIVE: Configure any burglary condition on the DSC PC1616 control panel to create a burglary condition on the Videofied panel and to report an intrusion signal to the central station with a video from MotionViewer 1 Videofied Programmable Input Configuration -...
