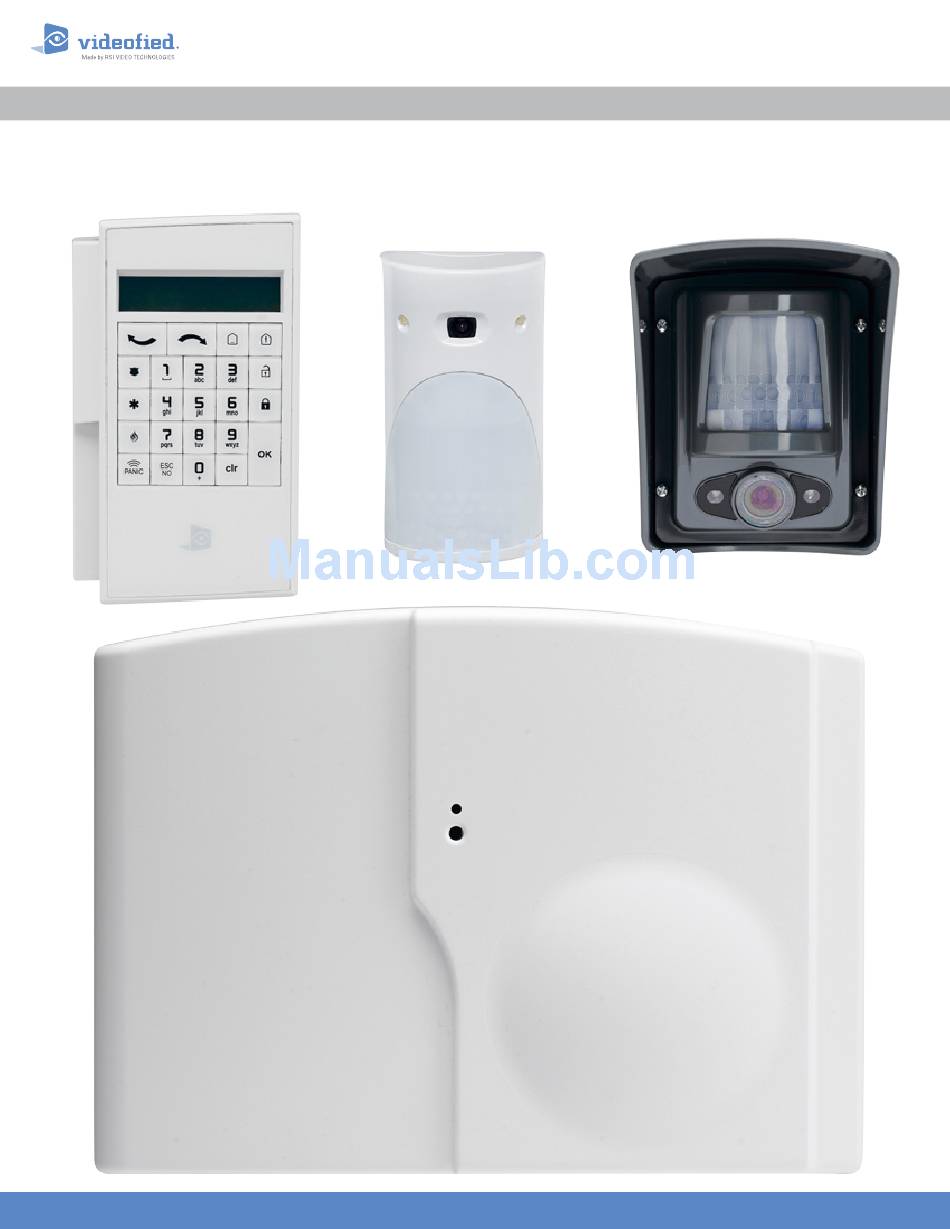

- Page 1 XT-iP 210/620/730 GPRS Control Panel I N S T A L L M A N U A L Doc. - Ref. 230-XT-iP Last modification date : June 2014 Firmware version : XLP.04.04.05.XXX and later www.videofied.com...
-
Page 2: Introduction

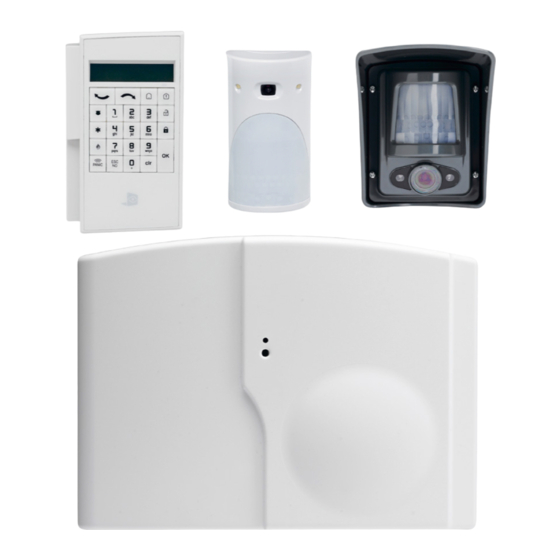

The XT-iP is a fully wireless alarm system. It can be powered by standalone batteries or connected to a power supply. This panel is intended mainly for residential and commercial markets. With the Motion Viewers™ and Videofied ® range of products, the XT-IP panel provides video verification in case of intrusion. -
Page 3: Table Of Contents
4.5 Delete the keypad or any other device..................20 4.6 Read the event log........................21 4.7 Programmable inputs and outputs....................21 4.8 Golden rules..........................22 5. Ethernet parameters....................6. Transmitted events list ..................... 7. 2G3G error codes....25 ................... 8. Technical specification and security notes ............www.videofied.com... -
Page 4: Xt-Ip Panel Setup
1.2 SIM Card Installation Before removing the front cover from its box, put the SIM card on the plastic base (take care to respect the right orientation). DO NOT insert or remove the SIM card while the panel is powered. www.videofied.com... -
Page 5: Panel Mounting
I N S T A L L M A N U A L 1.3 Panel mounting Bracket holes Fix the back casing on the wall using the three mounting holes illustrated above. Mounting the panel is not required for programming. www.videofied.com... -
Page 6: Powering And Initialization
Insert all 3 LS14500 Lithium batteries into the keypad. • Do not mount the keypad. It will displays one of the following screens: RSI (c) 2013 <=========XX=========> videofied.com • Press on both ESC NO keys at the same time and release. The indicator LED on the keypad will blink rapidly. -
Page 7: Xtender Mode
On a programmed panel, you can choose between standalone and XTENDER modes from the menu : *When using XT-iP XTENDER mode, the panel has to CONFIGURATION (LVL 4) > GENERAL PARAMETERS > XTENDER be powered by the mains power supply. www.videofied.com... -
Page 8: Xt-Ip Panel Programming
OK or YES There is no back door or Default codes to the system Please refer to the restriction rules for codes (Chapter 4.4). CONFIRM CODE Some codes are already used by default and therefore cannot be used. OK or YES www.videofied.com... - Page 9 13/10/14 10:47 ENTRY COMPLETE ! CONNECTED TO MONITOR. STATION? OK or YES Use the Alphanumeric Keypad to enter in a 4-8 digit ACCOUNT NUMBER : account number provided by the Central Station. ACCOUNT NUMBER : 567001 OK or YES www.videofied.com...
- Page 10 Events list NOT TRANSMITTED: event is not transmitted, however it will appear on the keypad. Please liaise with your Monitoring Station to ensure that the requested events to transmit are correctly set. SERVER ADDRESSES ? OK or YES www.videofied.com...
- Page 11 The 2G3G level test can last several minutes. Do not interrupt the test or remove the SIM 2G3G LEVEL ? card during the test. IMPORTANT : Videofied will require a 3/5 grade or better for reliable transmission of Video alarms. www.videofied.com...
-
Page 12: Ethernet Parameters Configuration
ETHERNET OFF NO STATUS : the PANEL IP Ethernet module is switched off. Please XXX.XXX.XXX.XXX verify that the Ethernet cable is connected and try again. • CABLE OR NETWORK ABSENT : the panel doesn’t detect Ethernet Cable or Network. ETH. STATUS? www.videofied.com... - Page 13 Standalone : Will make the XT-iP a completely independant system controlled by arming OK or YES and disarming using Videofied peripheral devices(keyfobs, keypads, badge,readers). From the host : Will make the XT-iP panel a piggyback/xtender system that will only arm and...
-
Page 14: Xtender Mode Configuration
Enter the value you would like for the Arming (0) : _ OK or YES. Confirmation and press For further information about the programmable inputs and outputs, please consult the following application notes available on our support website: 240-XT - APP NOTE - XTENDER CONFIGURATION MODE www.videofied.com... - Page 15 OK or YES closed and the indicator LEDs are off. After initial programming has been completed, make SYSTEM CHECK use of the menu overview document (available on our IN PROGRESS technical support website), to see full programming options. INSTALLATION SUCCESSFUL ! www.videofied.com...
-
Page 16: Xt-Ip Features Guide
OK or YES ( XMB model only) and press OK or YES and press OK or YES With remote Present your badge on badge reader the badge reader BR250 With remote Press Press keyfob www.videofied.com... -
Page 17: Arming And Siren Mode Configuration
CONFIGURATION (LVL 4) -> AREAS AND DEVICES -> DEVICES -> DEVICES CONFIGURATION -> DEVICE TYPE When in the ‘Arm From Host’ mode, the Videofied system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videofied Keypad display will show ‘SYSTEM ARMED. -
Page 18: Manage Badges And Access Codes
After 1 min of no use of the keypad and no tests running, the display returns to the standby display and LVL1. • When standby display, if the ESC NO key is held during 5s, the level is changed to LVL1. www.videofied.com... - Page 19 Access codes in any combination. From 999898 to 999999 The table presents the reserved From 314157 to 314159 code possibilities that cannot be All codes +1 used. All codes +2 A total of 186 codes are All codes -1 forbidden. All codes -2 www.videofied.com...
-
Page 20: Delete The Keypad Or Any Other Device
OK or YES A1 : KEYPAD KEYPAD 1 OK or YES DELETE OK or YES < = = = = XX = = = = > You can now remove the batteries from the device www.videofied.com... -
Page 21: Read The Event Log
The XT-iP control panel has 3 programmable inputs and 2 programmable outputs. Please note that we advise to connect the panels to a power supply when using programmable inputs. These functions allow the linking of Videofied ® security systems to auxiliary equipment such as panic buttons, pepper spray, smoke generator, hard-wired door contact, light curtain, etc. -
Page 22: Golden Rules
A colon display [:] means that the parameter can be need to be portable during programming. changed. Always clean the lens of the cameras after the installation (Use a clean, dry cloth, taking care not to exert pressure on the lens). www.videofied.com... -
Page 23: Ethernet Parameters
PING reply, Time Out Server, Max Seg. Size: • PING REPLY: Enables ping response. • Time Out Server: In case of disconnection to the local Network, the panel will try after that time to re-connect. • Max Seg. Size: Maximum size of packet sent. www.videofied.com... -
Page 24: Transmitted Events List
After initial programming, using a remote keypad : Use the arrows to access : CONFIGURATION (level 4) > CONFIGURATION MONITOR. STATION > MONITORING PARAMETERS > EVENT TRANS. MODIFICATION Then use the arrows to determine the event to modify. Press OK or YES to edit. www.videofied.com... -
Page 25: G3G Error Codes
Insufficient GPRS Network: When the panel is unable to find any signal, proceed to GPRS level test in another location on site. You can also find the network state or condition of use by directly contacting your local operator. www.videofied.com... -
Page 26: Technical Specification And Security Notes
NF C 48-212:2004 NF EN50130-4:1995; A1:1998; A2:2003 NF EN50130-5: 1998 Class II EMEA SALES North American Headquarters 1375 Willow Lake Blvd, Suite 103 23, avenue du Général Leclerc Vadnais Heights, MN 55110 92340 BOURG-LA-REINE FRANCE E-Mail : usasales@rsivideotech.com E-Mail : emeasales@rsivideotech.com www.videofied.com...
