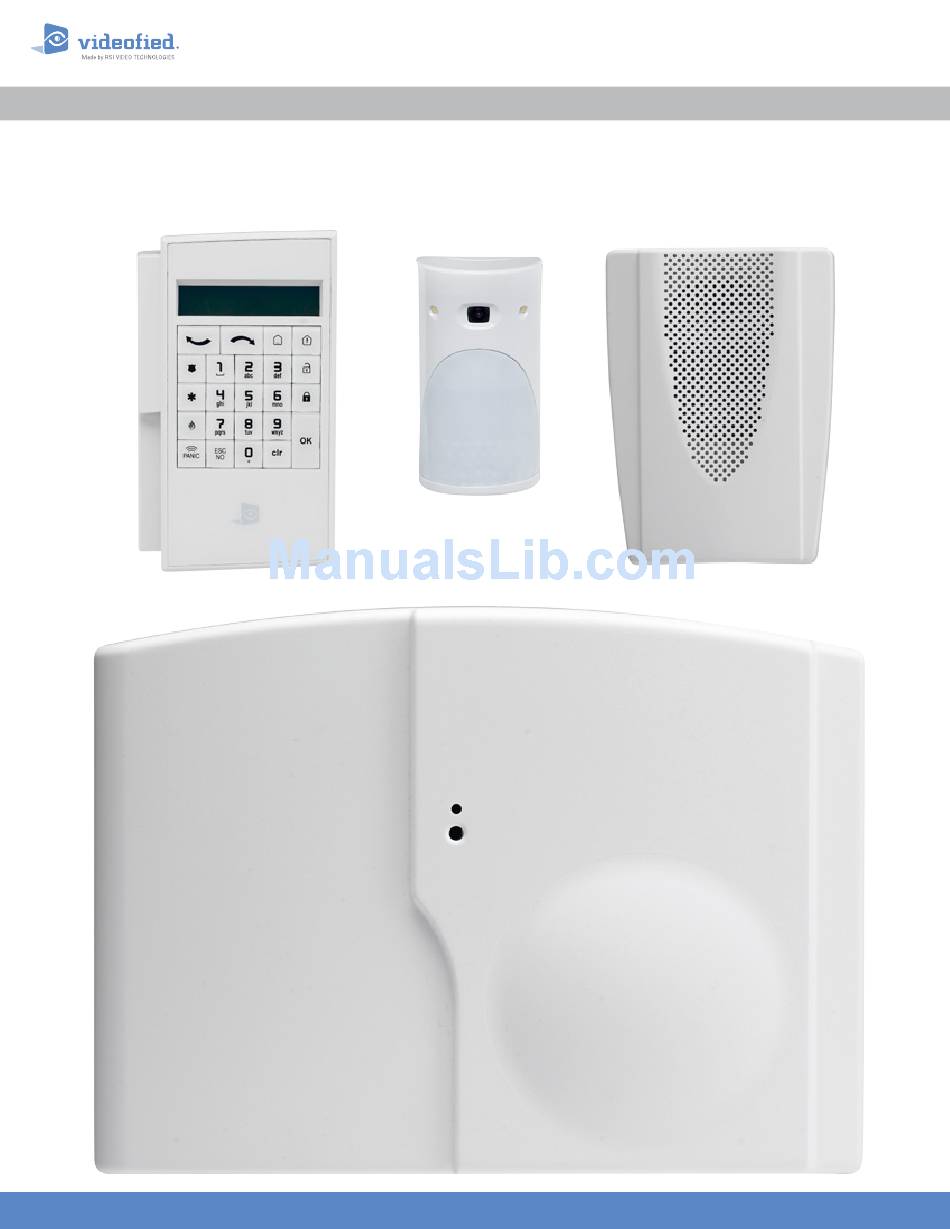

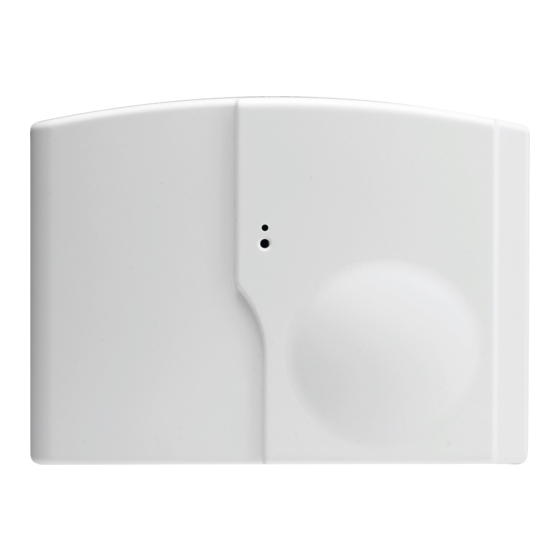

- Page 1 XV 210 GPRS Control Panel I N S T A L L A T I O N M A N U A L Doc. - Ref. 230-XV Last modification date : June 2014 Firmware version : XLP.04.04.05.XXX and later www.videofied.com...
-
Page 2: Introduction
Technology ® The XV alarm panel, like all Videofied devices, uses the S2View patented technology. Which is an interactive wireless and AES encrypted technology ensuring signal integrity and optimal security. The reliability of the signal is guaranteed thanks to the two-way radio frequency transmissions with all the ®... -
Page 3: Table Of Contents
4.5 Delete the keypad or any other device..................18 4.6 Read the event log........................19 4.7 Programmable inputs and outputs.....................19 4.8 Golden rules..........................20 5. Transmitted events list ..................... 6. 2G3G error codes....22 ..................7. Technical specification and security notes ............www.videofied.com... -
Page 4: Panel Setup
DO NOT insert or remove the SIM card while the panel is powered. 1.2 Panel mounting Bracket holes Fix the back casing on the wall using the three mounting holes as shown Mounting the panel is not required for programming. www.videofied.com... -
Page 5: Powering And Initialization
The panel is now reset, a CMA, XMA or XMB has to be enrolled to configure the panel. THE CONTROL PANEL MUST BE CONNECTED TO AN EXTERNAL POWER SUPPLY (OPTION 1) WHEN USING THE RINGTONE FEATURE OR SMARTPHONE APP. Option 1 Programming button Mains power supply Option 2 www.videofied.com... -
Page 6: Pairing The Keypad
Insert all LS14500 Lithium batteries into the keypad. • Do not mount the keypad. It will display one of the following screens: RSI (c) 2013 <=========XX=========> videofied.com • Press on both ESC NO keys at the same time and release. The indicator LED on the keypad will blink rapidly. -
Page 7: Panel Programming
OK or YES There is no back door or Default codes to the system. Please refer to the restriction rule for codes (Chapter 4.4). CONFIRM CODE Some codes are already used by default and therefore cannot be used. OK or YES www.videofied.com... - Page 8 13/10/14 10:47 ENTRY COMPLETE ! CONNECTED TO MONITOR. STATION? OK or YES Use the Alphanumeric Keypad to enter in a 4-8 digit ACCOUNT NUMBER : account number provided by the Central Station. ACCOUNT NUMBER : 567001 OK or YES www.videofied.com...
- Page 9 Events list NOT TRANSMITTED: event is not transmitted, however it will appear on the keypad. Please liaise with your Monitoring Station to ensure that the requested events to transmit are correctly set. SERVER ADDRESSES ? OK or YES www.videofied.com...
- Page 10 It makes a difference between UPPER and lower case letters. To switch between UPPER and lower case, use the M/m key from CMA keypad or hold a digit key (0-9) for XMA/XMB. 2G3G PARAMETERS ? 2G3G LEVEL ? www.videofied.com...
- Page 11 The 2G3G level test can last several minutes. Do not interrupt the test or remove the SIM card during the test. IMPORTANT : Videofied will require a 3/5 grade or OK or YES better for reliable transmission of Video alarms.
- Page 12 LEDs are off. SYSTEM CHECK After this first configuration, do not hesitate to report on the Synoptics menu to have more visibility on all IN PROGRESS functionalities. INSTALLATION SUCCESSFUL ! www.videofied.com...
-
Page 13: Tp200 Speakerphone Installation
The two way voice communication is full duplex. After the voice challenge, it is important for the operator to switch off his microphone and to deactivate his speaker when listening in. This will limit the risks of Larsen effect, sound saturation or other echo canceling related problems. www.videofied.com... -
Page 14: Features Guide
OK or YES ( XMB model only) and press OK or YES and press OK or YES With remote Present your badge on badge reader the badge reader BR250 With remote Press Press keyfob www.videofied.com... -
Page 15: Arming And Siren Mode Configuration
(by default : all opening contacts with external access*) * You can set your devices as : External, Perimeter, ou External +Perimeter. Please go to the menu: CONFIGURATION (LVL 4) -> AREAS AND DEVICES -> DEVICES -> DEVICES CONFIGURATION -> DEVICE TYPE www.videofied.com... -
Page 16: Manage Badges And Access Codes
After 1 min of no use of the keypad and no tests running, the display returns to the standby display and LVL1. • When standby display, if the ESC NO key is held during 5s, the level is changed to LVL1. www.videofied.com... - Page 17 Access codes in any combination. From 999898 to 999999 The table presents the reserved From 314157 to 314159 code possibilities that cannot be All codes +1 used. All codes +2 A total of 186 codes are All codes -1 forbidden. All codes -2 www.videofied.com...
-
Page 18: Delete The Keypad Or Any Other Device
OK or YES A1 : KEYPAD KEYPAD 1 OK or YES DELETE OK or YES < = = = = XX = = = = > You can now remove the batteries from the device www.videofied.com... -
Page 19: Read The Event Log
The XV control panel has 2 programmable inputs and 1 programmable outputs. Please note that we advise to connect the panels to a power supply when using programmable inputs. These functions allow the linking of Videofied ® security systems to auxiliary equipment such as panic buttons, pepper spray, smoke generator, hard-wired door contact, light curtain, etc. -
Page 20: Golden Rules
A colon display [:] means that the parameter can be need to be portable during programming. changed. Always clean the lens of the cameras after the installation (Use a clean, dry cloth, taking care not to exert pressure on the lens). www.videofied.com... -
Page 21: Transmitted Events List
After initial programming, using a remote keypad : Use the arrows to access : CONFIGURATION (level 4) > CONFIGURATION MONITOR. STATION > MONITORING PARAMETERS > EVENT TRANS. MODIFICATION Then use the arrows to determine the event to modify. Press OK or YES to edit. www.videofied.com... -
Page 22: G3G Error Codes
Insufficient GPRS Network: When the panel is unable to find any signal, proceed to GPRS level test in another location on site. You can also find the network state or condition of use by directly contacting your local operator. www.videofied.com... -
Page 23: Technical Specification And Security Notes
NF C 48-212:2004 NF EN50130-4:1995; A1:1998; A2:2003 NF EN50130-5: 1998 Class II EMEA SALES North American Headquarters 1375 Willow Lake Blvd, Suite 103 23, avenue du Général Leclerc Vadnais Heights, MN 55110 92340 BOURG-LA-REINE FRANCE E-Mail : usasales@rsivideotech.com E-Mail : emeasales@rsivideotech.com www.videofied.com...
