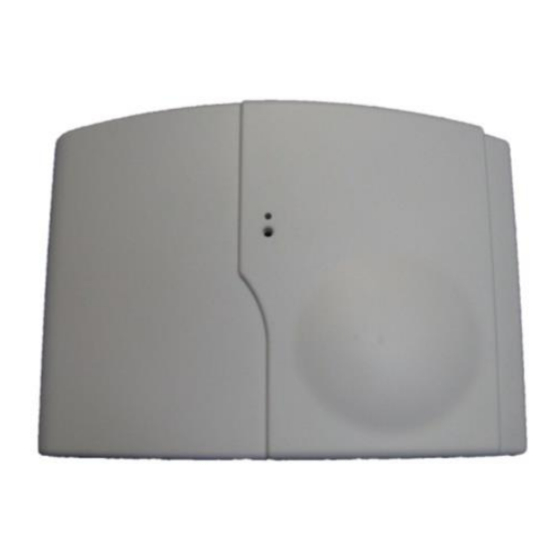

Wireless hybrid video alarm control panel w/ip
Hide thumbs Also See for XT-IP620:

Advertisement

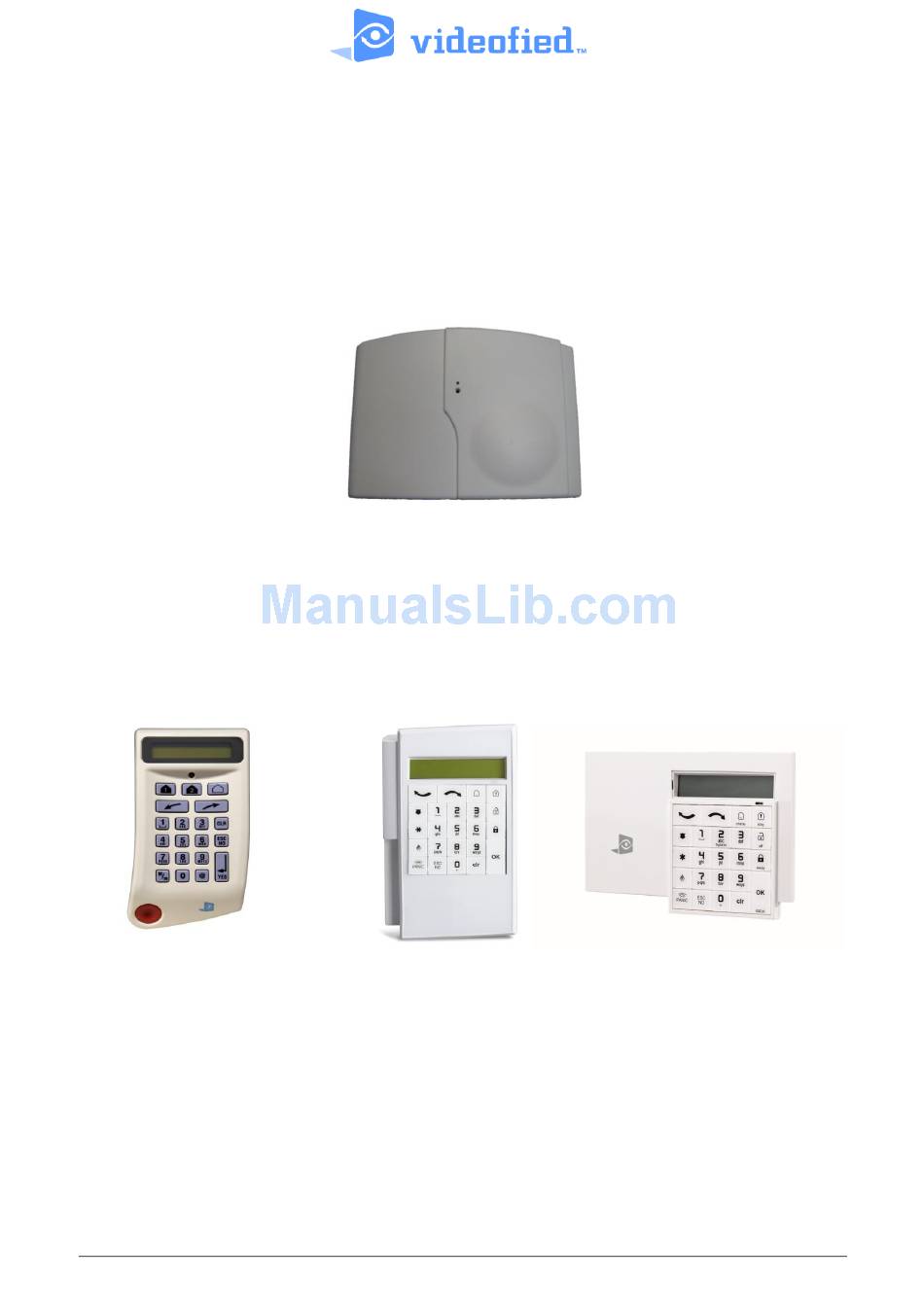

Document #2029-XTIPIN
COMPLETE SETUP AND PROGRAMMING MANUAL
FOR
XT-IP620
*A Videofied CMA/XMA/WMB Alphanumeric Keypad or Frontel TMT2 is required for
programming and maintenance*
CMA
XMA
WMB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-IP620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Videofied XT-IP620

  • Page 1 Document #2029-XTIPIN COMPLETE SETUP AND PROGRAMMING MANUAL XT-IP620 *A Videofied CMA/XMA/WMB Alphanumeric Keypad or Frontel TMT2 is required for programming and maintenance*...
  • Page 2: Table Of Contents

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Table of Contents Page Installation Guidelines Introduction Initial Programming 6-15 Device Installation Entering Badges and Access Codes 17-18 Choosing Siren Options Disabling Monitoring Ethernet Parameters and Testing Testing Device RF Level...
  • Page 3: Fcc

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Regulatory Information for USA and Canada FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization to operate this equipment.
  • Page 4: Installation Guidelines

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Basic Setup Guidelines for Installation and Programming Pre-Setup 1) Obtain the account number and IP/Domain information from the Central Station. System Programming and Setup 1) Setup and program the system in the office or in your vehicle. DO NOT MOUNT THE DEVICES.
  • Page 5: Introduction

    Setup and Programming manual for XT-IP620 series Introduction: Description: The XT-IP620 control panel is a Videofied wireless, battery operated hybrid alarm system. It is designed for residential, small business and commercial security applications. The XT- IP620 provides integrated Video Verification and features an Ethernet communication path.
  • Page 6 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series SETUP MANUAL FOR XT-IP620 SERIES PANEL *THIS SYSTEM REQUIRES A CMA/WMB/XMA or TMT2 INSTALLER SOFTWARE FOR PROGRAMMING* **TO TRANSMIT ALARMS AND VIDEO VIA ETHERNET, THE SYSTEM REQUIRES AN EXTERNAL POWER SUPPLY WITH 4 ALKALINE BATTERIES FOR BACK-UP (PP4)**...
  • Page 7 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Connect the RJ45 (Ethernet cable) to the panel Plug the RJ45 cable into the Ethernet jack on the control panel. The cable can be routed back through the wire channel to make sure it does not get pinched.
  • Page 8 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Power Option (PP4) 4 x E95VP Alkaline D-Cell + 12v 2amp DC Class 2 power supply (not supplied) Used for Standalone or Xtender mode where Programmable Inputs/Mapping, Programmable Outputs, Ethernet connection, or SMS will be used E95VP Specifications: Operating Temp: 0°F to 130°F...
  • Page 9 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series XT-IP620 Programming Reset the XTIP Panel:  Press and hold programming button ( ) for 10sec until the Indicator LED blinks twice   Press and instantly release the programming button ( The indicator LED will blink once.
  • Page 10: Initial Programming

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series  YES/OK RADIO RANGE The Radio Range test must be run during device recording TEST ? to ensure proper pairing with the control panel. This test the number of successful pings between the device and the control panel.
  • Page 11 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series DATE (Day) : 13/11/05  YES/OK TIME (HOUR) : 10:00  YES/OK DATE (Minutes) : 10:53  YES/OK CONNECTED TO YOU MUST ALWAYS CHOOSE ‘YES/OK’ MONITOR.STATION?  YES/OK ACCOUNT NUMBER?
  • Page 12 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series CODE/STATE modification CODE/STATE  MODIFICATION? YES/OK These are the default transmitted events: Device Event Alert Event Panel Reset Not Transmitted Panel Batteries Event/Restore TRANS. STATE AC Power Event/Restore MODIFICATION Phoneline Fault...
  • Page 13 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series ETHERNET PARAMETERS DHCP: ENABLE OR DISABLE OU INACTIF DISABLE PANEL IP • IP MASK These parameters are not necessary if you choose DHCP ENABLE ENABLE • These parameters are the local network parameters.
  • Page 14 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series  Enter the name of the logical area 1 + YES/OK. Repeat AREAS this step for areas 2, 3, 4. Refer to page 4 for more CONFIGURATION information. Press ESC/NO if you want to let default value.
  • Page 15 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series  TRANSMISSION By entering a value using the keypad, up to 600 seconds, the transmission of any event will be delayed that many DELAY seconds. Enter the value you would like for the Transmission Delay Value: (0-600) ...
  • Page 16: Device Installation

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Device Installation DCV651 – Outdoor MotionViewer / BR651 Outdoor Badge Reader Place batteries in Device. Wait for LED to turn on. Press and release the programming button. DCV601 – Indoor MotionViewer / ITR601 – Indoor Blind PIR Place batteries in device.
  • Page 17: Entering Badges And Access Codes

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Entering a Badge or Access Code for Arming/Disarming After Initial programming has been completed, you are not able to arm and disarm the system until you enter a user code or badge (the installer code cannot arm and disarm the system). Codes can...
  • Page 18: Choosing Siren Options

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Access level Definition & rights LVL1 Stand by level Restricted USER level where it is only possible to arm/disarm the system. LVL2 USER level where it is possible to arm/disarm the system, check the event log, test the devices.
  • Page 19: Disabling Monitoring

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series How to Disable/Enable Monitoring Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the panel to find a good communication with devices, disabling monitoring will ensure that you will have access to programming and that unnecessary signals are not sent to the monitoring station.
  • Page 20: Ethernet Parameters And Testing

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series ETHERNET Parameters: nging Siren Options To configure or modify Ethernet Parameters, go to: CONFIGURATION (level 4) + [YES/OK] >> GENERAL PARAMETERS + [YES/OK] >> ETHERNET + After initial programming has been completed any sounder on the system will be enabled by default, [YES/OK] this includes the sounder on the Keypad and Badge Reader.
  • Page 21: Testing Device Rf Level

    How to test RF for deployment of devices Running the RF test during the mounting of devices is key to a successful Videofied installation. This test will ensure that all devices have adequate communication with the control panel. All Videofied devices are bi-directional which allows the system to ping the device and expect a response.
  • Page 22: Xtip Power Chart

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series XT-IP620 Power Chart 22 | P a g e...
  • Page 23: Arming Input Wiring Diagram

    Setup and Programming manual for XT-IP620 series Arming Input Wiring Diagram When in the ‘Arm From Host’ mode the Videofied system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videofied Keypad display will show ‘SYSTEM ARMED.
  • Page 24: Testing To Central Station

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series How to test to the dispatch center Testing to the dispatch is done twice during installation. Once while you are programming the system and then again once the installation has been completely finished. Although both will use the same steps the initial test will be just confirmation using one device to verify the programming.
  • Page 25: Mounting Control Panel

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series How to mount the XT-IP620 How to Mount the Control Panel? Fix the back casing on the wall with 3 screws ()    25 | P a g e...
  • Page 26: Troubleshooting

    Good communication between the MotionViewers and the Control Panel is key to getting successful video to the monitoring station. During mounting of any device on your Videofied system you must run the Radio Range/Device Locating test to ensure that the mounting location is with-in range of the Control Panel.
  • Page 27 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Monitoring Station is not getting any signals: Communication between the Control Panel and the Monitoring Station is over an Ethernet Connection.  Go into Maintenance and run the ETH STATUS to see if you receive back an IP Address or error.
  • Page 28 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Unable to record device or getting ‘Pairing Failure’ error This usually occurs when the device still has a pairing key from a previous system or setup. To perform a pairing key override: 1.
  • Page 29: After Initial Programming Flow Chart

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series XT-IP620 -SERIES ‘AFTER INITIAL PROGRAMMING’ FLOW CHART Parameters are only available in Access Level 4 29 | P a g e...
  • Page 30 2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series 30 | P a g e...
  • Page 31: Addendum

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series Addendum 1. LSH20 Control Panel Batteries: 2. LS14500 Peripheral Batteries: Excludes SE601 and SE651 3. Lithium Battery Storage: 31 | P a g e...
  • Page 32: Finding Manufacture Week/Year

    2012/1/9 Ed 1.1 Setup and Programming manual for XT-IP620 series 4. Finding Manufacture Week and Year: The Manufacture week and year can be found in the serial number of the device/control panel. The second sets of 4 numbers in the serial number are WWYY.
  • Page 33: Replacing Device And Control Panel Batteries

    Setup and Programming manual for XT-IP620 series 7. Replacing Device and Control Panel batteries When replacing batteries in the Videofied control panel or devices the battery replacement mode must be used. This will ensure that the low battery algorithm on the panel/device is properly reset and also helps keep the devices synced with the control panel.
