9. Appendix

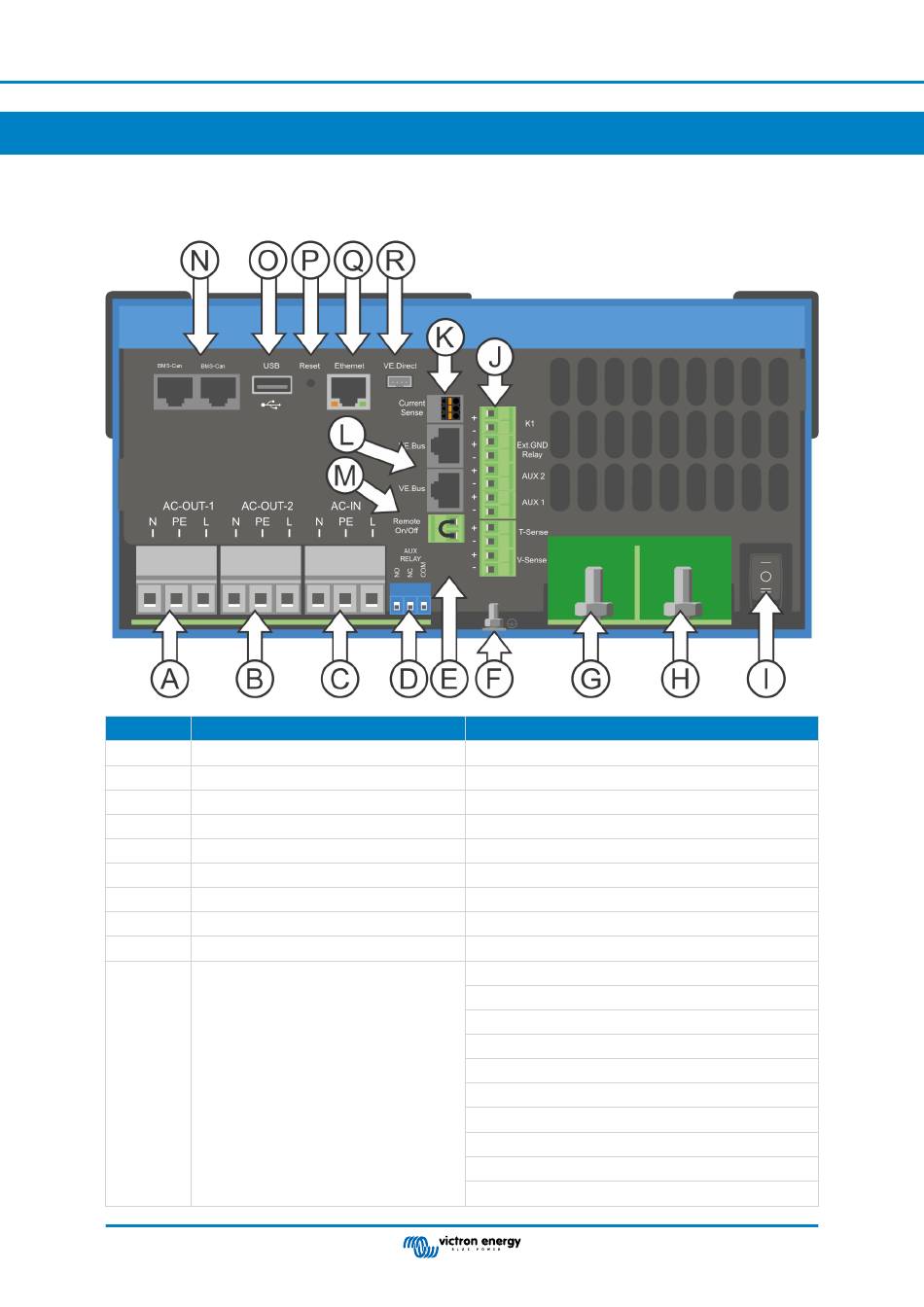

9.1. Connection Overview

Reference
A Load connection. AC-OUT-1 Left to right:
B Load connection. AC-OUT-2 Left to right:
C AC input. AC-IN Left to right:
D Programmable (AUX) relay; left to right
E To start without Assistants
F Primary ground connection
G battery positive connection.
H battery minus connection.
I switch
J Terminals top to bottom:
Page 19
MultiPlus-II inverter/charger off-grid Australia
Description Connection
N (neutral), PE (earth/ground), L (phase)
N (neutral), PE (earth/ground), L (phase)
N (neutral), PE (earth/ground), L (phase)
NO, NC, COM.
Press and hold this button when starting
M6 (PE)
M8
M8
-:On, 0:Off, =:charger only
1. Auxiliary power supply 12 V 100 mA
2. Programmable open collector ooutput (K1) 70V 100mA
3. External ground relay +
4. External ground relay –
5. Analog/digital (AUX) input 1 +
6. Analog/digital (AUX) input 1 –
7. Analog/digital (AUX) input 2 +
8. Analog/digital (AUX) input 2 –
9. Temperature sense +
10 .Temperature sense –
