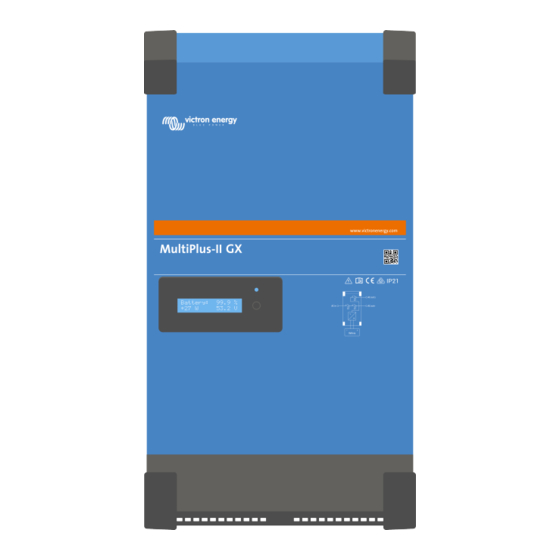

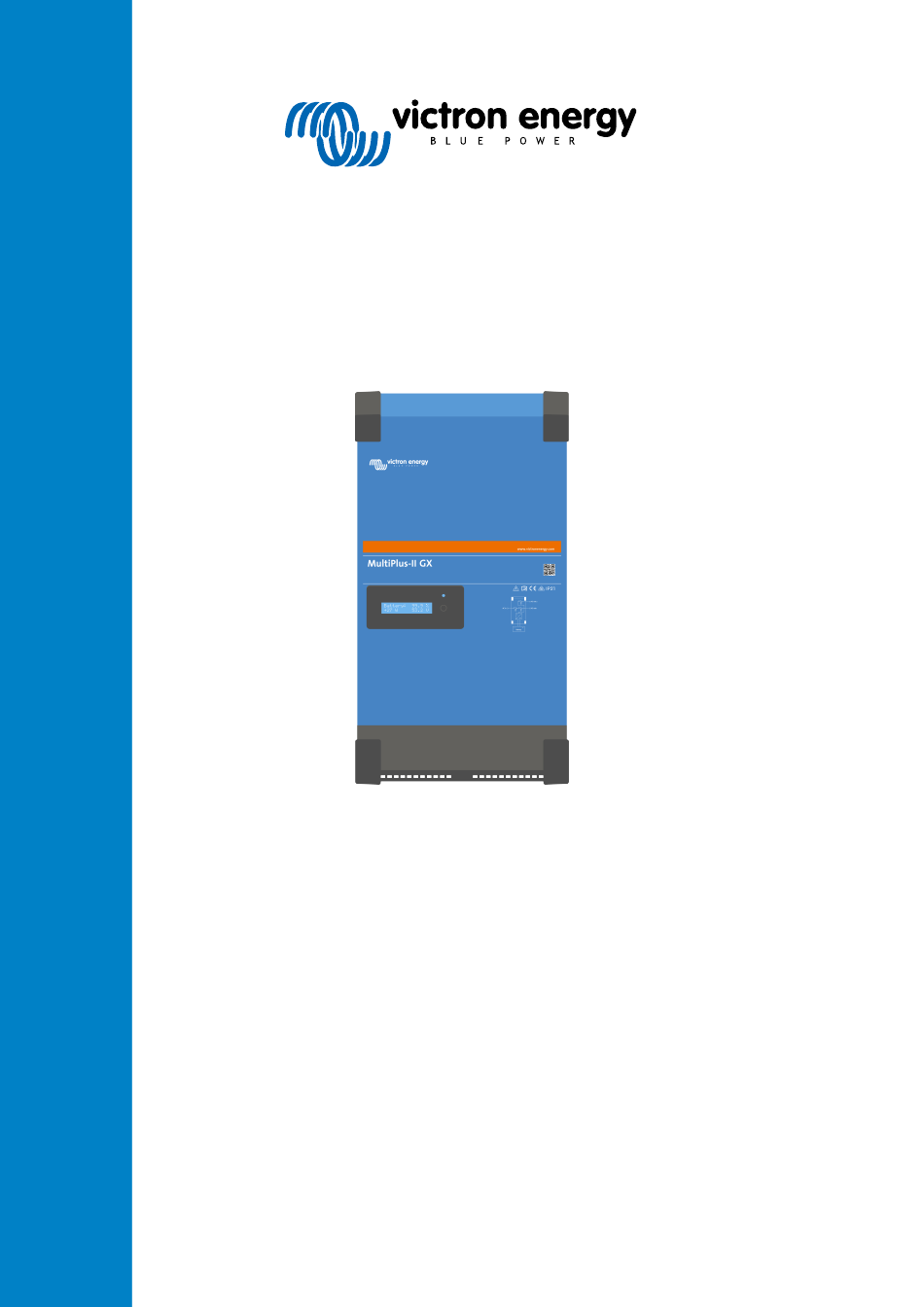

- Page 1 ENGLISH MultiPlus-II inverter/charger off-grid Australia 48/3000/35-32 230V GX and 48/5000/70-50 230V GX rev 00 - 10/2023...
-
Page 2: Table Of Contents
MultiPlus-II inverter/charger off-grid Australia Table of Contents 1. Safety Instructions ........................1 2. Description ..........................3 2.1. Features ........................3 2.2. Battery charger ......................4 2.2.1. Lead-acid batteries ....................4 2.2.2. More on batteries and battery charging ................. 4 2.2.3. Victron Lithium Battery 12.8V & 25.6V Smart ..............4 2.2.4. -
Page 3: Safety Instructions
MultiPlus-II inverter/charger off-grid Australia 1. Safety Instructions In general Please read the documentation supplied with this product first, so that you are familiar with the safety signs and directions before using the product. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. - Page 4 MultiPlus-II inverter/charger off-grid Australia Symbols on the enclosure Symbol Description Caution, hot surface Caution, risk of electric shock Refer to the operating instructions IP21 Protected from touch by fingers and objects greater than 12 millimetres. Protected from condensation. European conformity Regulatory compliance mark for Australia &...
-
Page 5: Description
This unit is for use in off-grid applications such as, marine, automotive, as well as stationary land-based applications. This manual applies to: • MultiPlus-II 48/3000/35-32 230V GX • MultiPlus-II 48/5000/70-50 230V GX 2.1. Features GX LCD display A backlit 2 x 16 character display screen shows system parameters. -
Page 6: Battery Charger
MultiPlus-II inverter/charger off-grid Australia • Start at a preset % discharge level, and/or • start (with a preset delay) at a preset battery voltage, and/or • start (with a preset delay) at a preset load level. • Stop at a preset battery voltage, or •... -
Page 7: Other Lithium Batteries
MultiPlus-II inverter/charger off-grid Australia 2.2.4. Other lithium batteries If other lithium batteries are used, follow this link for a list of compatible battery types and how to install and configure them: https://www.victronenergy.com/live/battery_compatibility:start. Page 5 Description... -
Page 8: Operation
MultiPlus-II inverter/charger off-grid Australia 3. Operation 3.1. On/off/charger-only switch When switched to ‘on’, the MultiPlus-II is fully functional. The inverter will come into operation, and the LED ‘inverter on’ will light An AC voltage connected to the AC input terminal will be switched through to the AC output terminal, if within specifications. The inverter will switch off, the ‘mains on’... -
Page 9: Error Code Display
MultiPlus-II inverter/charger off-grid Australia • Phase 2 AC output Voltage and Power. • Phase 3 AC input Voltage and Power. • Phase 3 AC output Voltage and Power. 3.3.4. Error Code Display If there is an error with the system, the error code will be displayed on the screen. The screen will display VE.Bus error code numbers, and MPPT error codes (if connected). -
Page 10: Installation
MultiPlus-II inverter/charger off-grid Australia 4. Installation This product may only be installed by a qualified electrical engineer. 4.1. Mounting 4.2. DC connection In order to utilise the full capacity of the product, batteries with sufficient capacity and battery cables with sufficient cross-section should be used. -
Page 11: Ac Connection
MultiPlus-II inverter/charger off-grid Australia • Tighten the nuts well for minimal contact resistance. • The connector goes on first, then the flat washer, lock washer and nut. Tighten the nuts well for minimal contact resistance. 4.3. AC connection This product is not approved to the standard AS 4777.2:2020 and cannot connect to the grid as part of an inverter energy system in accordance with the requirements of AS 4777.2:2020. -
Page 12: Connection To The Vrm Portal
MultiPlus-II inverter/charger off-grid Australia For a 3kVA unit With its PowerAssist feature, the MultiPlus-II can add up to 3 kVA (that is 3000 / 230 = 13 A) to the output during periods of peak power requirement. Together with a maximum input current of 32 A, this means that the output can supply up to 32 + 13 = 45 For a 5kVA unit, this is an additional 22A (5000/230), so the maximum output is 50+22=77A. -
Page 13: Configuration
MultiPlus-II inverter/charger off-grid Australia 5. Configuration Settings may only be changed by a qualified electrical engineer. Read the instructions thoroughly before implementing changes. During setting of the charger, the AC input must be removed. 5.1. Standard settings: ready for use On delivery, the MultiPlus-II is set to standard factory values. -
Page 14: Victronconnect
MultiPlus-II inverter/charger off-grid Australia 5.2.1. VictronConnect The MultiPlus-II is configured using VictronConnect. More general information about the VictonConnect app - how to install it; how to pair it with your device; and how to update firmware, for example - can be found by referring to the overall VictronConnect manual. -
Page 15: Maintenance
MultiPlus-II inverter/charger off-grid Australia 6. Maintenance The MultiPlus-II does not require specific maintenance. It will suffice to check all connections once a year. Avoid moisture and oil/soot/vapours, and keep the device clean. Page 13 Maintenance... -
Page 16: Error Indications
MultiPlus-II inverter/charger off-grid Australia 7. Error Indications With the procedures below, most errors can be quickly identified. If an error cannot be resolved, please refer to your Victron Energy supplier. Our recommendation is to use the Victron Toolkit app to find the description of all possible LED alarm codes. See here for download information: https://www.victronenergy.com/support-and-downloads/software#victron-toolkit-app. -
Page 17: Ve.bus Error Codes
MultiPlus-II inverter/charger off-grid Australia Poor battery connection. Check the battery connections. The absorption voltage has been set to an Set the absorption voltage to the correct incorrect level (too low). level. The float voltage has been set to an incorrect Set the float voltage to the correct level. - Page 18 4) Update the firmware in the last device that was switched on. Internal error. Should not occur. Switch all equipment off, and then on again. Contact Victron Energy if the problem persists. Page 16 Error Indications...
-
Page 19: Technical Specifications
MultiPlus-II inverter/charger off-grid Australia 8. Technical specifications MultiPlus-II 48/3000/35-32 230V GX 48/5000/70-50 230V GX PowerControl & PowerAssist Transfer switch Maximum AC input current INVERTER DC Input voltage range 38 – 66 V AC Output voltage 230 V ± 2% AC output frequency 50 Hz ±... - Page 20 MultiPlus-II inverter/charger off-grid Australia MultiPlus-II 48/3000/35-32 230V GX 48/5000/70-50 230V GX Humidity (non-condensing) max 95% Maximum altitude 2000m Country of manufacture China India ENCLOSURE Material and colour Steel, blue RAL 5012 Protection category IP21 Battery connection M8 bolts AC connection Screw terminals for wire up to 13mm²...
-
Page 21: Appendix
MultiPlus-II inverter/charger off-grid Australia 9. Appendix 9.1. Connection Overview Reference Description Connection Load connection. AC-OUT-1 Left to right: N (neutral), PE (earth/ground), L (phase) Load connection. AC-OUT-2 Left to right: N (neutral), PE (earth/ground), L (phase) AC input. AC-IN Left to right: N (neutral), PE (earth/ground), L (phase) Programmable (AUX) relay;... - Page 22 MultiPlus-II inverter/charger off-grid Australia Reference Description Connection 11. Battery voltage sense + 12. Battery voltage sense - External current sensor To connect the current sensor; remove the wire bridge between the INT and COM terminals, connect the red sensor wire to the EXT terminal and connect the white sensor wire to the COM terminal.
-
Page 23: Block Diagram
MultiPlus-II inverter/charger off-grid Australia 9.2. Block diagram 9.3. Charge algorithm Page 21 Appendix... -
Page 24: Temperature Compensation
MultiPlus-II inverter/charger off-grid Australia 4-stage charging: Bulk Entered when charger is started. Constant current is applied until nominal battery voltage is reached, depending on temperature and input voltage, after which constant power is applied up to the point where excessive gassing is starting (14.4 V, temperature compensated). -
Page 25: Dimensions
MultiPlus-II inverter/charger off-grid Australia 9.5. Dimensions Page 23 Appendix... - Page 26 MultiPlus-II inverter/charger off-grid Australia Dimension Drawing - MultiPlus-II GX PMP482506000 MultiPlus-II 48/5000/70-50 - 230V GX 32.5 87.5 87.5 564.9 Dimensions in mm Page 24 Appendix...
