Grundig SCC 240, SCN 230 - Clock Radio Manual

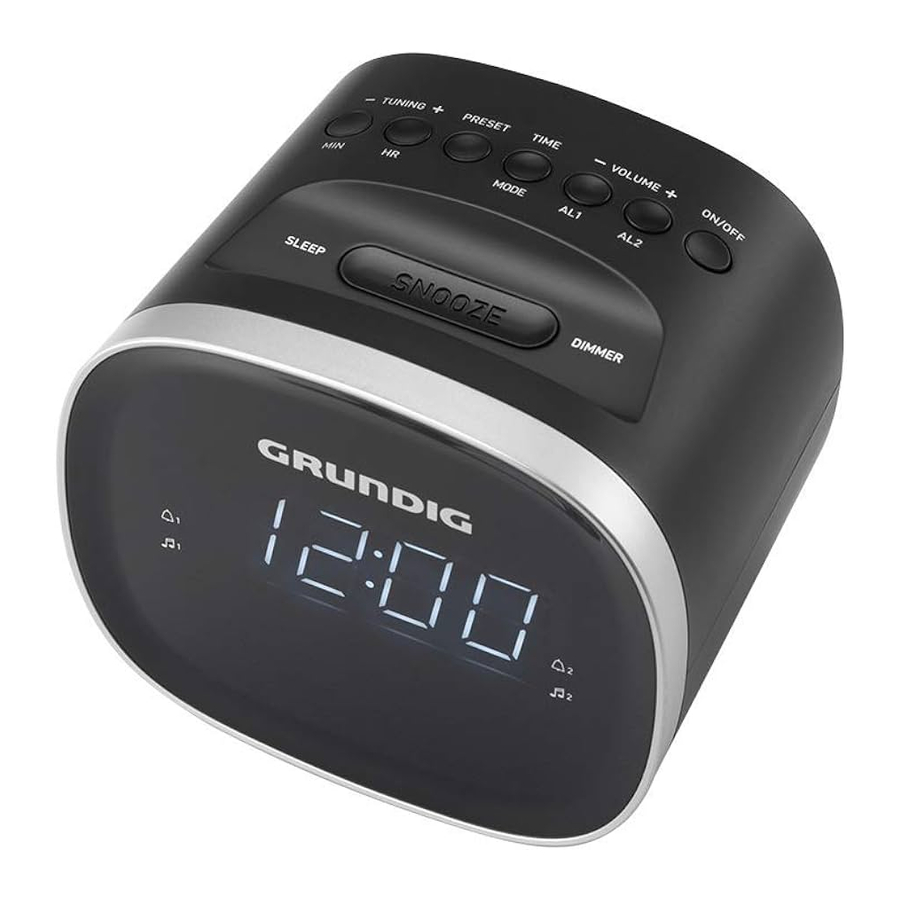

DEVICE OVERVIEW

POWER SUPPLY

Mains operation
Check that the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. If this is not the case, contact your specialist dealer.

1. Plug the power adaptor into the socket (100 - 240V~, 50/60 Hz).

• The device is connected to the mains with the power plug. To fully disconnect the device from the mains, pull out the plug.
• The mains plug is used to disconnect the device. It shall remain readily operable and should not be obstructed during intended use.

Inserting the back-up battery
The back-up batteries ensure that the stored set¬tings are not lost in the case of a power failure.

1. Open the battery compartment by pressing the area market and pushing down the cover.
2. Observe the polarity marked on the base of the battery compartment when inserting the batteries (micro batteries, 2 x 1.5 V, R03/ UM 4/ AAA).
3. Close the battery compartment.

Note:

• Remove the back-up battery when it is flat or when you know that the device will not be used for a long period of time.

Environmental note:

• Batteries, including those which do not contain heavy metal, should not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations.

RADIO MODE

Antenna
For the best FM (UHF) reception it is sufficient to align the wire antenna accordingly.

Switching on and off

1. Switching the device from standby with »ON/OFF« button.
2. Switch the device to standby with »ON/OFF« button.

Searching for and saving radio stations - automatically
You can store 10 radio stations on presets.

1. Activate the station search by pressing »TUNING+/HR« or »TUNING-/MIN« buttons until the frequency display changes to rapid runthrough.
   The search stops when a station is found.

Note:

• To move the frequency forward in steps, briefly press »TUNING+/HR« or »TUNING-/MIN« several times.

2. Press and hold the »PRESET« button to activate the memory function.
3. Press »TUNING+/HR« or »TUNING-/MIN« buttons to select the preset.
4. Press the »PRESET« button to save the station.

Note:

• If the stations are already stored on the presets, they are overwritten when new stations are stored.

5. To store more stations, repeat the steps 1 to 4.

Selecting stored stations

1. Select the preset by pressing the »PRESET« button to select the preset stations one after another.

Adjusting the volume

1. Adjust the volume with »VOLUME -/AL 1« or »VOLUME +/AL 2« buttons.

Setting the brightness of the display

1. Press the »SLEEP/SNOOZE/DIMMER« button to adjust brightness levels in high, middle and low levels.

BLUETOOTH MODE (SCC 240)

Connect to mobile device with Bluetooth

1. Switching the device from standby with »ON/OFF« button.
2. Press the »MODE/TIME« button repeatedly until »bt« is shown on display;
3. »bt« will be flashing on LCD;
4. Go to your mobile device, and find the "Sonoclock SCC 240" from the available Bluetooth device list. Then press to connect to the radio.
5. When SCC 240 has been connected to the mobile device, the »bt« will stop flashing.

Playback control via Bluetooth

1. Press the »ON/OFF« button to switch on the radio.
2. Connect the SCC 240 to mobile device via Bluetooth.
3. Press the »PRESET« button to toggle the music playback in between play or pause status.
4. Press the »TUNING-/MIN« button to skip back to previous played songs.
5. Press the »TUNING+/HR« button to skip to the next songs.

Pairing mode

1. Press the »ON/OFF« button to switch on the radio;
2. If the SCC 240 is connecting to any mobile device via Bluetooth, press and hold the »PRESET« button to disconnect the current Bluetooth connection.
3. The SCC 240 will be in Bluetooth pairing mode with flashing the Bluetooth icon.
4. You can repeat the steps in "Connect to mobile device with Bluetooth" for a new Bluetooth connection.

Adjusting the volume

1. Adjust the volume with »VOLUME -/AL 1« or »VOLUME +/AL 2« buttons.

Power saving in Bluetooth
If there is no Bluetooth connection from the radio to any mobile devices, the SCC 240 will switch to standby mode after 15 minutes.

TIMER MODE

Setting the time

1. Switching the device »ON/OFF« button.
2. Press and hold the »TIME/MODE« button for two seconds to activate the setting. The current day of the week will be flashing on the LCD. »d1« is Monday, and »d7« is Sunday.
3. Then press the »TIME/MODE« button again for setting the current time.
4. Press »TUNING-/MIN« to set the minutes;
5. Press »TUNING+/HR« to set the hours;
6. Press the »TIME/MODE« button again to confirm the settings.

Setting the alarm time

1. Switch the device to standby with »ON/OFF« button;
2. Press and hold the »VOLUME -/AL 1« button for alarm 1 or »VOLUME +/AL 2« for alarm 2;
3. For example, press and hold »VOLUME -/AL 1« button to Then the alarm days will be flashing on the LCD (1 - 7, 1 - 5 or 6 - 7).
   • Descriptions of alarm days are as follows:
     1 - 7 (Alarm is active during the week)
     1 - 5 (Alarm is active on weekdays)
     6 - 7 (Alarm is active at the weekend)
4. Press the »TUNING-/MIN« or »TUNING+/ HR« buttons to adjust the alarm days.
5. Press the »VOLUME -/AL 1« button to confirm;
6. Press the »TUNING-/MIN« button to set the alarm minutes;
7. Press the »TUNING+/HR« button to set the alarm hours;
8. Press the »VOLUME -/AL 1« button to finish the alarm 1 settings.
   Note:
   • The device wakes you up at the set alarm time, the alarm duration is 60 minutes.

Interrupting the alarm

• Press the »SLEEP/SNOOZE/DIMMER« while the alarm is sounding.
  Note:
  • The alarm signal will be stopped, and the alarm will be sounded again after nine minutes.

Cancelling the alarm

1. Press »ON/OFF« while the alarm is sounding.
   Note:
   • The alarm will be sounded again at the next set alarm time.

Activating and deactivating the alarm

1. In standby mode, press »VOLUME -/AL 1« or »VOLUME +/AL 2« button to activate the alarm with last used alarm settings.
2. For example, if pressed »VOLUME -/AL 1« button, the last used alarm time would be displayed;
3. By repeatedly pressing the »VOLUME -/AL 1« button, the radio will display last set alarm time, the »« and the »« icons.

Sleep timer

1. Press and hold the »SLEEP/SNOOZE/DIMMER« button for about 2 seconds to activate the sleep timer.
2. Then repeatedly press the »SLEEP/SNOOZE/DIMMER« button to select the auto switch-off timer from 90 minutes to 10 minutes.
3. To switch off the sleep timer before the set time press and hold »SLEEP/SNOOZE/DIMMER« button for about 2 seconds, then repeatedly press the button again until »OFF« is displayed.

Charging a mobile phone (For Grundig SCC 240 only)
The USB socket on the back side can provide DC power of 5V for charging a mobile phone. Connect the mobile phone to the USB socket with an appropriate cable. The USB power is available in all the operating modes and including standby mode. Refer to the user manual or the manufacturer of the mobile phone to verify if it supports charging from an USB power. The USB socket is suitable for DC power-out only and cannot be used for e.g. playback of music from a USB stick.
