Summary of Contents for Dreame M12

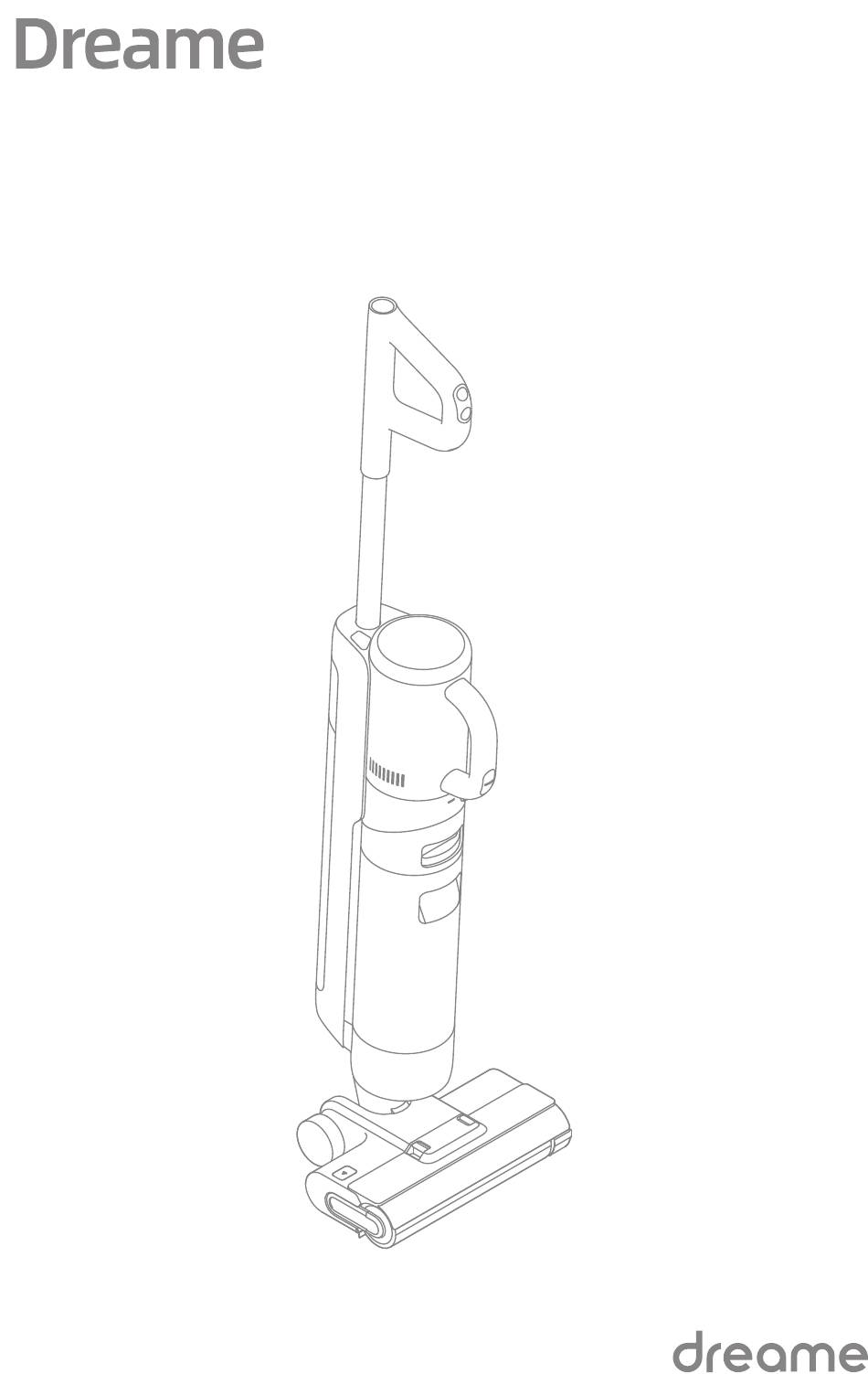

- Page 1 M M 1 1 2 2 Wet and Dry Vacuum User Manual The illustrations in this manual are for reference only. Please refer to the actual product.
- Page 2 FOR PURCHASING THIS DREAME WET AND DRY VACUUM. Registration Quick Start Welcome to register a Dreame account by scaning the QR code. You are available for the User Manual and Special Offers. With it you are obtaining a high quality product that is engineered for optimal performance.
-
Page 3: Safety Information
Safety Information Important Safety Instructions For Household Use Only • Please read this manual carefully before use and retain it for future reference. • When using an electrical appliance, basic precautions should always be followed, including the following: • READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 4 Safety Information • Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.). Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc. • Do not use the appliance in an enclosed space filled with vapour given off by oil- based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapour. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
- Page 5 Motorized cleaning head for water suction cleaning We, Dreame Trading (Tianjin) Co., Ltd., hereby declares that this equipment is in compliance with the applicable Directives, European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com...
-
Page 6: Product Overview
Product Overview Packing List Charging Storage Box Dust Cup Power Base Assembly Adapter Replacement Storage 2-in-1 Crevice Spare Brush Filter Mount Nozzle Roller Main Body Handle Cleaning Brush... - Page 7 Product Overview Wet and Dry Vacuum Floor Washer Used Water Tank Clean Water Tank Self-Cleaning Button Release Button Mode Switch Used Water Tank Clean Water Tank Handle Handle Clean Water Tank Release Power Switch Used Water Tank Button Handvac Release Button Brush Roller Cover Voice Prompt Button •...
-
Page 8: Charging Base
Product Overview Charging Base Charging Port 2 Charging Contacts Display Screen Suction Mode Error Message Standard Mode Insufficient water in the Battery Status Auto Mode Indicator Clean Water Tank Self-Cleaning Dirt Level Indicator Used Water Tank full / Press briefly to enable this Used Water Tank not installed The color of the indicator function (battery level ≥... -
Page 9: Handle Installation
Installation Handle Installation Insert the end of the handle vertically into the port on the top of the appliance as indicated until you hear a click. 咔哒 Click Note: To disassemble, extend a hard object into the hole on the back of the appliance to press contacts and pull the handle upwards at the same time. - Page 10 Charging 1. Place the charging base against a wall on level ground and connect it to a power source. Fully charge the appliance before first use. 2. Place the appliance on the charging base, the on the screen will light up to indicate the charging status. When charging, the number on the display screen represents the current battery level as a percentage.
-
Page 11: How To Use
How to Use Working Modes The appliance is powered on in Auto mode by default, you can switch to Suction mode as needed. Auto Mode While washing the floor, the appliance can adjust its suction power according to different situations. Suction Mode If Suction mode is selected, the appliance will vacuum water only and the brush roller will not be dampened. - Page 12 How to Use 2. Start cleaning: Gently step on the brush cover and recline the appliance backwards. Press the Power Switch to start operating, press the Mode Switch tto switch between the Auto mode and the Suction mode according to your needs. ＜140°...
- Page 13 How to Use One-Touch Self-Cleaning * The self-cleaning function can be enabled only when the appliance is being charged and the battery level is more than 15%. 1. After the appliance completes the cleaning task, place it back onto the base and make sure that the water in the Clean Water Tank is sufficient for self-cleaning.
- Page 14 How to Use Using as a Handheld Vacuum 1. Press the handvac release button to remove the handvac. 2. Install the dust cup assembly and other attachments as shown in the diagram until you hear a click. 3. Briefly press the handvac Power Switch to start operating. Briefly press the handvac mode switch to switch between Standard mode and Turbo mode according to your...
- Page 15 How to Use Using Different Attachments 2-in-1 crevice nozzle: For cleaning corners, stairs, sofas, coffee tables and other narrow spaces. Storage mount: If the dust cup assembly and the 2-in-1 crevice nozzle are not in use, store them on the storage mount as shown in the diagram. Storage box: Store the cleaning brush, the filter, and the brush roller on the storage box as shown in...
-
Page 16: Care And Maintenance
Care and Maintenance Tips: • Turn off the appliance before performing care and/or maintenance. Do not touch the Power Switch. • Replace parts if needed. The parts must be replaced by those available from the manufacturer or its service agent. •... - Page 17 Care and Maintenance Cleaning the Tube and the Dirt Sensor Remove the Used Water Tank, wipe the tube and the dirt sensor with a wet cloth before use. Cleaning the Dust Cup Assembly * Cleaning the dust cup after each use or after the amount of dust in the cup reaches the MAX line is recommended.
-
Page 18: Cleaning The Brush Assembly
Care and Maintenance Cleaning the Brush Assembly * Clean as needed. Alternating use of the two provided brush rollers is recommended. * Replacing the brush roller every 3 to 6 months is recommended. 2. Clean out any hair and debris tangled 1. First, press the brush roller cover on the brush roller with the provided release buttons inwards on both sides cleaning brush. - Page 19 If an error occurs, the appliance will stop working. Please refer to the following table for troubleshooting. If the problem persists, please contact the customer service. Error Possible Cause Solution The appliance is out of battery or Fully charge its battery before use. its battery level is low.
- Page 20 Tank. Water Tank is full. The Clean Water Tank is not installed in place, or the water Fill or re-install the Clean Water in the Clean Water Tank is Tank. insufficient. For additional services, please contact us via aftersales@dreame.tech Website: https://global.dreametech.com...
-
Page 21: Troubleshooting
Troubleshooting If the appliance is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to find your solution. Error Icon Possible Cause Solution Insufficient water in Clean Fill the Clean Water Tank. Water Tank Used Water Tank not installed Install the Used Water Tank. -
Page 22: Specifications
Specifications Wet and Dry Vacuum Floor Washer Model HHV3 Charging Time Approx. 5 hours Rated Voltage 21.6 V Charging Voltage 26 V Used Water Tank Clean Water Tank 700 mL 900 mL Capacity Capacity Rated Power 300 W Power Adapter No-load Power Model YLS0251B-E260090... - Page 23 Battery Disposal and Removal The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility. – the battery must be removed from the appliance before it is scrapped; – the appliance must be disconnected from the supply mains when removing the battery; – the battery is to be disposed of safely.
