On/off electric spring return valve actuators

Advertisement

Quick Links

VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2
VA9204-Bxx-2 Series On/Off Electric Spring Return Valve
Actuators
Installation Guide
Applications
VA9204-Bxx-2 Series on/off electric spring return actuators
are direct-mount valve actuators that operate on 24 VAC
power at 50/60 Hz, 24 VDC power, or 85 VAC to 264 VAC
power at 50/60 Hz. These bidirectional actuators are used for
on/off control on Johnson Controls® VG1000 Series 1/2 in.,
3/4 in., and 1 in. (DN15, DN20, and DN25) ball valves in
HVAC applications.
An integral line voltage auxiliary switch, available only on
the VA9204-xxB-2 models, indicates end-stop position, or
performs switching functions within the selected rotation
range.
IMPORTANT: Use this VA9204 Series valve actuator only
to control equipment under normal operating conditions.
Where failure or malfunction of the VA9204 Series
valve actuator could lead to personal injury or property
damage to the controlled equipment or other property,
additional precautions must be designed into the control
system. Incorporate and maintain other devices, such as
supervisory or alarm systems or safety or limit controls,
intended to warn of or protect against failure or malfunction
of the VA9204 Series valve actuator.
IMPORTANT : Utiliser ce VA9204 Series valve actuator
uniquement pour commander des équipements dans
des conditions normales de fonctionnement. Lorsqu'une
défaillance ou un dysfonctionnement du VA9204 Series
valve actuator risque de provoquer des blessures
ou d'endommager l'équipement contrôlé ou un autre
équipement, la conception du système de contrôle doit
intégrer des dispositifs de protection supplémentaires.
Veiller dans ce cas à intégrer de façon permanente
d'autres dispositifs, tels que des systèmes de supervision
ou d'alarme, ou des dispositifs de sécurité ou de limitation,
ayant une fonction d'avertissement ou de protection en cas
de défaillance ou de dysfonctionnement du VA9204 Series
valve actuator.
Installation
Install the ball valve with the actuator at or above the center
line of the horizontal piping (see Figure 1).
IMPORTANT: In steam applications, install the valve with
the stem horizontal to the piping. Failure to follow this
precaution may shorten the life of the actuator.

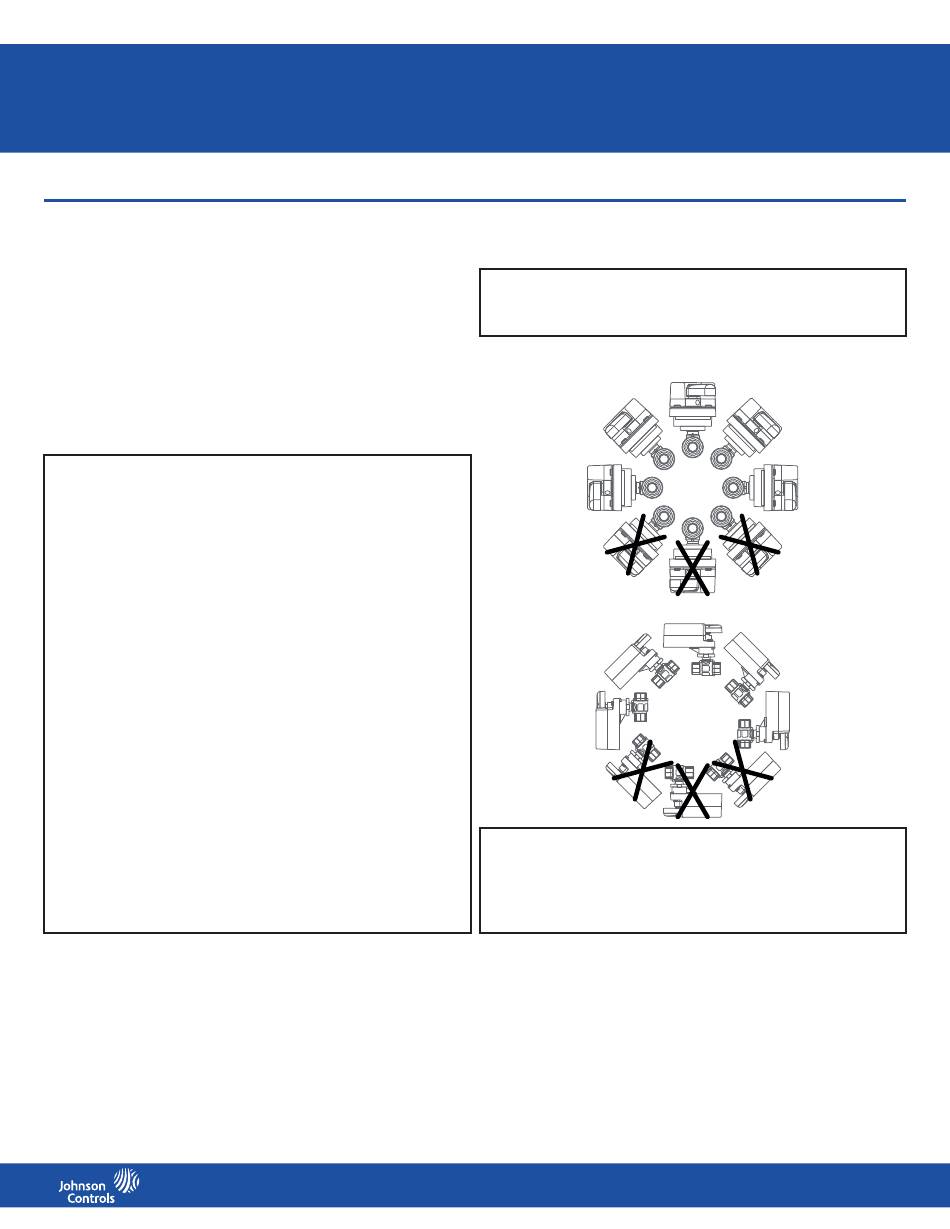

Figure 1: Mounting positions for chilled water and
condensing atmosphere applications
IMPORTANT: Do not install or use this VA9204 Series
valve actuator in or near environments where corrosive
substances or vapors could be present. Exposure of
the actuator to corrosive environments may damage the
device's internal components, and will void the warranty.
Special tools needed
• Digital voltmeter
• T-20 TORX® driver
1
LIT-12014315 Rev.
July 2023
LIT-12014315 Rev. —

Advertisement

loading
Need help?

Need help?

Do you have a question about the VA9204-B-2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls VA9204-B-2 Series

  • Page 1 50/60 Hz. These bidirectional actuators are used for the stem horizontal to the piping. Failure to follow this on/off control on Johnson Controls® VG1000 Series 1/2 in., precaution may shorten the life of the actuator. 3/4 in., and 1 in. (DN15, DN20, and DN25) ball valves in HVAC applications.
  • Page 2 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 Dimensions Valve actuator See Figure 2, Table 1, and Table 2 for dimensions of spring return VA9204 Series-actuated ball valves. Figure 2: Spring return VA9204-actuated VG1241, VG1245, VG1841, and VG1845 Series ball valve dimensions, in. (mm) 3 1/2 (89) Clearance required 3 1/4 (82)
  • Page 3: Repair Information

    Repair information A number of replacement parts are available; see Table 4 for more details. If a VA9204 Series electric actuator fails to operate within its specifications, replace the unit. For a replacement electric actuator, contact the nearest Johnson Controls representative.
  • Page 4 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 Mounting 4. Insert the drive shaft into Side B (Figure 6). The drive shaft is keyed for one-way assembly. With gentle pressure Mounting the actuator to spring return Port A (coil) open applied, rotate the drive shaft until the key aligns and the To mount the actuator to spring return Port A (coil) open: drive shaft falls into place.
  • Page 5 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 6. Insert the fixed pointer and M4x0.7x83 mm long screw into Mounting the actuator to spring return Port A (coil) the Side A actuator hub (Figure 8). Direct the arrow on the closed pointer to 100%. To mount the actuator to spring return Port A (coil) closed: Figure 8: Installing the fixed pointer 1.
  • Page 6 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 4. Insert the drive shaft into Side A (Figure 12). The drive shaft 6. Insert the fixed pointer and M4x0.7x83 mm long screw into is keyed for one-way assembly. With gentle pressure the Side B actuator hub (Figure 14). Direct the arrow on the applied, rotate the drive shaft until the key aligns and the pointer to 0%.
  • Page 7 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 Mounting the thermal barrier 2. Rotate the drive shaft to align marks on the top of the Figure 16 shows the optional M9000-561 Thermal Barrier. thermal drive shaft with matching marks on the valve stem. 3. Mount the thermal barrier onto the valve using the four Figure 16: Optional M9000-561 Thermal Barrier included M5x16 mm machine screws and four M5 flange Machine screws...
  • Page 8 VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 Wiring WARNING: Risk of electric shock. See Figure 19 and Figure 20 to wire the applicable Disconnect or isolate all power supplies before VA9204-Bxx-2 Series model. making electrical connections. More than one Figure 19: Control wiring diagrams disconnection or isolation may be required to completely de-energize equipment.
  • Page 9: Setup And Adjustments

    VA9204-BGA-2, VA9204-BGB-2, VA9204-BUA-2, VA9204-BUB-2 Setup and adjustments WARNING: Risk of property damage. Auxiliary switch (VA9204-xxB-xx models) Insulate and secure each unused wire lead before applying power to the actuator. Failure to insulate WARNING: Risk of electric shock and property and secure each unused wire lead may result in damage.
  • Page 10: Technical Specifications

    Similar Use; and CSA C22.2 No. 24-93 Temperature Indicating and Regulating Equipment. Europe Johnson Controls declares that this products is in compliance with the essential requirements and other relevant provisions of the EMC Directive and Low Voltage Directive and equivalent UK regulations.
  • Page 11 Branch offices: Principal cities worldwide Johnson Controls® is a registered trademark of Johnson Controls. All other marks herein are the marks of their respective owners. © Copyright 2023 Johnson Controls. All rights reserved. Any unauthorized use or copying is strictly prohibited. www.johnsoncontrols.com...
