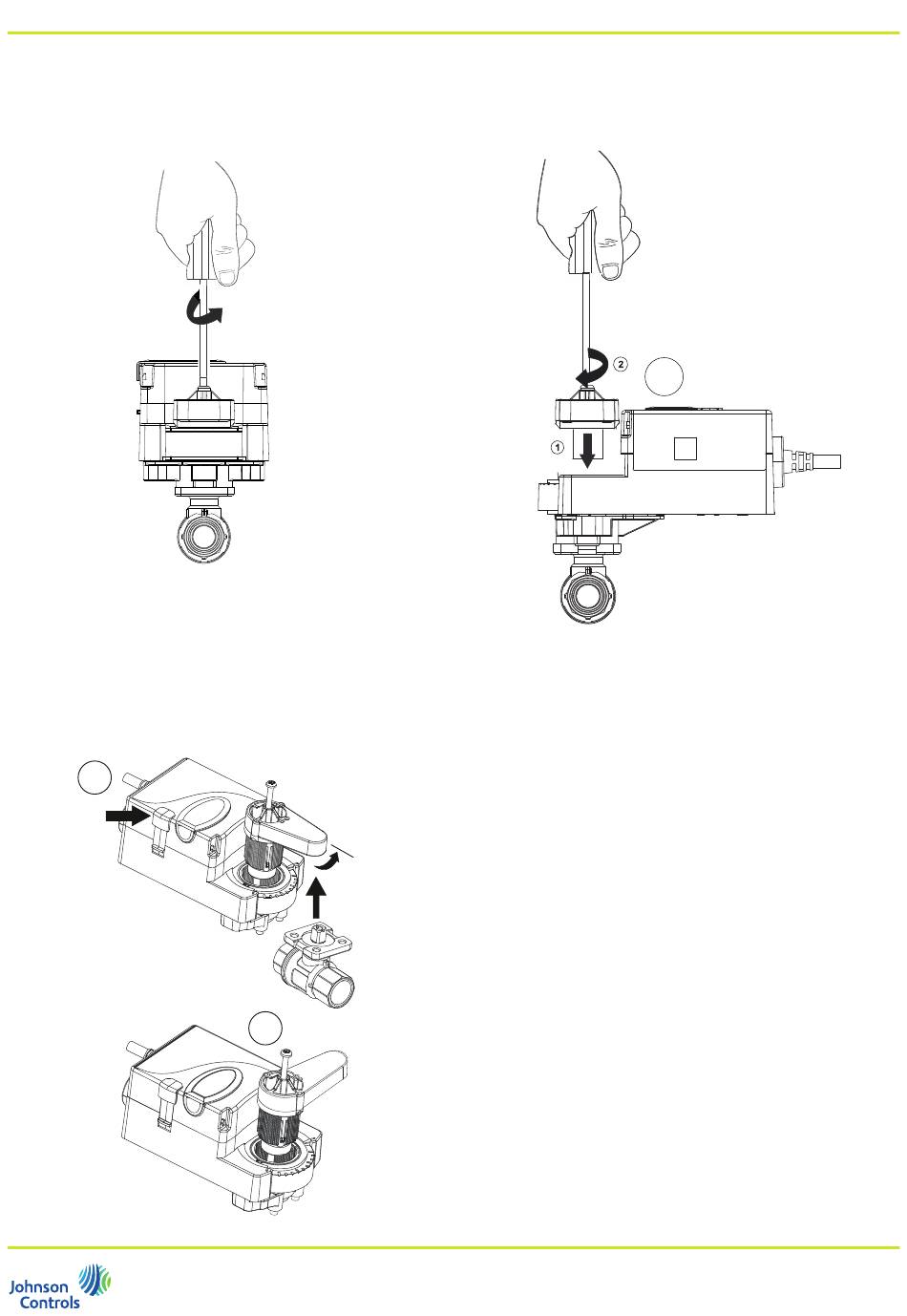

Mounting the Actuator Perpendicular to the Valve
1. Loosen but do not remove the screw that holds the
actuator to the valve.
2. Remove the actuator from the valve.
3. Press and hold the gear release.
The actuator should be against the internal CCW stop.
4. Lift the handle out of the actuator and rotate 90°
counterclockwise.
A
90°
B
5. Reinsert the handle perpendicular into the actuator and
tighten the handle screw.
PB_VA9300_05 2020
C
