Actuator and six-way valves

Advertisement

VA9905 Actuator and
VG1600 Series Six-Way Valves
Installation Instructions
14-88360-03206, Rev. -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VG1600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnson Controls VG1600 Series

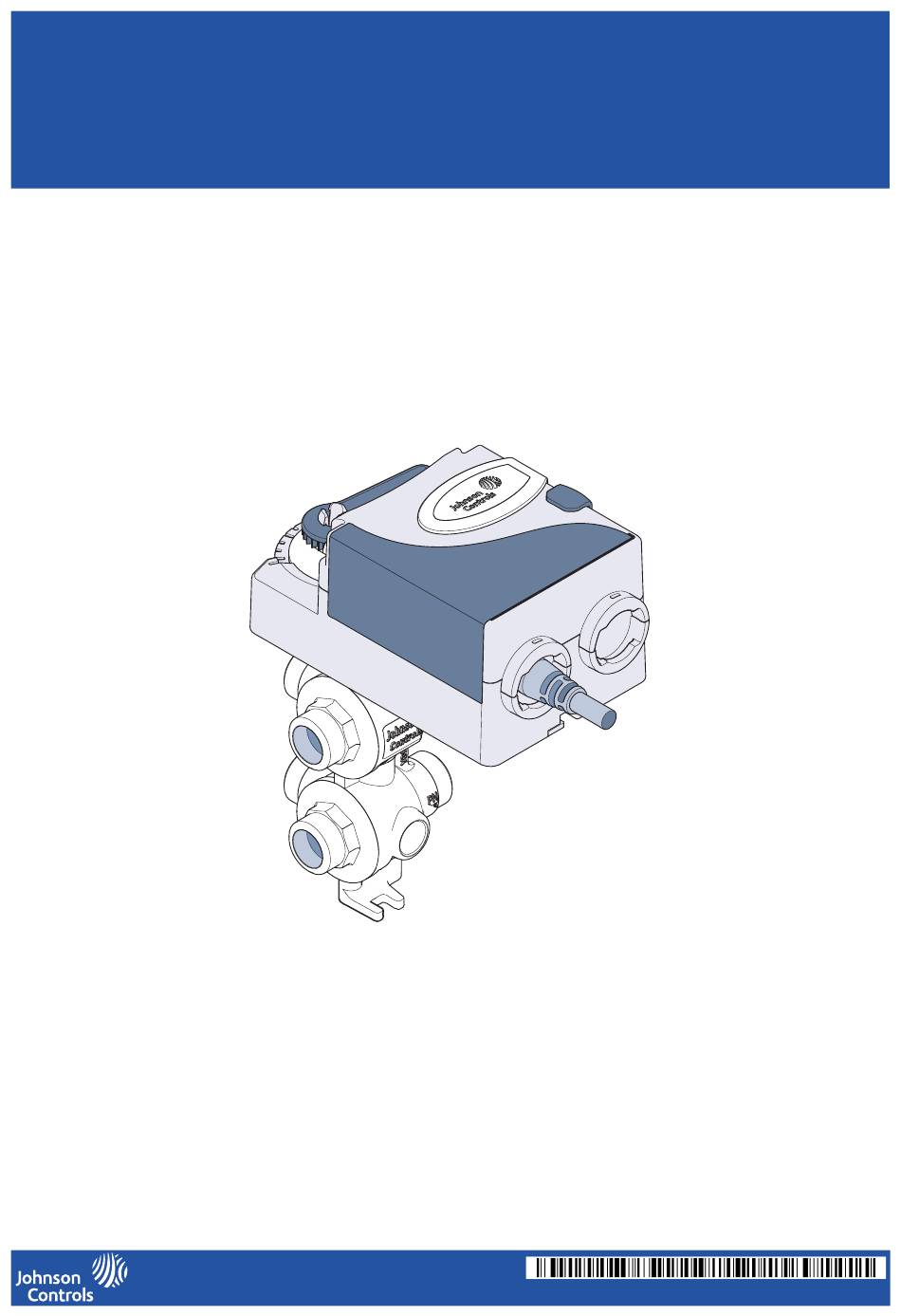

  • Page 1 VA9905 Actuator and VG1600 Series Six-Way Valves Installation Instructions 14-88360-03206, Rev. -...
  • Page 2: Table Of Contents

    Provides a conduit adapter that protects the input cable. Support Information European Single Point of Contact: NA/SA Single Point of Contact: APAC Single Point of Contact: Johnson Controls Johnson Controls Johnson Controls Westendhof 3 507 E Michigan Street C/O Controls Product Management...
  • Page 3: Parts Included

    Parts Included VA9905 Actuator VG1600 Series Valve Two Flow Disk Sets Two Ring Nuts Tools Required • 8mm (5/16 in) slotted screwdriver or a TORX® T-20 driver 14-88360-03206, Rev. A...
  • Page 4: Flow Disk Set

    Flow Disk Set Disassembly Disk Storage Installation Note: Use blue restriction disks with cold water and red disks with hot water only. Flow restriction disks have markings that indicate the rate of restriction they provide. Using the supplied restriction disks, you can set the following flow rates in ports 4 and 6: Disk Opening Smallest Small...
  • Page 5: Installing The Six-Way Valve To A System

    Installing the Six-way Valve to a System The diagram below illustrates the input and output flows for the 6-way valve. Use this diagram as a guide on how to install the 6-way valve to your system. Note: Valve port 2 must only be used as coil supply. Valve port 3 must only be used as coil return. Valve port Description Analog Input Control Source 1 supply Controlled by the gray wire...
  • Page 6: Attaching The Actuator To The Six-Way Valve

    Attaching the Actuator to the Six-Way Valve Note: The VA9905 Actuator fits VG1600 series valves only. Use the valve key to adjust the valve stem Ensure the valve stem is aligned as shown. to a 90° angle, away from the curved section.
  • Page 7: Setting The Dip Switches

    Setting the DIP Switches AC 24 V DC 0 (2) .10V RED GRY ORN AC 24 V DC 0 (2) .10V RED GRY ORN Remove the dip switch cover by placing your You now have access to the actuator dip switches. finger behind it and pulling it toward yourself.
  • Page 8: Manual Override And Flow Direction

    Manual Override and Flow Direction The manual override lever is used to indicate which ports are in use. In the absence of power to the actuator, manually set the pointer to the desired position to regulate the flow of the valve.
  • Page 9: Va9905 Technical Specifications

    The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
  • Page 10: Vg1600 Valve Series Technical Specifications

    The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
