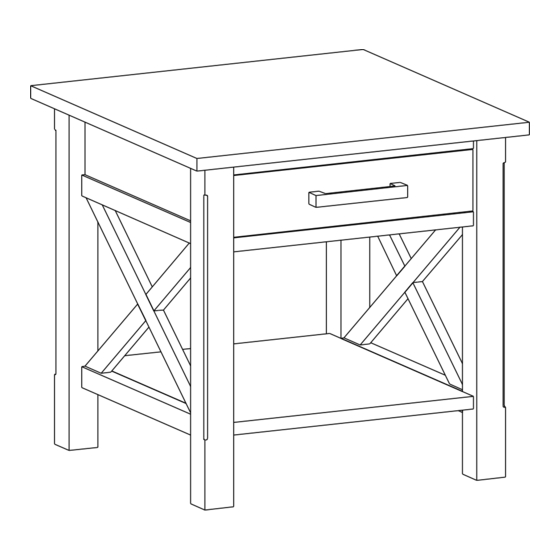

- Page 1 Kitchener / Waterloo / Providence End Table Model # 3AXCRGL002-SB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Drawer Bottom
Pre-Assembly Information Model # 3AXCRGL002-SB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BACK PANEL FRONT BAR QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM... - Page 8 Pre-Assembly Information Model # 3AXCRGL002-SB Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 10 QTY 10 SETS HANDLE WOOD DOWEL M4 X 25 mm Ø8 X 30 mm QTY 1 SET QTY 16 Required - Flathead screwdriver...
- Page 9 Components - Key Diagram Model # 3AXCRGL002-SB...
- Page 10 Assembly Model # 3AXCRGL002-SB Step 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front F . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides GL , GR . 3. Insert 2 Cam Lock 2 into guide holes on each Drawer Side GL , GR . 4.
- Page 11 Assembly Model # 3AXCRGL002-SB Step 3 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 12 Assembly Model # 3AXCRGL002-SB Step 5 1. Insert 4 Dowels 5 into of each Back Panel C , Front Bar E and Bottom Shelf D . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # 3AXCRGL002-SB Step 6 1. Insert 2 Dowels 5 into top corners of each Side BL , BR . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
