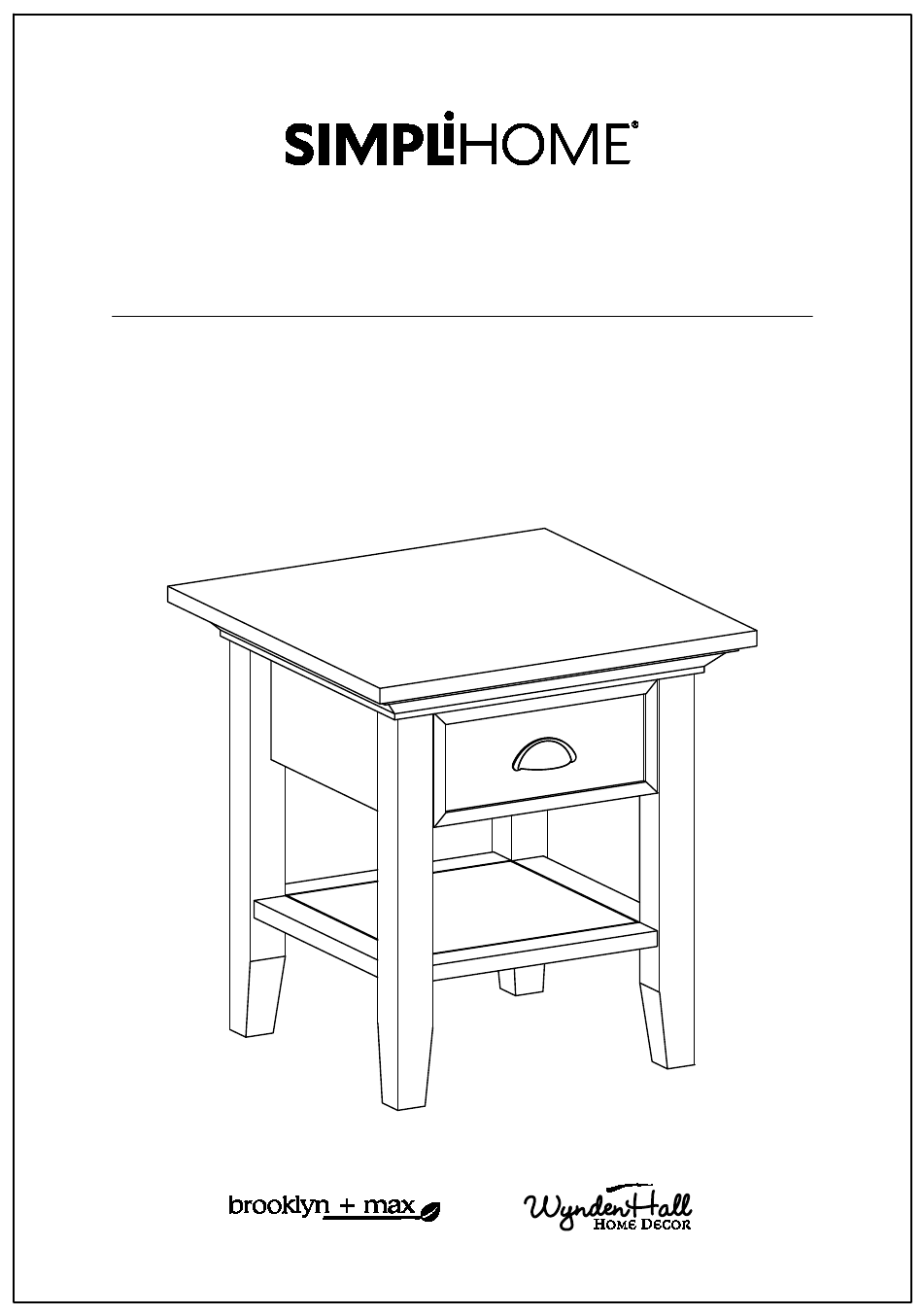

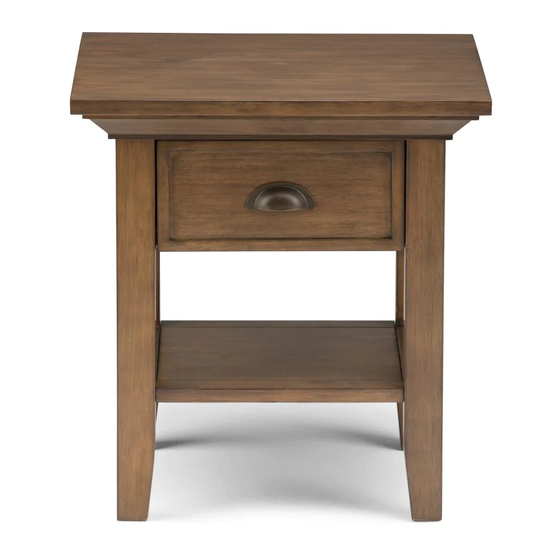

- Page 1 Redmond / Mansfield / Stanwick End Table Model # 3AXCADM-02...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
- Page 6 Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
-
Page 7: Bottom Shelf
Pre-Assembly Information Model # 3AXCADM-02 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BACK PANEL BOTTOM SHELF DRAWER FRONT QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 1 QTY 1 QTY 1 DRAWER BOTTOM QTY 1... - Page 8 Pre-Assembly Information Model # 3AXCADM-02 Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm CAM LOCK ALLEN KEY QTY 8 QTY 14 SETS QTY 1 Required - Flathead screwdriver HANDLE Phillips screwdriver M4 X 10mm Not Included QTY 1 SET...
- Page 9 Components - Key Diagram Model # 3AXCADM-02...
- Page 10 Assembly Model # 3AXCADM-02 Step 1 1. Attach four Cam Lock Pins 3 to back of Drawer Front E . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides FL , FR . 3. Insert two Cam Locks 3 into pre-drilled holes on each Drawer Side FL , FR . 4.
- Page 11 Assembly Model # 3AXCADM-02 Step 3 1. Align Drawer Back G with Drawer Bottom H and press firmly into slot. 2. Attach back using two Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 2 to tighten Screws. Do not over-tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 12 Assembly Model # 3AXCADM-02 Step 5 1. Attach five Cam Lock Pins 3 to each Side AL , AR using guide holes. 2. Align Cam Lock Pins with pre-drilled holes on Bottom Shelf C and Back Panel D . 3. Insert ten Cam Locks 3 into pre-drilled holes on Bottom Shelf C and Back Panel D . 4.
- Page 13 Assembly Model # 3AXCADM-02 Step 6 1. Attach Top B to Sides AL , AR using four Allen Key Screws 1 (two screws on each Side). 2. Use Allen Key 2 to tighten. Do not over-tighten. Step 7 1. Insert assembled drawer into glides on assembled table.
