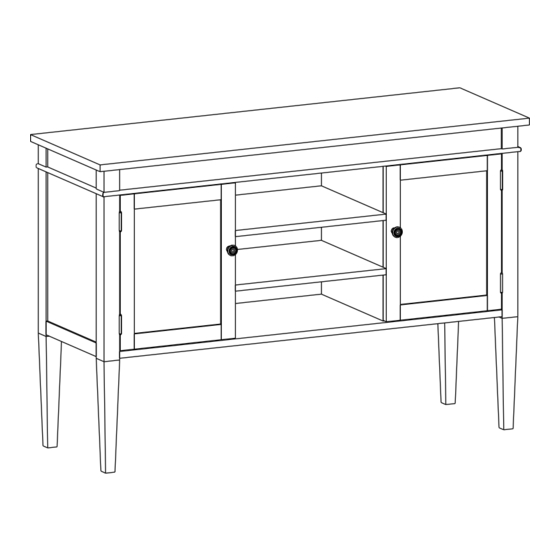

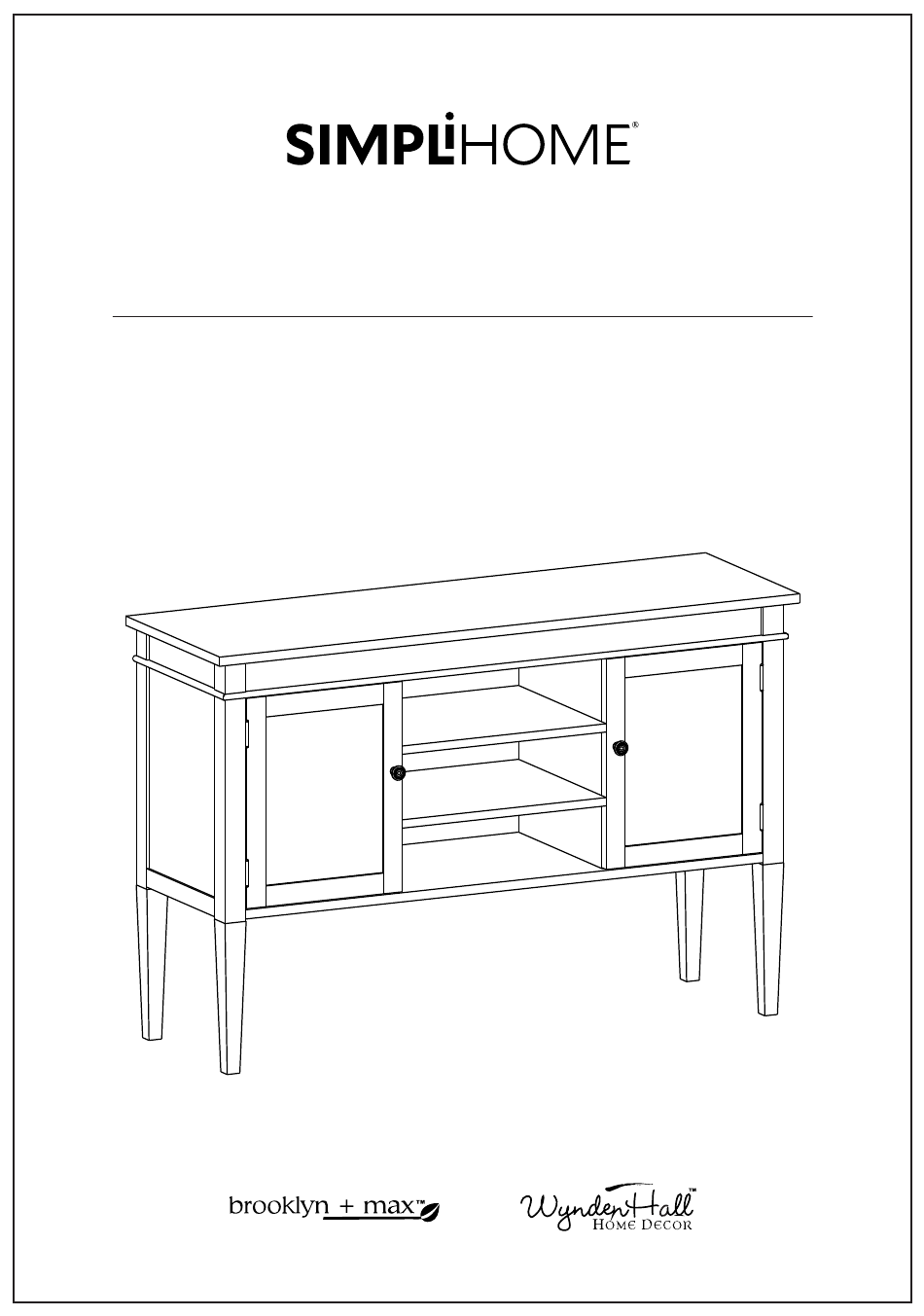

- Page 1 Carlton / Richland / Sterling Tall TV Media Stand Model # 3AXCCRL-04...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 60 inch (152.4 cm). - Page 8 Pre-Assembly Information Model # 3AXCCRL-04 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM PANEL QTY 1 QTY 1 QTY 1 LEFT CABINET SHELF RIGHT CABINET SHELF CABINET SHELF QTY 1 QTY 1 QTY 2...
- Page 9 Pre-Assembly Information Model # 3AXCCRL-04 Part Description Warning Label DOOR (L&R Same) LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1 MIDDLE BACK PANEL FRONT BAR QTY 1 QTY 1...
- Page 10 Pre-Assembly Information Model # 3AXCCRL-04 Hardware Descrip on ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm CAM LOCK ALLEN KEY QTY 18 QTY 7 SETS QTY 1 PHILLIPS SCREW HANDLE WOOD DOWEL ROUND HEAD M4 X 25 mm Ø8 X 30 mm M4 X 15 mm QTY 2 SETS...
- Page 11 Components - Key Diagram Components - Key Diagram Model # 3AXCCRL-04 Model # 3AXCCRL-04...
- Page 12 Assembly Model # 3AXCCRL-04 Step 1 1. Insert Wood Dowels 6 into guide holes of Dividers CL , CR . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 13 Assembly Model # 3AXCCRL-04 Step 2 1. Insert Wood Dowels 6 into guide holes of Bottom Panel D and Front Bar I . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. Attach Cam Lock Pins 2 to Sides BL , BR using pre-drilled holes.
- Page 14 Assembly Model # 3AXCCRL-04 Step 3 1. Insert 2 Dowels 6 into corners of each Side BL , BR. 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach Cam Lock Pins 2 to Top A using pre-drilled holes. 4.
- Page 15 Assembly Model # 3AXCCRL-04 Step 4 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panels HL , HR , H to back of TV Stand using Phillips Screws Round Head 5 into guide holes. 2.
- Page 16 Assembly Model # 3AXCCRL-04 Step 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Doors G to Sides BL , BR using Phillips Screws 10 . 2. Attach Magnet Plates 7 to Bottom corner of Doors G using Phillips Screws 9 into pre-drilled holes on Doors G .
- Page 17 Assembly Model # 3AXCCRL-04 Step 6 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 8 for each shelf EL , ER & F in desired location. 2. 2 Shelf Supports 8 may be used on back top of each Shelf EL , ER & F as a tipping restraint.
- Page 18 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 19 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
