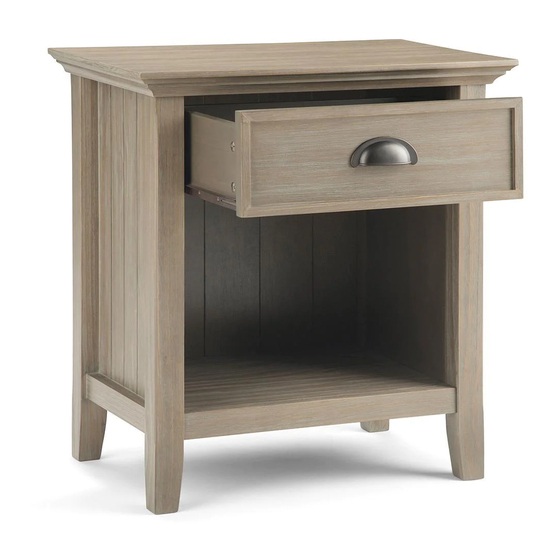

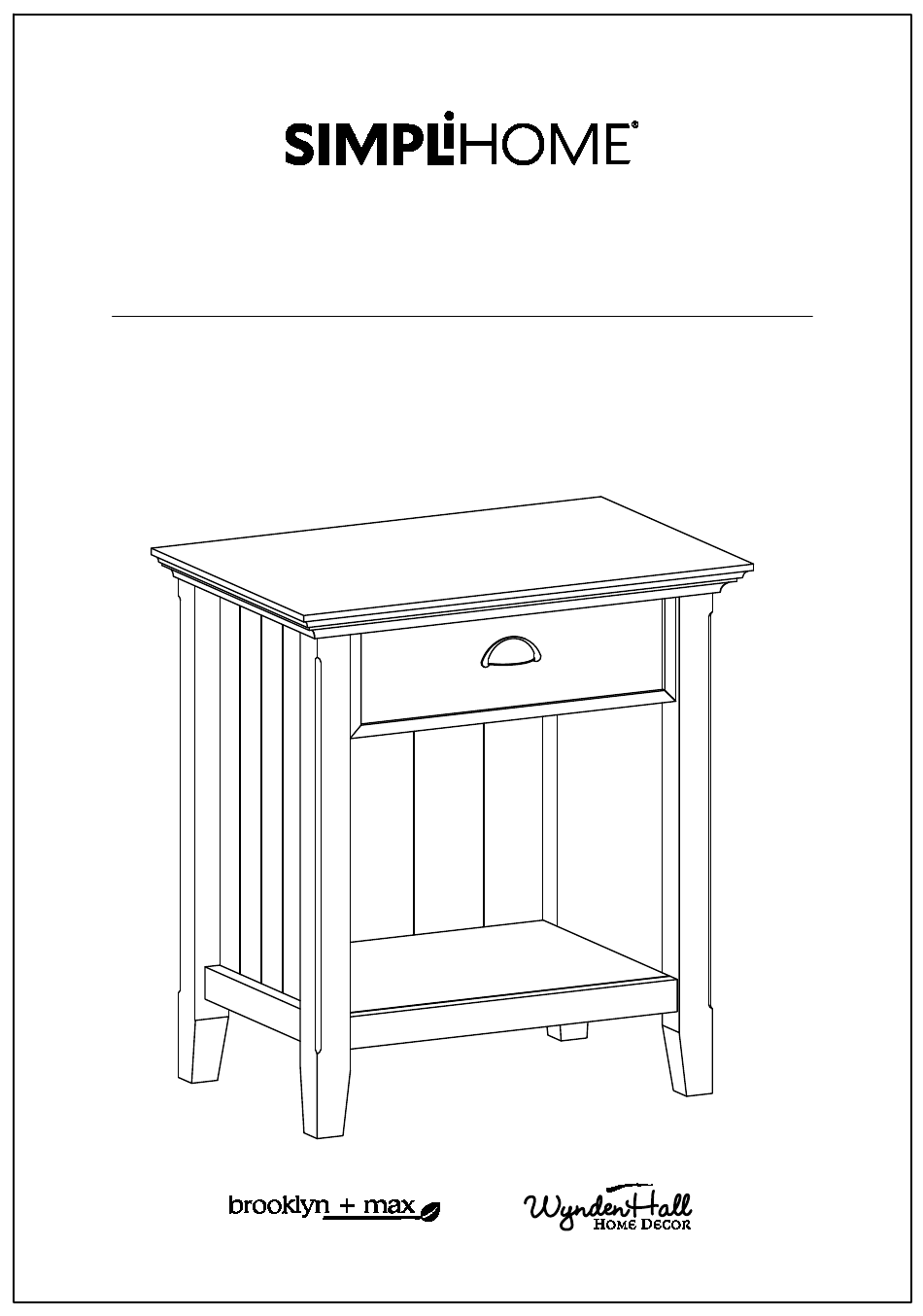

- Page 1 Acadian / Normandy / Brunswick Bedside Table Model # 3AXCACA-02GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # 3AXCACA-02GR Part Description V16-A V16-B V16-CL LEFT SIDE BOTTOM SHELF QTY 1 QTY 1 QTY 1 V16-CR V16-D V16-E RIGHT SIDE BACK PANEL BACK PANEL QTY 1 QTY 1 QTY 1 V16-F V16-GL V16-GR LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER FRONT QTY 1...
- Page 8 Pre-Assembly Information Model # 3AXCACA-02GR Hardware Description CAM LOCK PIN ALLEN KEY BOLTS ALLEN KEY SCREW CAM LOCK M6 X 30mm M6 X 30mm QTY 4 SETS QTY 8 QTY 4 PHILLIPS SCREW HANDLE ROUND HEAD M4 X 12mm ALLEN KEY M4 X 15mm QTY 1 SET QTY 1...
- Page 9 Components - Key Diagram Model # 3AXCACA-02GR V16-A V16-D V16-CR V16-CL V16-E V16-B V16-GR V16-H V16-GL V16-I V16-F...
- Page 10 Assembly Model # 3AXCACA-02GR Step 1 V16-GR V16-GL V16-F 1. Attach 4 Cam Lock Pins 3 into pre-drilled holes back of Drawer Front V16-F . 2. Align Cam Lock Pins with Drawer Sides’s guide holes before attach the Cam Lock Pins into Drawer Sides V16- V16- 3.
- Page 11 Assembly Model # 3AXCACA-02GR Step 3 V16-H V16-GR V16-I V16-GL V16-F 1. Align Drawer Back V16-H with Drawer Bottom V16-I and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through guide holes on each Side V16- V16- GL ,...
- Page 12 Assembly Model # 3AXCACA-02GR Step 5 V16-CR V16-B V16-CL 1. Attach Bottom Shelf V16-B to Sides V16- V16- using 4 Allen Key Bolts 1 CL , ( 2 Bolts / each Side ). 2. Use Allen Key 5 to tighten bolts. Do not over-tighten.
- Page 13 Assembly Model # 3AXCACA-02GR Step 6 V16-CL V16-A V16-B V16-CR 1. Attach Top V16-A to Sides V16- V16- using 4 Allen Key Bolts 1 CL , ( 2 Bolts / each Side ). 2. Use Allen Key 5 to tighten bolts. Do not over-tighten.
- Page 14 Assembly Model # 3AXCACA-02GR Step 7 NOTE: The screwdriver is not included in the hardware pack. V16-D V16-E 1. Use Phillips screws Round Head 6 to attach Back Panels V16-D , V16-E through guild holes from Back Panels to the back of Bedside Table. 2.
- Page 15 Assembly Model # 3AXCACA-02GR Step 8 1. Insert assembled drawer into glides on assembled table.
