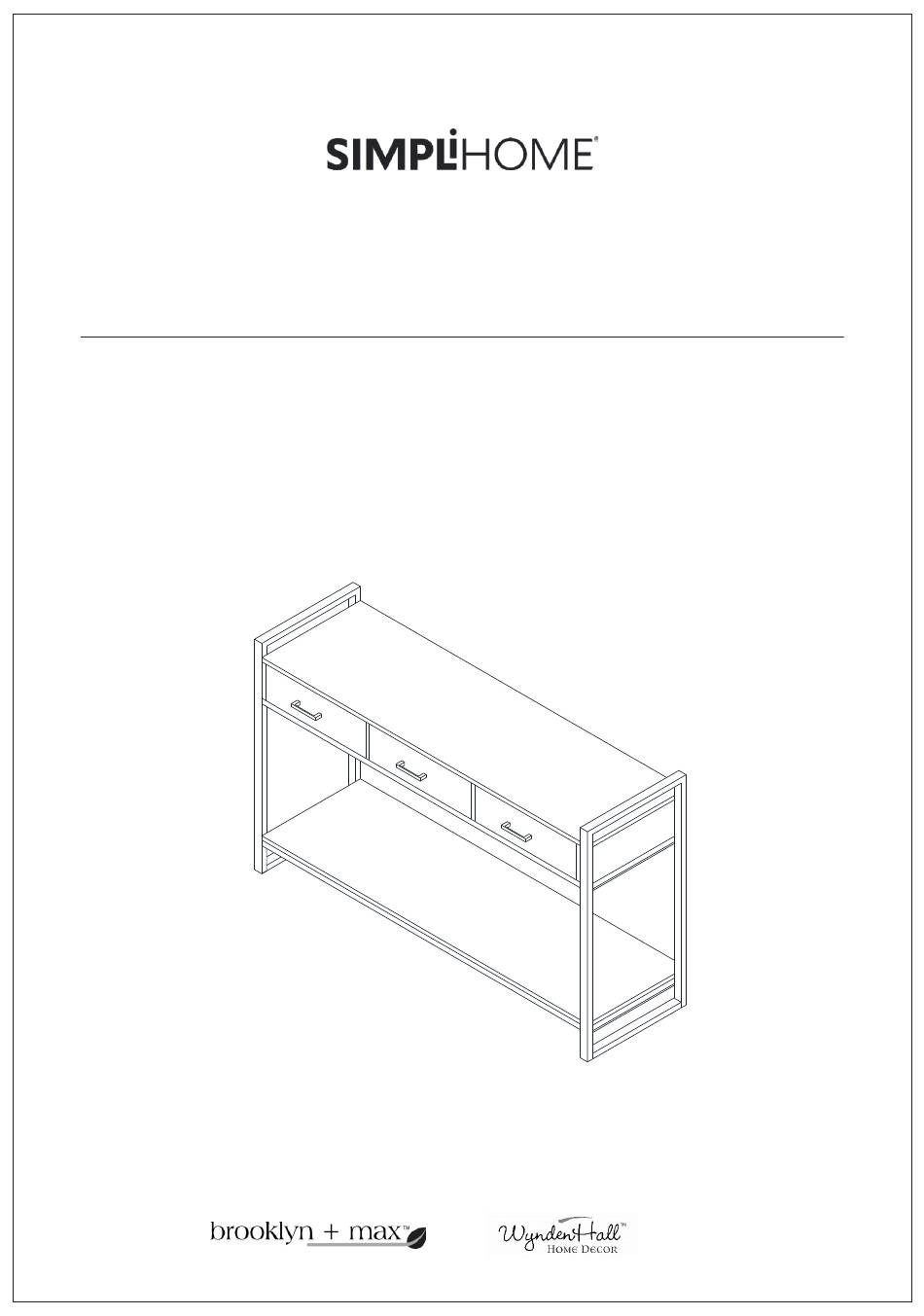

- Page 1 Riverside / Lawson / Cayley Console Sofa Table MODEL # 3AXCRIV-03...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your entire purchase! simpli-home.com/share-images...
- Page 4 For fastest customer service Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. WARNING: This item contains small parts which can be swallowed by children and pets. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. To protect against the humidity effect, the metal is powder coated. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # 3AXCRIV-03 Part Description SIDE SHELF QTY 2 QTY 1 QTY 1 Hardware Description ALLEN KEY BOLT ALLEN KEY LOCK WASHER M8 X 20 mm 5 mm Ø15 / Ø8.5 x 3 mm QTY 16 QTY 1 QTY 12 WASHER ALLEN KEY... - Page 8 Components - Key Diagram Model # 3AXCRIV-03...
- Page 9 Assembly Model # 3AXCRIV-03 Step 1 Ribbon 1. Place Top A on a flat, smooth surface. 2. Pull the ribbon to open the drawer. 3. Using Allen Key 5 , remove the handle attached inside the drawer. 4. Attach the handle using the same Allen Key Bolts you removed and tighten using Allen Key 5 .
- Page 10 Assembly Model # 3AXCRIV-03 Step 2 1 3 4 1. Align one Side B to Top A by matching the letters P1 to P1 . 2. Use three Allen Key Bolts 1 , three Lock Washers 3 and three Washers 4 to attach Top A and Side B .
- Page 11 Assembly Model # 3AXCRIV-03 Step 3 1 3 4 1. Align second Side B to Top A by matching the letters P2 to P2 . 2. Use three Allen Key Bolts 1 , three Lock Washers 3 and three Washers 4 to attach Top A and Leg B .
- Page 12 Assembly Model # 3AXCRIV-03 Step 4 1. Place the assembled console sofa table on its side on a flat, smooth surface. 2. Slide Shelf C in side slots.
- Page 13 Assembly Model # 3AXCRIV-03 Step 5 1 3 4 1. Align Shelf C to Side B by matching the letters P1 to P1 . 2. Use three Allen Key Bolts 1 , three Lock washers 3 and three Washers 4 to attach Side B and Shelf C .
- Page 14 Assembly Model # 3AXCRIV-03 Step 6 1. Align Shelf C to the other Side B by matching the letters P2 to P2 . 2. Use three Allen Key Bolts 1 , three Lock Washer 3 and three Washers 4 to attach Side B and Shelf C .
- Page 15 Assembly Model # 3AXCRIV-03 Step 7 1. Use four Allen Key Bolts 1 to secure Top A and Sides B . 2. Use Allen Key 2 to tighten Bolts. Do not over-tighten.
- Page 16 Assembly Model # 3AXCRIV-03 Step 8 Note : Levelers on bottom of sides can be adjusted if floor is uneven.
