OLG AgileMotion+ Assembly Instructions Manual

Single sided desk
Hide thumbs

Advertisement

Quick Links

Download this manual

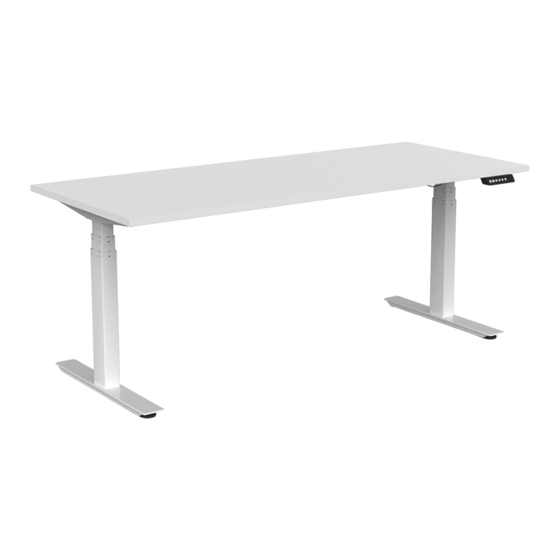

AgileMotion+ Single Sided Desk
Assembly Instructions

Advertisement

loading

Related Manuals for OLG AgileMotion+

Summary of Contents for OLG AgileMotion+

  • Page 1 AgileMotion+ Single Sided Desk Assembly Instructions...

  • Page 2: Components List

    AgileMotion+ Single Sided Desk Components List Check List QTY. A (4pcs) B (8pcs) C (12pcs) D (2pcs) M6x12mm M8x20mm ST5.0x23mm ST4.2x16mm AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 3 AgileMotion+ Single Sided Desk Assembly Instructions STEP 1: Be careful with the cable. AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 4 AgileMotion+ Single Sided Desk Assembly Instructions STEP 2: AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 5 AgileMotion+ Single Sided Desk Assembly Instructions STEP 3: A (2pcs) M6x12mm AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 6 AgileMotion+ Single Sided Desk Assembly Instructions STEP 4: A (2pcs) M6x12mm AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 7 AgileMotion+ Single Sided Desk Assembly Instructions STEP 5: Tighten the screws. AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 8 AgileMotion+ Single Sided Desk Assembly Instructions STEP 6: B (8pcs) M8x20mm AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 9 AgileMotion+ Single Sided Desk Assembly Instructions STEP 7: Loosen AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 10 AgileMotion+ Single Sided Desk Assembly Instructions STEP 8: Add a workstop with suggested distance from the edge. AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 11 AgileMotion+ Single Sided Desk Assembly Instructions STEP 9: D (12pcs) Standard frame with measurements so STU50 screens will fit. ST5.0x23mm AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 12 AgileMotion+ Single Sided Desk Assembly Instructions STEP 10: D (2pcs) ST4.2x16mm Left or Right AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 13 AgileMotion+ Single Sided Desk Assembly Instructions STEP 11: Tighten Plug in AgileMotion+ Single Sided Desk Assembly Instructions...
  • Page 14 AgileMotion+ Single Sided Desk Assembly Instructions STEP 12: AgileMotion+ Single Sided Desk Assembly Instructions...

  • Page 15: Setup And Installation

    AgileMotion+ Single Sided Desk Assembly Instructions IMPORTANT Please carefully read the assembly manual and direction for use prior to instalment, use and maintenance of the table frame to gain a complete understanding of its contents. It provides you with important information about the safety, use, installation and maintenance of the table. WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.

  • Page 16: Maintenance

    AgileMotion+ Single Sided Desk Assembly Instructions MAINTENANCE •The table does not require any maintenance by the user •The table is only to be cleaned with a wrung cloth. TECHNICAL DATA Height Range: 635-1290mm including worktop Speed: ~30mm/s Input Voltage: 90-230V AC 50-60Hz, 300VA Output Voltage: 24V DC Max.10A Duty Cycle: 10% max.
