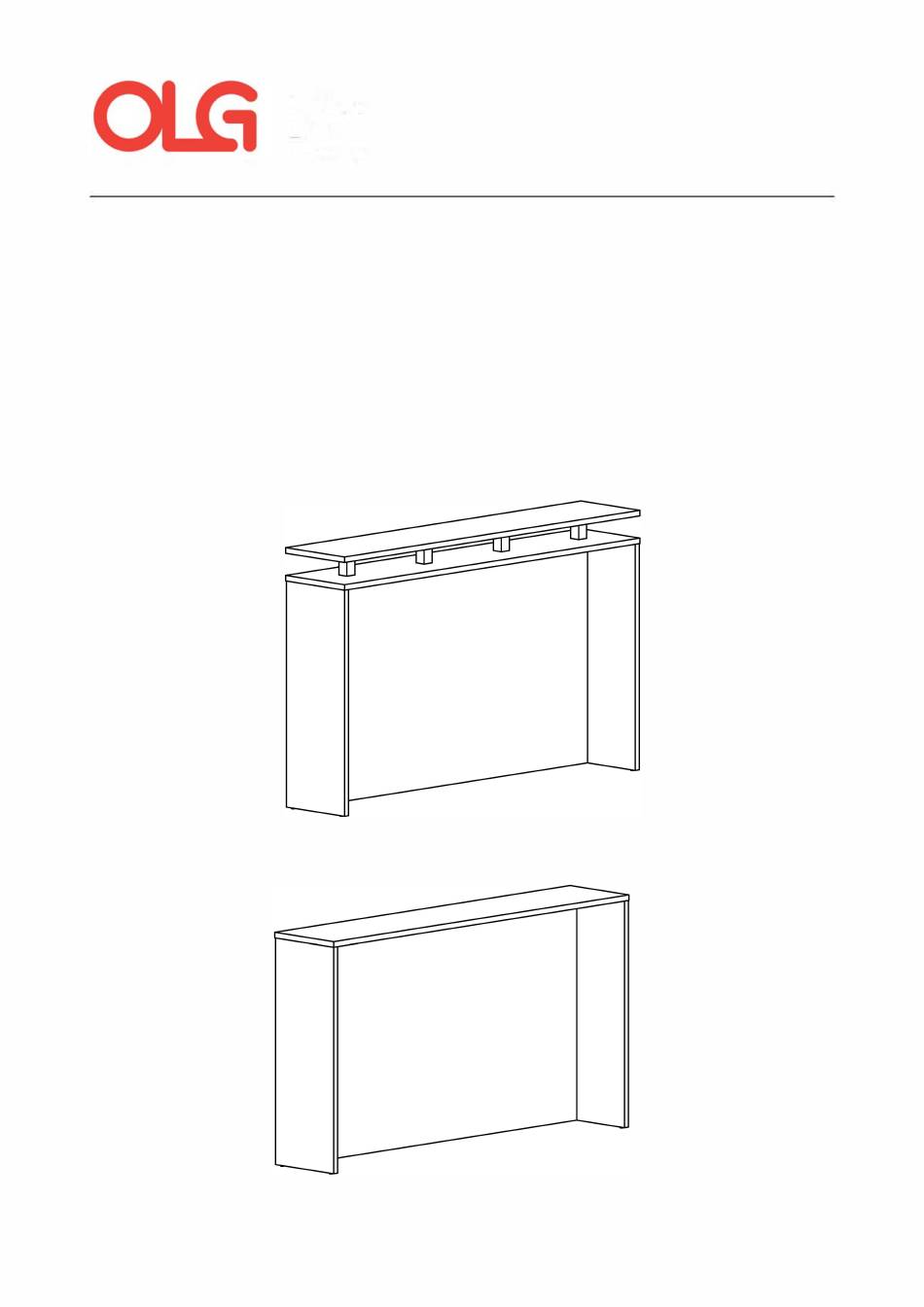

- Page 1 ASSEMBLY INSTRUCTION AXIS Reception Counter Main ITEM No.:AXRPDN18 & AXRDN18 OPTION 1 (see page 4-6 ) OPTION 2 (see page 7-9 ) PAGE...
- Page 2 Incorrect Correct The arrow direction front The turning direction of attaching OPTION 1 OPTION 2 PAGE...
-
Page 3: Parts List
PARTS LIST ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. 6*35 Cam Bolt Top panel Top panel 8*30 Dowel pin Left side panel (%") Cam Cover Right side panel Metal Stand Back panel Washer 6*90 Hexagon Fix Bolt 4 Spanner 8*30 Dowel Pin-16 Metal Stand -4 6*35 Cam Bolt-16 @ (Ys")Cam Cover-16... - Page 4 OPTION 1 STEP 1 Preparation for Top panel A, Back panel D,Left side panel X,Right side panel Z . 1, Insert cam bolts� and dowel pins@ into panel A ,D,X and Z as illustrated above. PAGE...
- Page 5 STEP 2 Top panel A and Top panel A1 assembly. 1 � Assemble Metal Stand with screws on Top panel A,A 1. STEP 3 Back panel D,Left side panel X and Right side panel Z assembly. 1 � Insert cam bolts@ and dowel pins@ on panel X and Z into cams on panel D and tighten in a clockwise direction as illustrated above.
- Page 6 STEP 4 Top panel A and Back panel D,Left side panel X,Right side panel Z assembly. 1 � Insert cam bolts@) and dowel pins@) on panel A into cams on panel X,Z and D and tighten in a clockwise direction as illustrated above. 2 �...
- Page 7 OPTION 2 STEP 1 Preparation for Top panel A1, Back panel D,Left side panel X,Right side panel Z. 1, Insert cam bolts@ and dowel pins@ into panel A 1 ,D,X and Z as illustrated above. PAGE...
- Page 8 STEP 2 Back panel D,Left side panel X and Right side panel Z assembly. (ill) 1, Insert cam bolts@ and dowel pins on panel X and Z into cams on panel D and tighten in a clockwise direction as illustrated above. STEP 3 Top panel A1 and Back panel D,Left side panel X,Right side panel Z assembly.
- Page 9 You have now successfully completed the assembly on item: AXIS Reception Counter Main ITEM No. :AXRPDN 18 & AXRDN 18 Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. PAGE...
