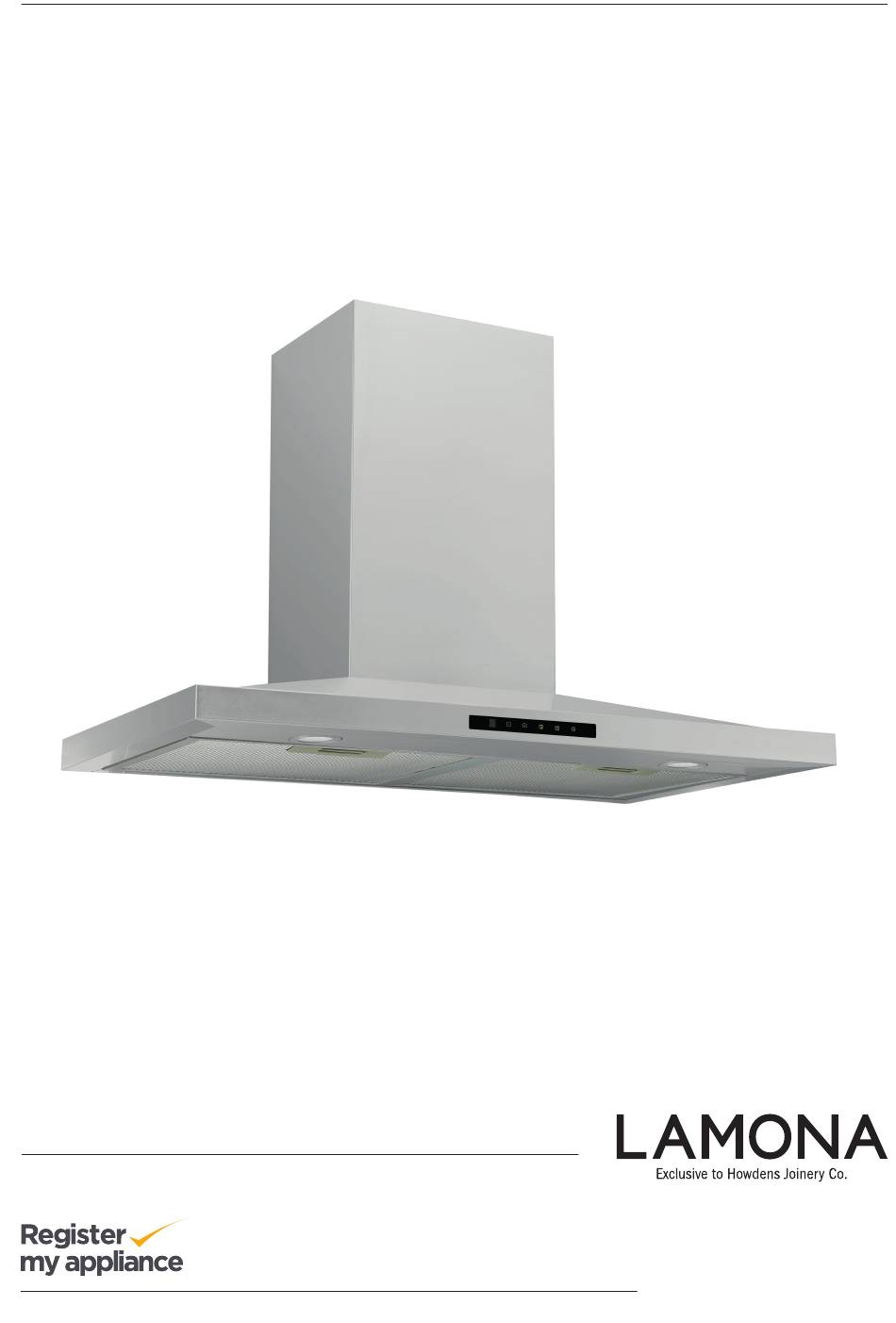

- Page 1 60cm/90cm Touch Control Extractor LAM2475 LAM2476 Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of a LAMONA domestic appliance. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the product. • Always follow the safety instructions.
-
Page 4: Table Of Contents
User manual LAM2475 LAM2476 Index Before Using The Extractor Safety General Safety For Children Safety When Working With Electricity General Information & Operation r Layout Control Panel Layout Care & Maintenance General Cleaning Grease Filters Carbon filters Replacing The Lamps... -
Page 5: Before Using The Extractor
LAMONA Appliances Before Using The Extractor • Make sure that you have removed all packaging, wrappings, stickers and films from the Extractor. • It is recommended that you clean the extractor’s surface before using for the first time. Safety Keep all ventilation slots clear of obstruction, •... -
Page 6: General Information & Operation
User manual LAM2475 LAM2476 General Information & Operation Extractor Layout Upper Chimney Section Recirculation Vent Lower Chimney Section Fan and Light Controls Extractor Body Grease Filters Light Control Panel Layout Reduce Power Level Increase Power Level Light On/O Timer Power On/O Exclusive to Howdens Joinery.co... -
Page 7: Care & Maintenance
LAMONA Appliances Care & Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up. -
Page 8: Carbon Filters
User manual LAM2475 LAM2476 The Carbon Filters (Supplied Separately) Before attempting to change or fit the charcoal filters ensure power to the extractor is switched o . Carbon filters only required for recirculation mode. Carbon filters have a limited life. We advise you to change them when there is a noticeable drop in performance. -
Page 9: Installation
LAMONA Appliances Installation Methods Of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal filters when using the external ducting mode. -
Page 10: Parts Identification
User manual LAM2475 LAM2476 Part Indentification On opening your box you will find the extractor body, two piece telescopic decorative chimney, a of wall fixings and screws, two fixing brackets, a ducting connector and reducer. 1. Main Extractor Body 6. Cable Grid 11. -
Page 11: Hanging Your Extractor
LAMONA Appliances Hanging Your Extractor This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by two people. Before drilling or chiselling the ceiling or wall, check for pipes and power cables. -
Page 12: Decorative Chimney Fitting
User manual LAM2475 LAM2476 Decorative Chimney Fitting 1. Connect the extractor to the electricity supply (see electrical connections page). We recommend an isolation switch that is accessible after installation. 2. The outlet reducer (5) maybe required depending on your ducting kit (supplied separately). -
Page 13: Electrical Connections
LAMONA Appliances Electrical Connections IMPORTANT: Ensure that the electricity supply is switched o before connecting. When fitting in recirculation mode (with no carbon filters) ensure the cable is shortened or securely held in place to prevent the loose cable from falling back into the motor. -
Page 14: Troubleshooting
User manual LAM2475 LAM2476 Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Motor temp has exceeded and Switch o the extractor and allow it to cool down • • Light functions but fan thermal fuse has tripped. and the fuse will auto reset. -
Page 15: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 16 Product serial number (Place sticker here) ISSUE v1 070219...
