We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Royce file cabinet. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

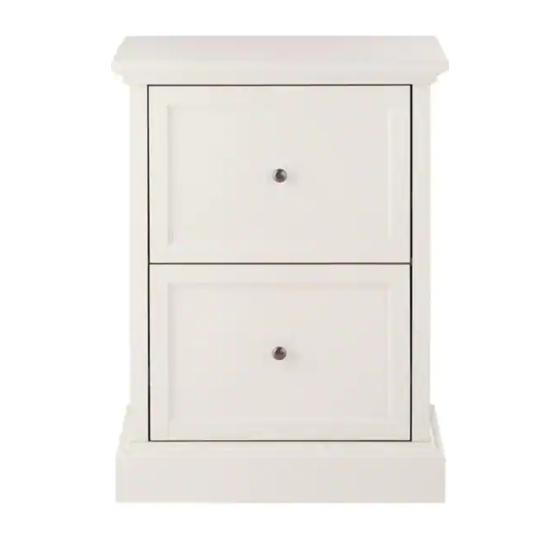

ROYCE FILE CABINET
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
1-800-998-7021
THANK YOU
Item #1004403583
Model #SK19051Dr1-PW
Item #1004403555
Model #SK19051Dr1-SB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection ROYCE SK19051Dr1-PW
Summary of Contents for Home Decorators Collection ROYCE SK19051Dr1-PW
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this Royce file cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Top panel Left side panel Right side panel Bottom panel Crossbar Back panel Drawer front panel Top drawer left side panel Top drawer right side panel Drawer back panel Drawer bottom panel Metal bar Bottom drawer left side panel Bottom drawer right side panel... -
Page 5: Assembly
Assembly Attaching the back panel to the left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panel (F) to the panel (B) with dowel (AA). □ b) Insert lock (CC) into panel (F). □... - Page 6 Assembly (continued) Attaching the crossbar and right side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join bar (E) and panel (F) to the panels (B) and (C) with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. b) Insert lock (CC) into panel (F) and bar (E).
- Page 7 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (D). c) Join panel (D) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B),(C) and (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 8 Assembly (continued) Attaching the top panel □ □ a) Install bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B),(C) and (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 9 Assembly (continued) Assembling the drawer □ □ a) Tighten panels (I) and (H) to panel (G) with screw (DD). c) Tighten panel (J) to the assembled body with screw (DD). □ □ b) Slide panel (K) into the grooves on panels (I) and (H). d) Tighten knob (FF) to panel (G) with bolt (EE).
- Page 10 Assembly (continued) Assembling the drawer □ □ a) Tighten panels (M) and (N) to panel (G) with screw (DD). c) Tighten panel (J) to the assembled body with screw (DD). □ □ d) Tighten knob (FF) to panel (G) with bolt (EE). b) Slide panel (K) into the grooves on panels (M) and (N).
- Page 11 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 12 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown.
- Page 13 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
