Assembly — Hanging the Fan
4 4

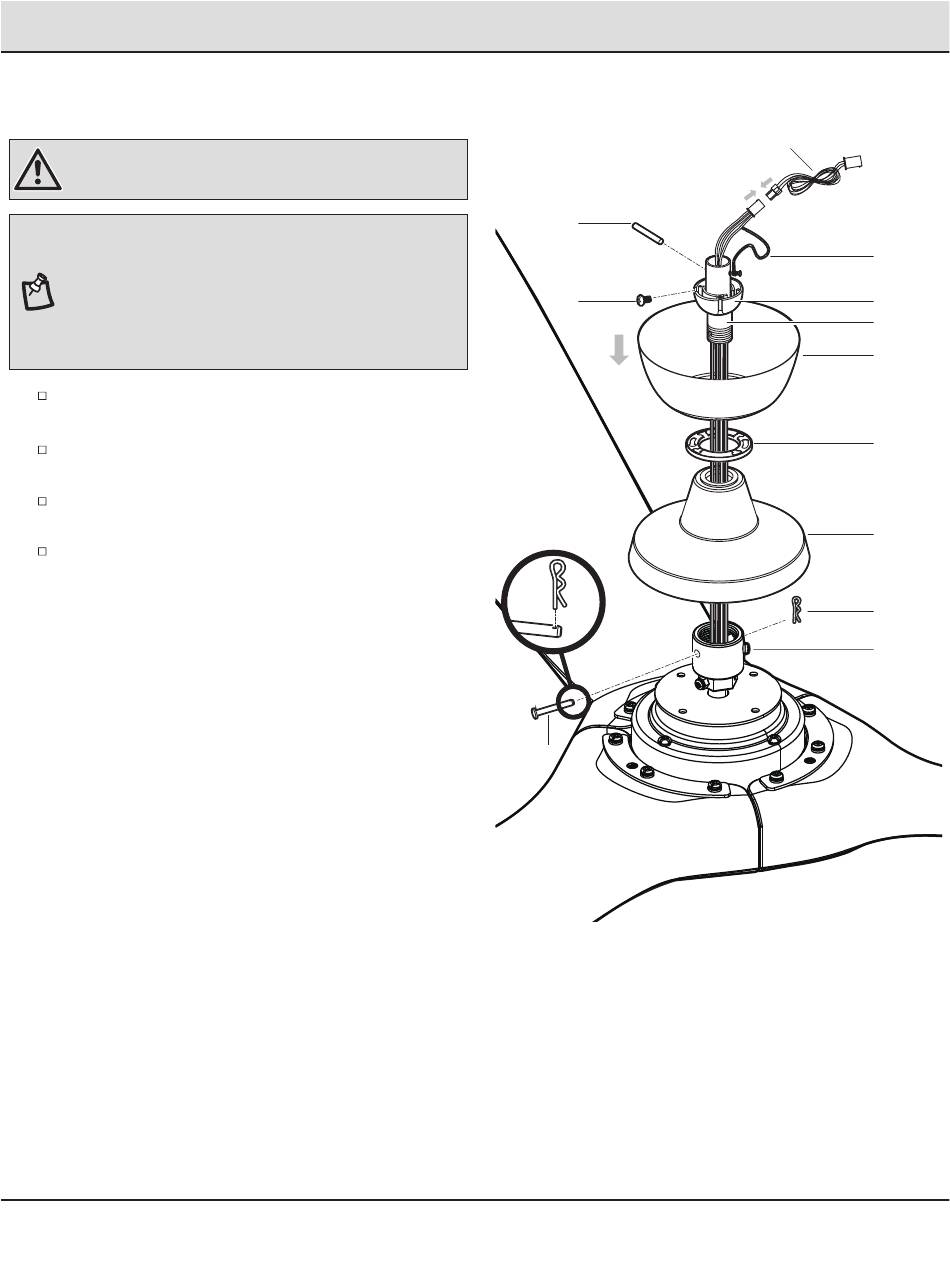

Assembling the fan
WARNING: Failure to properly install the cotter pin (FF) could
result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (JJ), lower the hanger ball
(JJ) and remove the pin (KK). Remove all three pieces from the
downrod and assemble them onto the new longer downrod before
proceeding to the downrod installation. Be sure to snap together
the 3-pin connectors, the male plugs from the fan and female
plugs from the extension cord (DD).
Carefully feed the motor wires up through the downrod (MM).
Thread the downrod (MM) into the collar.
Align the holes and replace the clevis pin (GG) and cotter pin
(FF). Tighten the two collar set screws (HH).
Slip the coupling cover (E), the canopy bottom cover (C), and
the canopy (B) onto the downrod (MM).
Carefully reinstall the hanger ball (JJ) and the ground lead
(LL) onto the downrod (MM). Being sure that the cross pin
(KK) is in the correct position, the set screw (II) is tightened
and wires are not twisted.
