USE AND CARE GUIDE

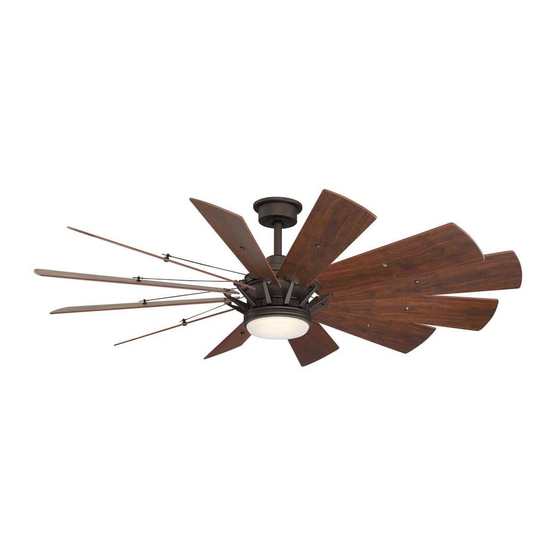

TRUDEAU LED 60 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
THANK YOU
THANK YOU
Item #1001 693 781
#1004 671 399
Model # YG545A-EB
# YG545A-MBK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRUDEAU YG545A-EB and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection TRUDEAU YG545A-EB

  • Page 1 USE AND CARE GUIDE TRUDEAU LED 60 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Preparing the Transmitter ............Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Warm/Cool Weather Operating Instructions ......Pre-installation .............. Care and Cleaning ............Specifications ................Tools Required .................
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut (not to scale) Canopy mounting screw with lock washer (preassembled) Blade attachment screw and fiber washer (not to scale) Blade arm screw and lock washer Clevis pin (preassembled) Cotter pin (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade arm Canopy Light kit mounting plate Hanger ball/downrod assembly 20 watt LED Light kit Coupling cover Glass shade Fan motor assembly...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
  • Page 8: Assembly

    Assembly Preparing the canopy Preparing the motor □ □ Remove the two collar setscrews (II) and remove the Remove the canopy ring (B) from the canopy (C). collar support plate (RR), keep the two collar setscrews (II) for future use and discard the collar □...
  • Page 9: Hanging The Fan

    Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
  • Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White WARNING: To avoid possible electrical shock, be sure conductor electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 11 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting.
  • Page 12 Assembly — Attaching the Fan Blades Attaching the blades to the Fastening the blade blade arms assemblies to the motor WARNING: NOTE: Your fan blades are reversible. Select the blade side To reduce the risk of personal injury, do not bend the blade arms (I) while installing, balancing the blades finish which best accentuates your decor.
  • Page 13: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades (continued) Attaching the decorative rod □ Rotate the decorative rods (G) onto the setscrew (VV) on the motor housing and firmly tightened. □ Insert the decorative rods (G) through the holes on the decorative rod holder (JJ). □...
  • Page 14: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and glass shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (MM) from the mounting ring (WW) and power by turning off the circuit breaker or removing the fuse loosen the other two screws.
  • Page 15: Operation

    Operation PREPARING THE TRANSMITTER PREPARING THE TRANSMITTER Batteries will weaken with age and should be NOTE: replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □...
  • Page 16: Operating Your Fan And Remote Control

    Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth.
  • Page 17: Warm/Cool Weather Operating Instructions

    Operation (continued) Timer □ Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
  • Page 18: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 19 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
  • Page 20: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting screw with lock washer (preassembled) Canopy Blade attachment screw and fiber washer Hanger ball/downrod assembly Blade arm screw and lock washer Coupling cover Clevis pin (preassembled) Fan motor assembly...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
