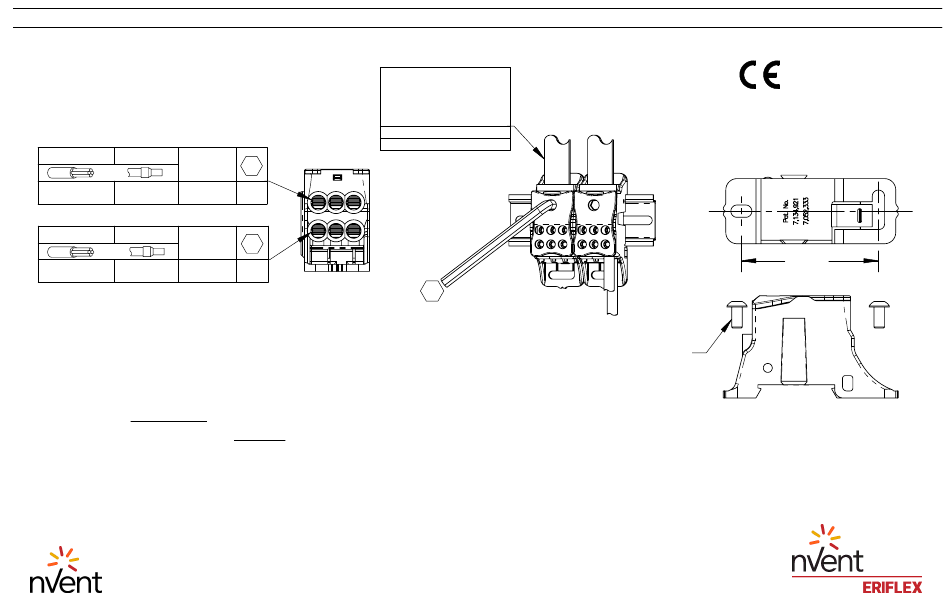

INSTRUCTION SHEET

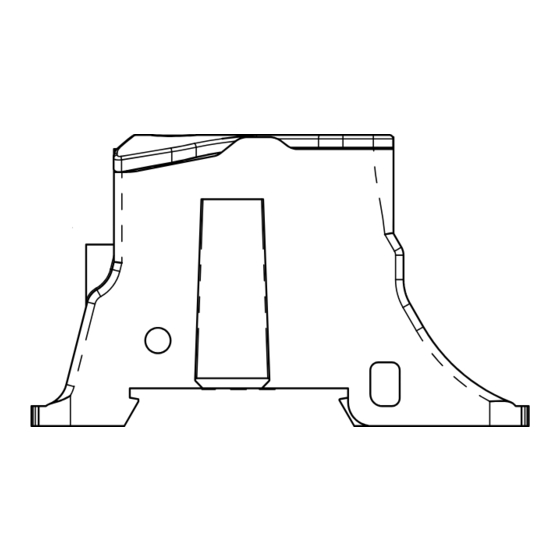

UDF250
569041
SIZE (3X)
TORQUE
*
LENGTH
OR
2,5...16 mm²
3,5 N.m
8,9 mm
SIZE (3X)
TORQUE
*
LENGTH
OR
2,5...16 mm²
3,5 N.m
11,4 mm 3mm
NOTE:
1.
Tighten screws of all unused galleries to the specified torque above.
2.
For multiple phase assemblies, join blocks together before installing on DIN Profile.
3.
The input conductor must be fixed or maintained at approximately 15cm from the blocks.
4.
* When using 16mm² cables with insulated ferrules only two can be used in each row.
IEC is a registered trademark of International Electrotechnical Commission
WARNING:
1.
nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2.
nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3.
All instructions must be completely followed to ensure proper and safe installation and performance.
4.
Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are owned by
nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change
specifications without prior notice.
TECHNICAL SUPPORT
www.nVent.com
STRIP
3mm
STRIP
IP8106_F
eriflex
FLEXIBAR
3X9X0.8 - 6X9X0.8
3X13X0.5 - 6X13X0.5
2X15.5X0.8 - 6X15.5X0.8
TORQUE: 13,5 N.m
STRIP LENGTH 19mm
6mm
© 2010-2019 nVent All Rights Reserved
1 OF 2
®
IEC 60947-7-1
I: 250A
Ui: 1000V AC/DC
Uimp: 12kV
Ipk: 30kA
Icw: 9kA rms 1s
62.3
M5
