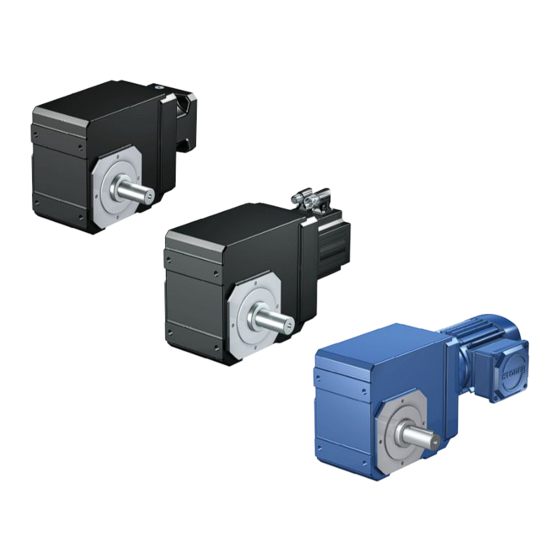

K1 – K10 gear units, geared motors
Operating manual
en-US
07/2023
ID 443364_en.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stober K1

Summary of Contents for Stober K1

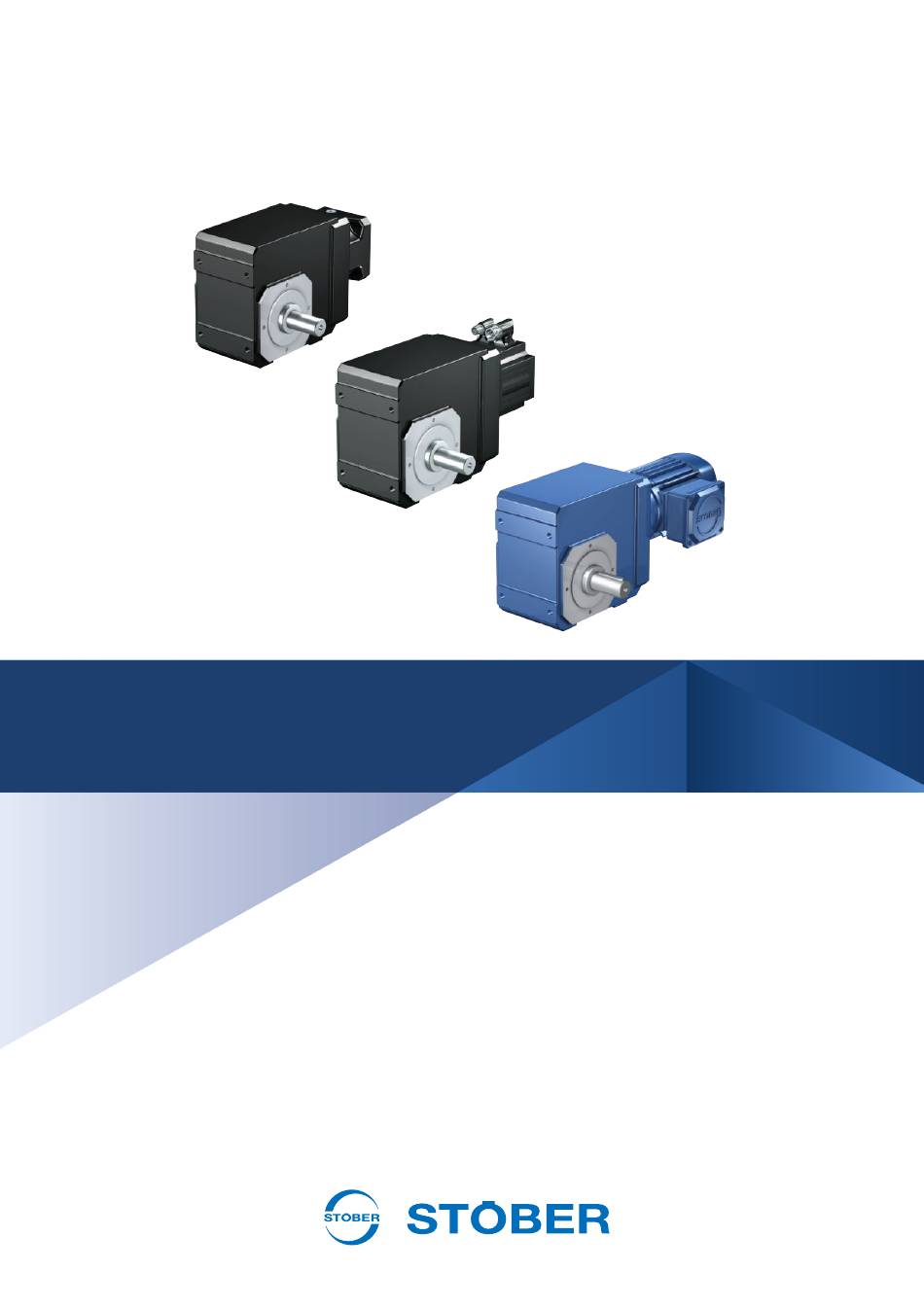

  • Page 1 K1 – K10 gear units, geared motors Operating manual en-US 07/2023 ID 443364_en.00...

  • Page 2: Table Of Contents

    Table of contents Table of contents User information...............................  4 Storage and transfer.............................. 4 Original language.............................. 4 Formatting conventions ............................ 4 Terms.................................. 5 Supporting documents ............................ 5 Limitation of liability.............................. 5 Product names and brands............................ 5 Copyright notice .............................. 5 General safety instructions............................ 6 Intended use................................
  • Page 3 Table of contents 5.2.4 Mounting the motor on a gear unit with MQ/MR adapter with curved tooth coupling......  23 5.2.5 Mounting the motor on a gear unit with MQ/MR adapter with plug-in coupling .......  25 5.2.6 Mounting the motor on a gear unit with MB adapter................ 27 Mounting the output shaft............................

  • Page 4: User Information

    User information This documentation is a part of the product. It applies to products in the standard design according to the corresponding STOBER catalog. Storage and transfer As this documentation contains important information for handling the product safely and efficiently, it must be stored in the immediate vicinity of the product until product disposal and be accessible to qualified personnel at all times.

  • Page 5: Terms

    Supporting documents Separate documents apply to the drive components which can be attached to STOBER gear units, depending on the design. These documents can be found by entering the serial number of the drive at https://id.stober.com...

  • Page 6: General Safety Instructions

    2 | General safety instructions General safety instructions There are risks associated with the product described in this documentation that can be prevented by complying with the described warning and safety instructions as well as the included technical rules and regulations. Intended use The drives described in this documentation are intended for installation in industrial machines or systems.

  • Page 7: Thermal Hazards

    2 | General safety instructions WARNING! Sinking or falling of gravity-loaded axes or vertical axes after switching off the motor due to gravity! Falling gravity-loaded axes or vertical axes can cause serious injuries or even death! ▪ Be aware that the holding brake of the motor does not offer sufficient safety for persons that are in the hazard area of gravity-loaded axes or vertical axes.

  • Page 8: Product Description

    3 | Product description Product description In this chapter, you will find product details that are relevant for assembly, commissioning and servicing. Detailed technical data on your drive can be found in the order confirmation. You will find more product information and dimensional drawings in the corresponding catalog (Additional documentation [} 15]).

  • Page 9: Type Designation

    3 | Product description Tab. 2: Basic structure of a K513AF gear unit (left) and K513AGD gear unit (right) Hollow shaft Round flange Pitch circle diameter Nameplate Gear housing MR motor adapter Torque arm bracket Type designation In this chapter, you will find an explanation of the type designation with the associated options. Example code 0560 ME20...

  • Page 10: Nameplate

    3 | Product description Code Designation Design Housing Pitch circle diameter Round flange Foot + pitch circle diameter Foot + round flange Pitch circle diameter + torque arm bracket Foot + pitch circle diameter + torque arm bracket 0560 Transmission ratio (i x 10 rounded) i = 55.71 (example) ME20 Motor adapter...

  • Page 11: Mounting Positions

    The following table shows the standard mounting positions. The numbers identify the gear unit sides. The mounting position is defined by the gear side facing downwards. Installation positionf for gear unit sizes K1 − K4 Mounting positions for gear unit sizes K5 − K10...

  • Page 12: Direction Of Rotation

    3 | Product description An adhesive label is applied to the gear unit that explains the designated mounting position. The arrow on the adhesive label indicates the side with which the gear unit must be mounted facing down. Fig. 1: Adhesive label for the mounting position Direction of rotation Solid shaft (V), solid shaft on both sides (V), hollow shaft with keyway (A) Type...
  • Page 13 3 | Product description Type Output side 4 Output side 3 K514 − K1014 The specified directions of rotation also apply to gear units with hollow shaft (A) if the entry side of the machine shaft corresponds to the side of the solid shaft that is shown. The direction of rotation for the shaft design of a solid shaft on both sides corresponds to the direction of rotation for output side 4.

  • Page 14: Ambient Conditions

    3 | Product description Type Shrink ring side 4 Shrink ring side 3 K913 − K1013 K914 − K1014 The pictures show mounting position EL1. Ambient conditions Standard ambient conditions for transport, storage and operation of the gear unit are described in this chapter. Deviating ambient conditions for special designs are specified in the order confirmation.

  • Page 15: Other Product Features

    Asynchronous geared motors 443136_en Gear unit Lubricant filling quantities for gear units 441871 If you have questions about your drive that are not answered by this documentation, please contact STOBER Service (Service [} 41]). Observe the protection class of all the components.

  • Page 16: Transport And Storage

    4 | Transport and storage Transport and storage STOBER products are packaged carefully and delivered ready for installation. The type of packaging depends on the product size and the transport method. Observe the following information during transport and storage: §...

  • Page 17: Long-Term Storage

    2. Completely fill the gear unit with lubricant. The lubricant specification can be found by entering the serial number of the gear unit at https://id.stober.com or by scanning the QR code on the nameplate of the gear unit. Before commissioning the gear unit, reduce the lubricant fill volume to the fill volume that is specified on the nameplate of...

  • Page 18: Installation

    This chapter contains information on how to mount a motor on a STOBER gear unit with a motor adapter. The motor adapter type of your gear unit can be found on the nameplate of the gear unit. STOBER recommends using a motor with a shaft without a feather key, since the keyway negatively affects smooth operation.

  • Page 19: Permitted Tilting Torques At The Gear Unit Input

    Permitted tilting torques at the gear unit input If you mount a STOBER gear unit on the machine in a horizontal mounting position, check that the permitted tilting torque is not exceeded on the gear unit input before mounting the corresponding motor. Information on the permitted tilting...

  • Page 20: Mounting The Motor On A Gear Unit With Me Adapter

    Procedure In order to prevent unfavorable shifting or tilting of the motor shaft, STOBER recommends mounting the motor on the gear unit with the motor shaft pointing down vertically. 1. Position the gear unit (5), if necessary with the aid of lifting gear, so that the motor can be mounted in a vertical position.
  • Page 21 5 | Installation 9. If necessary, use two suitable attachment points to secure the motor with the lifting gear so that the motor shaft is pointing down vertically. 10. Turn the motor in an axial position to the gear unit so that the nameplates are on the same side, if possible, and can also be read after installation in the machine.
  • Page 22 5 | Installation Fig. 2: Mounting a motor on a K gear unit with ME motor adapter (example) Torque wrench Hexagon insert Motor adapter Gear unit Adapter bushing (if present) Motor shaft Motor Screw Slot of the clamping hub Locking screw Grooved pin Screw plug Adhesive label...

  • Page 23: Mounting The Motor On A Gear Unit With Mq/Mr Adapter With Curved Tooth Coupling

    This chapter describes the attachment of a motor with a solid shaft with feather key to a STOBER gear unit with an MQ (for a square motor flange) or MR (for a round motor flange) motor adapter with a curved tooth coupling. Since the assembly steps for the MQ or MR motor adapter are identical, only one motor adapter type is shown in the figures.
  • Page 24 5 | Installation 8. If necessary, use two suitable attachment points to secure the motor with the lifting gear so that the motor shaft is pointing down vertically. 9. Turn the motor in an axial position to the gear unit so that the nameplates are on the same side, if possible, and can also be read after installation in the machine.

  • Page 25: Mounting The Motor On A Gear Unit With Mq/Mr Adapter With Plug-In Coupling

    This chapter describes the attachment of a motor with a solid shaft without feather key to a STOBER gear unit with an MQ (for a square motor flange) or MR (for a round motor flange) motor adapter with a plug-in coupling. Since the assembly steps for the MQ or MR motor adapter are identical, only one motor adapter type is shown in the figures.
  • Page 26 5 | Installation 9. Turn the motor in an axial position to the gear unit so that the nameplates are on the same side, if possible, and can also be read after installation in the machine. 10. Carefully place the motor on the motor adapter and make sure that the claws of the motor-side clampring (9) are positioned between the claws of the gear unit-side coupling hub (7) and the teeth of the gear rim (8).

  • Page 27: Mounting The Motor On A Gear Unit With Mb Adapter

    5 | Installation Tightening torques for clamping screws (3) Size of clamping screw [mm] Tightening torque [Nm] 5.2.6 Mounting the motor on a gear unit with MB adapter The assembly of a motor on a gear unit with an MB motor adapter with brake is described in a separate document (see Supporting documents [} 5]).

  • Page 28: Mounting A Hollow Shaft With Keyway

    ISO k6 ISO k6 ISO m6 ISO m6 ISO m6 ISO m6 [mm] 35.2 [mm] norm 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 6885-1 Tab. 3: Specifications for the machine shaft and feather key (for K1 DIN 6885-3)

  • Page 29: Mounting A Hollow Shaft With Shrink Ring

    5 | Installation Dimension name Explanation ∅dh Inner diameter of the hollow shaft Diameter of the threaded hole in the machine shaft Minimum length of the machine shaft Minimum length of the feather key on the machine shaft Diameter tolerance of the machine shaft in accordance with DIN 748-1 Standard to which the feather key must correspond norm Procedure...
  • Page 30 5 | Installation Fit tolerance of the machine shaft ∅ds [mm] Tolerance ds ≤ 50 ISO h9 ds > 50 ISO h6 Procedure ATTENTION! Property damage! Only tighten the clamping screws of the shrink ring after you have inserted the gear unit onto the machine shaft.

  • Page 31: Mounting The Gear Unit On The Machine

    5 | Installation Information on mounting the shrink ring Gear unit type ds [mm] [Nm] Width across flats [mm] – – – – Abbreviations used: § ds = Inner diameter of the shrink ring § fs = Distance between end of hollow shaft and shrink ring §...
  • Page 32 5 | Installation 4. Position the gear unit in the specified mounting position. 5. For a gear unit with a hollow shaft and keyway, mount the hollow shaft on the machine shaft (see Mounting a hollow shaft with keyway [} 28]). 6.

  • Page 33: Mounting The Torque Arm Bracket

    5 | Installation Gear unit type Number of screws Screw size Min. screw-in depth Strength class [mm] K1_G 10.9 K2_G 10.9 K3_G 10.9 K4_G 10.9 K5_G 10.9 K6_G 10.9 K7_G 10.9 K8_G 10.9 K9_G 10.9 K10_G 10.9 K1_D – K2_D –...
  • Page 34 5 | Installation Procedure Observe the following when mounting the torque arm bracket: § Mount the torque arm bracket so that the bush (13) of the torque arm bracket is positioned on the side where the machine shaft (7) is connected. This prevents additional bending stress. §...

  • Page 35: Tightening Torques

    5 | Installation Tightening torques Note that the following tightening torques apply to screws that are used for mounting the motor on the gear unit or the gear unit on the machine. For clamp couplings, clamping screws of shrink rings and other connection elements, other tightening torques apply that are specified in the specific context.

  • Page 36: Commissioning

    The maximum surface temperature occurs in approx. 3 hours, depending on the utilization of the drive, and must not exceed the maximum value of 90 °C in the event of a maximum surrounding temperature. Immediately shutdown the drive if the maximum value is exceeded and contact STOBER Service.

  • Page 37: Servicing

    7 | Servicing Servicing Cleaning If the surface of the drive is dirty, heat dissipation through the ambient air is no longer sufficient. As a result, impermissibly high operating temperatures that reduce the lubricating effect of the lubricant and accelerate its aging could occur. This has a negative effect on the service life of the drive.

  • Page 38: Changing The Oil

    7.2.1 Changing the oil You can find information on the oil change for K5 – K10 gear units in this chapter. K1 – K4 gear units are lubricated for their entire service life and do not require an oil change.
  • Page 39 7 | Servicing Air release valve (filling connection) Screw plug (draining connection) Filling and draining connections for K514 – K1014 gear units Air release valve (filling connection) Screw plug (draining connection) For K514 gear units in the EL5 and EL6 mounting positions, the filling and draining connections are arranged as they are for K513 gear units in EL5 and EL6.

  • Page 40: Remedying Faults

    Servicing Have the necessary servicing work carried out on the drive by the STOBER Service department or by STOBER service partners. Be aware that improper servicing may cause material damage and may void the manufacturer's warranty. Only use replacement parts delivered by STOBER. Specify the type designation and serial number of the drive when...

  • Page 41: Service

    7 | Servicing Service If you contact STOBER Service, have the following information ready: § Serial number and type designation of the drive according to the nameplate § Type of fault and surrounding circumstances § Presumed cause § If possible, digital photo of the drive or a video recording of the drive in the context of the fault Contact data of parent company in Germany STÖBER Antriebstechnik GmbH + Co.

  • Page 42: Removal And Disposal

    8 | Removal and disposal Removal and disposal Removal Remove the drive as follows: 1. If the drive had been in operation immediately beforehand, allow it to cool. 2. Disconnect the connection cable and the grounding conductor from the motor. 3.

  • Page 43: Disposal

    8 | Removal and disposal Feather key Hollow shaft Set screw Keeper plate Machine shaft Disposal Dispose of the component parts of the gear unit according to applicable national regulations and when doing so, observe the following information: § If possible, separate the gear unit into component parts made of steel/cast iron, aluminum and plastic. §...
  • Page 44 443364_en.00 07/2023 STÖBER Antriebstechnik GmbH + Co. KG Kieselbronner Str. 12 75177 Pforzheim Germany Tel. +49 7231 582-0 mail@stoeber.de www.stober.com 24 h Service Hotline +49 7231 582-3000 www.stober.com...
