Summary of Contents for Stober PHV94

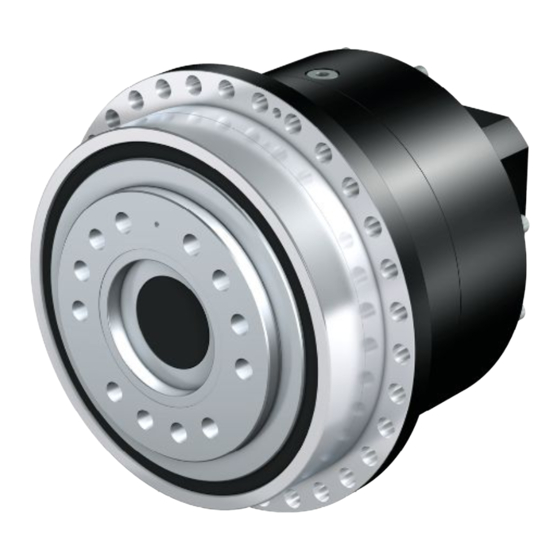

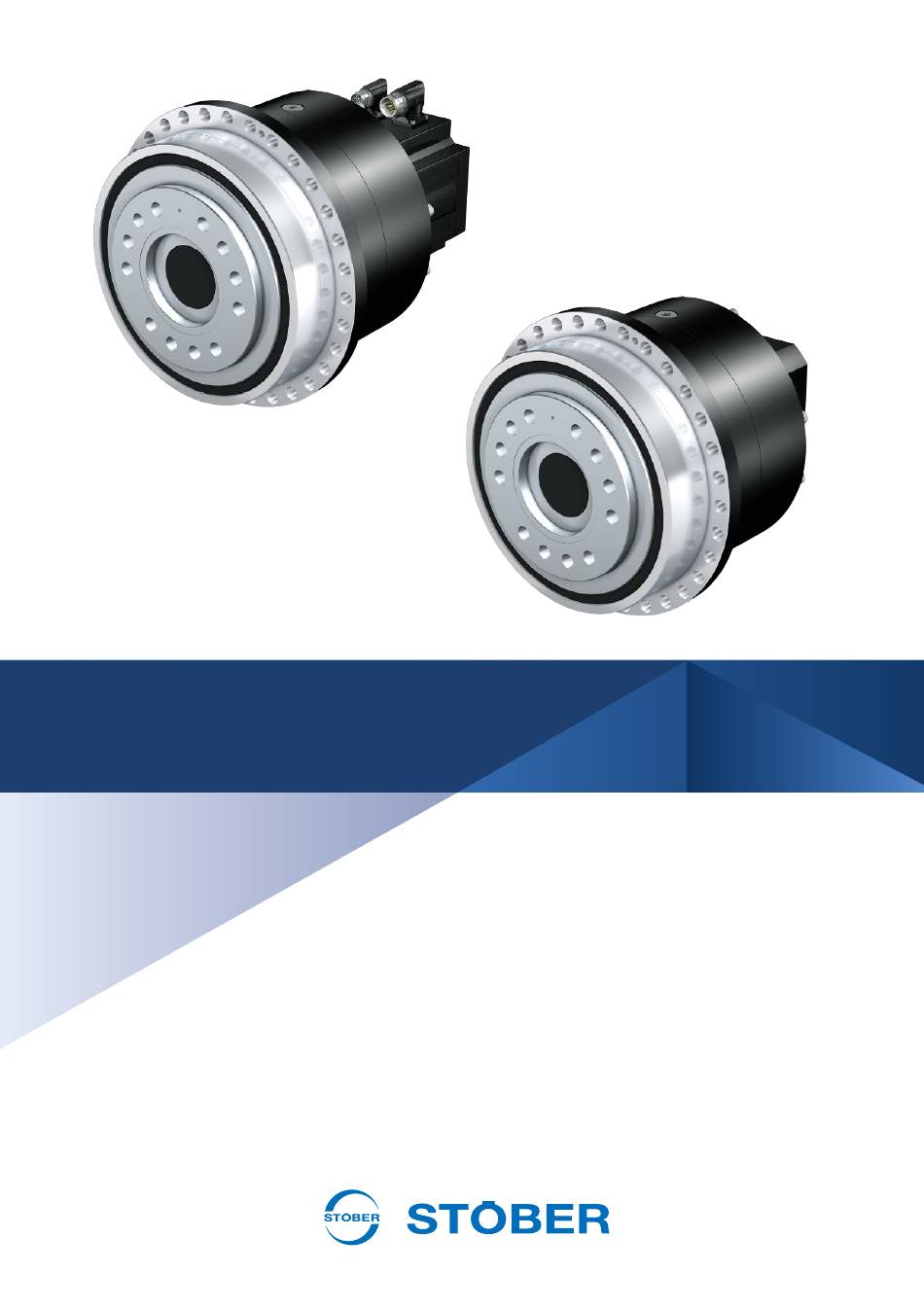

- Page 1 PHV94 – PHV104 gear units, geared motors Operating manual en-US 02/2023 ID 443355_en.00...
-
Page 2: Table Of Contents
Table of contents Table of contents User information............................... 4 Storage and transfer.............................. 4 Original language.............................. 4 Formatting conventions ............................ 4 Terms.................................. 5 Supporting documents ............................ 5 Limitation of liability.............................. 5 Product names and brands............................ 5 Copyright notice .............................. 5 General safety instructions............................ 6 Intended use................................ - Page 3 Table of contents Mounting drive elements on a flange shaft ...................... 19 Mounting the gear unit on the machine ....................... 19 Tightening torques .............................. 21 Commissioning................................. 22 Before commissioning ............................ 22 During commissioning ............................ 22 Servicing .................................. 23 Cleaning ................................. 23 Inspection ................................ 23 Remedying faults ..............................
-
Page 4: User Information
User information This documentation is a part of the product. It applies to products in the standard design according to the corresponding STOBER catalog. Storage and transfer As this documentation contains important information for handling the product safely and efficiently, it must be stored in the immediate vicinity of the product until product disposal and be accessible to qualified personnel at all times. -
Page 5: Terms
Supporting documents Separate documents apply to the drive components which can be attached to STOBER gear units, depending on the design. These documents can be found by entering the serial number of the gear unit at https://id.stober.com... -
Page 6: General Safety Instructions
2 | General safety instructions General safety instructions There are risks associated with the product described in this documentation that can be prevented by complying with the described warning and safety instructions as well as the included technical rules and regulations. Intended use The drives described in this documentation are intended for installation in industrial machines or systems. -
Page 7: Thermal Hazards
2 | General safety instructions WARNING! Sinking or falling of gravity-loaded axes or vertical axes after switching off the motor due to gravity! Falling gravity-loaded axes or vertical axes can cause serious injuries or even death! ▪ Be aware that the holding brake of the motor does not offer sufficient safety for persons that are in the hazard area of gravity-loaded axes or vertical axes. -
Page 8: Product Description
3 | Product description Product description In this chapter, you can find product details that are relevant for assembly, commissioning and maintenance. Detailed technical data on your gear unit/geared motor can be found in the order confirmation. You will find more product information and dimensional drawings in the corresponding catalog (Additional documentation [} 11]). -
Page 9: Nameplate
3 | Product description Code Designation Design Generation Generation 4 Stages Three-stage Housing Standard Shaft Flange shaft Bearing Standard bearing Backlash Standard Reduced (PHV9) 0910 Transmission ratio (i x 10) i = 91 (example) Motor adapter Motor adapter with EasyAdapt coupling Motor adapter Motor adapter with EasyAdapt coupling for large motors Motor... -
Page 10: Direction Of Rotation
3 | Product description Direction of rotation The input and output rotate in the same direction. Reverse operation To ensure lubrication for circulating gearing parts during cyclic reverse operation from ± 20° to ± 90° at the output, pay careful attention to the position of the output shaft for the horizontal mounting of the gear unit, as shown in the diagrams below. -
Page 11: Other Product Features
Gear unit + ME/MEL/MF/MFL motor adapter Servo gear units 443054_en Gear unit + EZ synchronous servo motor EZ synchronous servo geared motors 442437_en If you have questions about your drive that are not answered by this documentation, please contact STOBER Service (Service [} 25]). -
Page 12: Transport And Storage
4 | Transport and storage Transport and storage STOBER products are packaged carefully and delivered ready for installation. The type of packaging depends on the product size and the transport method. Observe the following information during transport and storage: §... - Page 13 4 | Transport and storage Before commissioning the gear unit, reduce the lubricant fill volume to the fill volume that is specified on the nameplate of the gear unit.
-
Page 14: Installation
This chapter contains information on how to mount a motor on a STOBER gear unit with a motor adapter. The motor adapter type of your gear unit can be found on the nameplate of the gear unit. STOBER recommends using a motor with a shaft without a feather key, since the keyway negatively affects smooth operation. -
Page 15: Permitted Tilting Torques At The Gear Unit Input
Permitted tilting torques at the gear unit input If you mount a STOBER gear unit on the machine in a horizontal mounting position, check that the permitted tilting torque is not exceeded on the gear unit input before mounting the corresponding motor. Information on the permitted tilting... -
Page 16: Mounting The Motor On A Gear Unit With Me/Mel/Mf/Mfl Adapter
Procedure In order to prevent unfavorable shifting or tilting of the motor shaft, STOBER recommends mounting the motor on the gear unit with the motor shaft pointing down vertically. 1. Position the gear unit (5), if necessary with the aid of lifting gear, with the flange shaft pointing down so that the motor can be mounted in a vertical position. - Page 17 5 | Installation 9. Turn the motor in an axial position to the gear unit so that the nameplates are on the same side, if possible, and can also be read after installation in the machine. 10. If the motor shaft has a keyway, position the motor shaft so that the keyway is opposite the slot of the clamping hub (10).
- Page 18 5 | Installation Fig. 1: Mounting a motor on a planetary gear unit with flange shaft and ME motor adapter (example) Torque wrench Hexagon insert Motor adapter Planetary gear unit Adapter bushing (if present) Motor shaft Motor Screw Slot of the clamping hub Locking screw Grooved pin Screw plug...
-
Page 19: Mounting Drive Elements On A Flange Shaft
5 | Installation Abbreviations used: § KS = Nominal diameter of the locking screw (11) § = Tightening torque for the locking screw (11) § s = Size of the hexagon insert (3) Mounting drive elements on a flange shaft This chapter describes the assembly of drive elements, such as belt drives or pinions, on a flange shaft. - Page 20 5 | Installation Procedure 1. Position the gear unit so that the nameplate of the gear unit is still visible after mounting. 2. If the gear unit is to be operated in reverse operation, make sure that the output shaft is positioned according to the specifications in the chapter .
-
Page 21: Tightening Torques
5 | Installation Tightening torques Note that the following tightening torques apply to screws that are used for mounting the motor on the gear unit or the gear unit on the machine. For clamp couplings, clamping screws of shrink rings and other connection elements, other tightening torques apply that are specified in the specific context. -
Page 22: Commissioning
The maximum surface temperature occurs in approx. 3 hours, depending on the utilization of the drive, and must not exceed the maximum value of 90 °C in the event of a maximum surrounding temperature. Immediately shutdown the drive if the maximum value is exceeded and contact STOBER Service. -
Page 23: Servicing
7 | Servicing Servicing Cleaning If the surface of the gear unit/geared motor is dirty, sufficient heat dissipation through the ambient air is no longer possible. As a result, impermissibly high operating temperatures could occur, which reduce the lubricating effect of the lubricant and accelerate its aging. -
Page 24: Remedying Faults
Servicing Have the necessary servicing work carried out on the drive by the STOBER Service department or by STOBER service partners. Be aware that improper servicing may cause material damage and may void the manufacturer's warranty. Only use replacement parts delivered by STOBER. Specify the type designation and serial number of the drive when... -
Page 25: Service
7 | Servicing Service If you contact STOBER Service, have the following information ready: § Serial number and type designation of the drive according to the nameplate § Type of fault and surrounding circumstances § Presumed cause § If possible, digital photo of the drive or a video recording of the drive in the context of the fault Contact data of parent company in Germany STÖBER Antriebstechnik GmbH + Co. -
Page 26: Removal And Disposal
8 | Removal and disposal Removal and disposal Removal WARNING! Moving machine parts can cause serious injuries or even death! Before performing work, switch off the machine with the main switch and secure the switch from being turned on again. WARNING! Falling gravity-loaded axes or vertical axes can cause serious injuries or even death! Move gravity-loaded axes or vertical axes to their lowest position and lock or brace them mechanically before entering the danger area. - Page 27 443355_en.00 02/2023 STÖBER Antriebstechnik GmbH + Co. KG Kieselbronner Str. 12 75177 Pforzheim Germany Tel. +49 7231 582-0 mail@stoeber.de www.stober.com 24 h Service Hotline +49 7231 582-3000 www.stober.com...
