维修手册
适用机型
AMS150F-MDLW

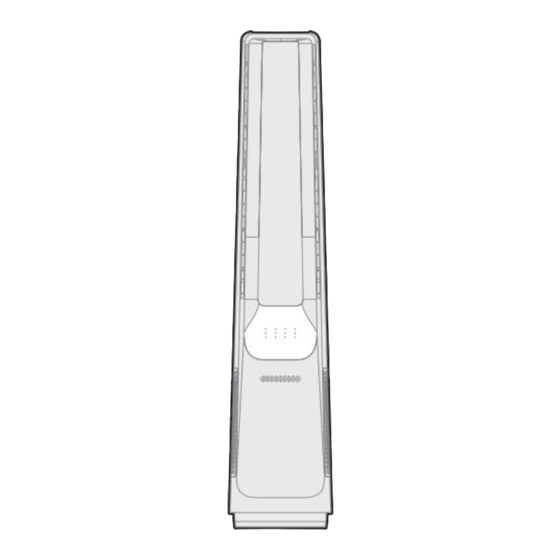

（本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and
specific appearance and configuration are subject to the real product)
编制
审核
批准
Service Manual
Applicable Models
Prepared by
Reviewed by
Approved by
维修手册
Service Manual, 2021 v1.0
机型编码
Model No.
22056020000221
冯占
范超
吴孔升
1 / 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea AMS150F-MDLW
Summary of Contents for Midea AMS150F-MDLW
- Page 1 Service Manual, 2021 v1.0 Service Manual 维修手册 适用机型 Applicable Models 机型编码 Model No. 22056020000221 AMS150F-MDLW （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 冯占 Reviewed by 审核 范超...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 2 / 10... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2021 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2021 v1.0 整机拆卸 Dismantling of appliance 2.1 用十字螺丝刀拆下后 10 颗螺钉，取下后 壳。 Remove the rear 10 screws with a Phillips screwdriver and remove the rear case. 2.2 用十字螺丝刀取下动力包的两侧四颗螺 钉，取下风道组件。并拆除固定左右蜗壳的 3 颗螺钉， 用扳手取下风轮锁母， 取出离心风轮。 取消电机固定螺钉，拆下电机 Use a Phillips screwdriver to remove the four screws on both sides of the power pack to remove the air duct assembly.
- Page 5 维修手册 Service Manual, 2021 v1.0 2.3 Remove the 2 screws on both sides of the air duct and remove the air duct. Use a Phillips screwdriver to remove the two screws of the fire box of the power board, remove the fire box, and remove the power board.
-
Page 6: Function And Operation
维修手册 Service Manual, 2021 v1.0 整机的安装 Function and operation 3.1 电机组件对应右蜗壳圆形孔放置好，螺 钉孔对位。打螺钉固定。将风轮孔扁位对应 右蜗壳组件内的电机轴套入安装。安装垫片 和螺母。安装蜗壳打螺钉。 motor components placed corresponding to the circular hole of the right volute, and the screw holes are aligned. Fasten with screws. Insert the flat position of the fan wheel hole corresponding to the motor shaft in the right volute assembly. -
Page 7: Fault Code And Solutions
维修手册 Service Manual, 2021 v1.0 常见及解决方法 Fault code and solutions 故 障 代 码 代 码 可见 故 障 内 容 显示 维修方法步骤 Display Steps for maintenance methods Fault Code Fault content code visible 温度传感器 开路故障 温度传感器开路故障消除，重新恢复正常使用状态。 Temperatur 1h、2h The open circuit fault of the temperature sensor is e sensor eliminated, and the normal use state is resumed. - Page 8 维修手册 Service Manual, 2021 v1.0 Replace the motor wind 在摇头组件的零部件间的润滑油是否均匀 摇头不顺/异 检查同步电机处连杆及曲柄是否打油 音 Is the lubricating oil evenly distributed among the Shaking head parts of the shaking head assembly? / abnormal Check whether the connecting rod and crank at sound the synchronous motor are oiled 附录...
- Page 9 维修手册 Service Manual, 2021 v1.0 风扇维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble 尖嘴钳...
- Page 10 如需获得厂家详细技术咨询，请联系： xxx@midea.com 生活电器事业部 外销 地址：中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City,...
