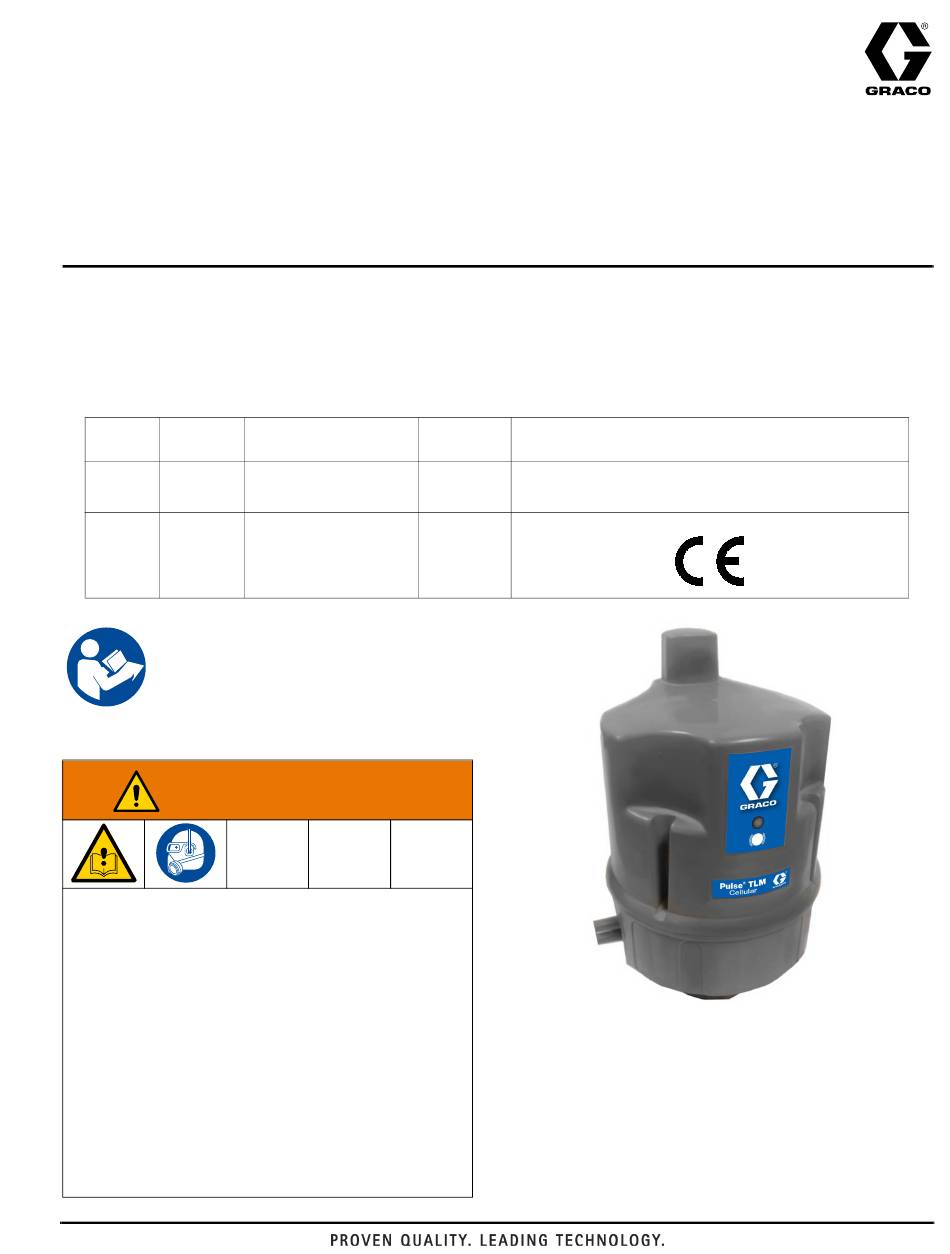

Installation, Operation, and Service
®
Pulse

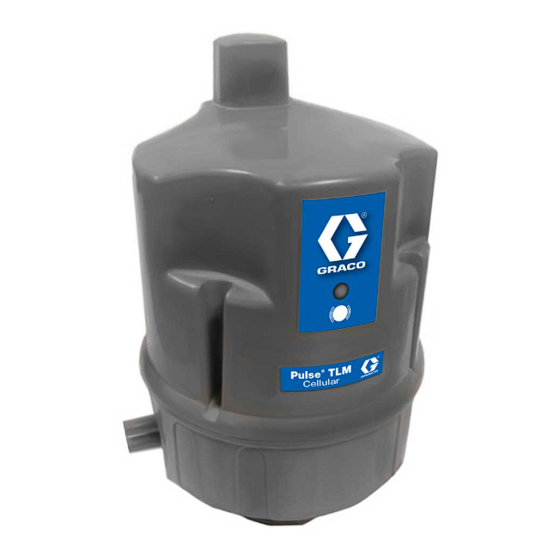

Tank Level Monitor
Measures the distance between the device and the surface of the fluid to determine the volume of fluid
within a tank. For use only with Pulse Level. Intended fluids: oil, diesel, waste oil, automatic transmission
fluid (ATF), kerosene, anti-freeze, windshield washer solution, waste water, and DEF. For professional use
only. Not suitable for tank overfill protection.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Part No.
Model
25T461
TEK 811
133620
TEK 811
Important Safety Instructions
Read all warnings and instructions in this
manual and in all related Pulse manuals
before using the equipment. Save all
instructions.
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
Do not alter or modify equipment. Alterations or
modifications may void agency approvals and
create safety hazards.
•
Make sure all equipment is rated and approved for
the environment in which you are using it.
•
Use equipment only for its intended purpose. Call
your distributor for information.
•
Keep children and animals away from work area.
•
Comply with all applicable safety regulations.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the
work area to help prevent serious injury, including
eye injury, hearing loss, and inhalation of toxic fumes.
Level Cellular
Description
Approvals
Pulse Level Cellular
FCC, IC
North America
Pulse Level Cellular
CE, RCM
International
Radio
This Tank Level Monitor (TLM) contains FCC ID XMR
201707 BG96. This device complies with Part 15 of the
FCC Rules. Operation is subject to the following two
conditions:
•
This device may not case harmful interference.
•
This device must accept any interference received,
including interference that may cause undesired
operation.
3A8551E
Model Approvals
EN
Advertisement
Table of Contents
Related Manuals for Graco Pulse TEK 811
Summary of Contents for Graco Pulse TEK 811
- Page 1 Installation, Operation, and Service ® Pulse Level Cellular Tank Level Monitor 3A8551E Measures the distance between the device and the surface of the fluid to determine the volume of fluid within a tank. For use only with Pulse Level. Intended fluids: oil, diesel, waste oil, automatic transmission fluid (ATF), kerosene, anti-freeze, windshield washer solution, waste water, and DEF.
-
Page 2: Installation
Installation Installation Set Up Activation 1. Hold the magnet (supplied) to the Hot Spot directly NOTICE under the LED to activate the device (F . 1). • Do not over tighten TLM into tank bung. Over tightening can cause permanent damage and result in inaccurate readings. -
Page 3: Typical Installation
Installation Typical Installation LED Pattern LED Pattern Function LED Test: when a magnet is held against the hot spot, the LED is briefly green, followed by briefly red, then the LED is off. Modem Busy: registering on the Red LED Lit network and sending data. -
Page 4: Installation Examples
Installation Installation Examples Drilling If the tank does not contain a suitable positioned opening at the top of the tank, it will be necessary to manually drill into the top of the tank. 1. Select a flat area on the top of the tank located towards the center (F . -
Page 5: Operation
Operation Operation View Data Manual Measurement The TLM is configurable with Pulse Level 1. Hold the magnet (supplied) to the Hot Spot directly (level.gracopulse.com) to take readings at predefined under the LED to activate the device (F . 1). times. After configuring the TLM using the Pulse Level, apply the magnet to the hot spot until a solid red light appears, creating a connection between the TLM and... -
Page 6: Recycling And Disposal
Recycling and Disposal Recycling and Disposal End of Product Life At the end of the product’s useful life, dismantle and recycle it in a responsible manner. • Remove batteries, circuit boards, LCDs (liquid crystal displays), and other electronic components. Recycle according to applicable regulations. •... -
Page 7: Troubleshooting
Cause Solution Device is not reporting scheduled Out of RF range. Consider implementing a WiFi readings. network and using Graco’s WiFi RF obstruction. TLM. Ensure that the TLM is not encased in metal, since this would obstruct the signal. Weak or dead batteries. -
Page 8: Replace Batteries
Service Service After the TLM has been installed, the only additional 3. Verify that the device is right side up before maintenance or service necessary is changing the opening to prevent the batteries from falling out batteries. . 7). Replace Batteries WARNING Fire and Explosion Hazard Sparking can occur when changing batteries. - Page 9 Service 5. Make sure that the gasket is placed correctly (F Gasket 6. Reconnect the two halves, then replace the four (4) screws. 7. Re-install the TLM back into the tank opening. 8. Take a manual measurement to verify the TLM is activated.
- Page 10 Dimensions - Tank Specifications Dimensions - Tank Specifications Vertical Tank: Obround Tank: • Maximum Volume - 999,999 gallons or liters. • Maximum volume = 999,999 gallons or liters. • Tank walls must be uniformly vertical from empty • Tank end walls must be flat; they cannot be any level to full.
-
Page 11: Technical Specifications
Technical Specifications Technical Specifications Tank Level Monitor (TLM) Metric Compatible Fluids ® oil, kerosene, diesel, lubricants, additives, DEF/AdBlue coolants, water, waste oil, waste water, automatic transmission fluid (AFT), anti-freeze, and windshield washer solution Ultrasonic Tank Depth Measurement range 5.0 in. to 13 ft. 12 cm (minimum) to 400 cm Fluid Level Measurement Accuracy +/- 1.0 in. -
Page 12: Graco Extended Warranty
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection with accessories, equipment, materials or components sold but not manufactured by Graco.
