Revision: 11.2022-001
Industry
Ind

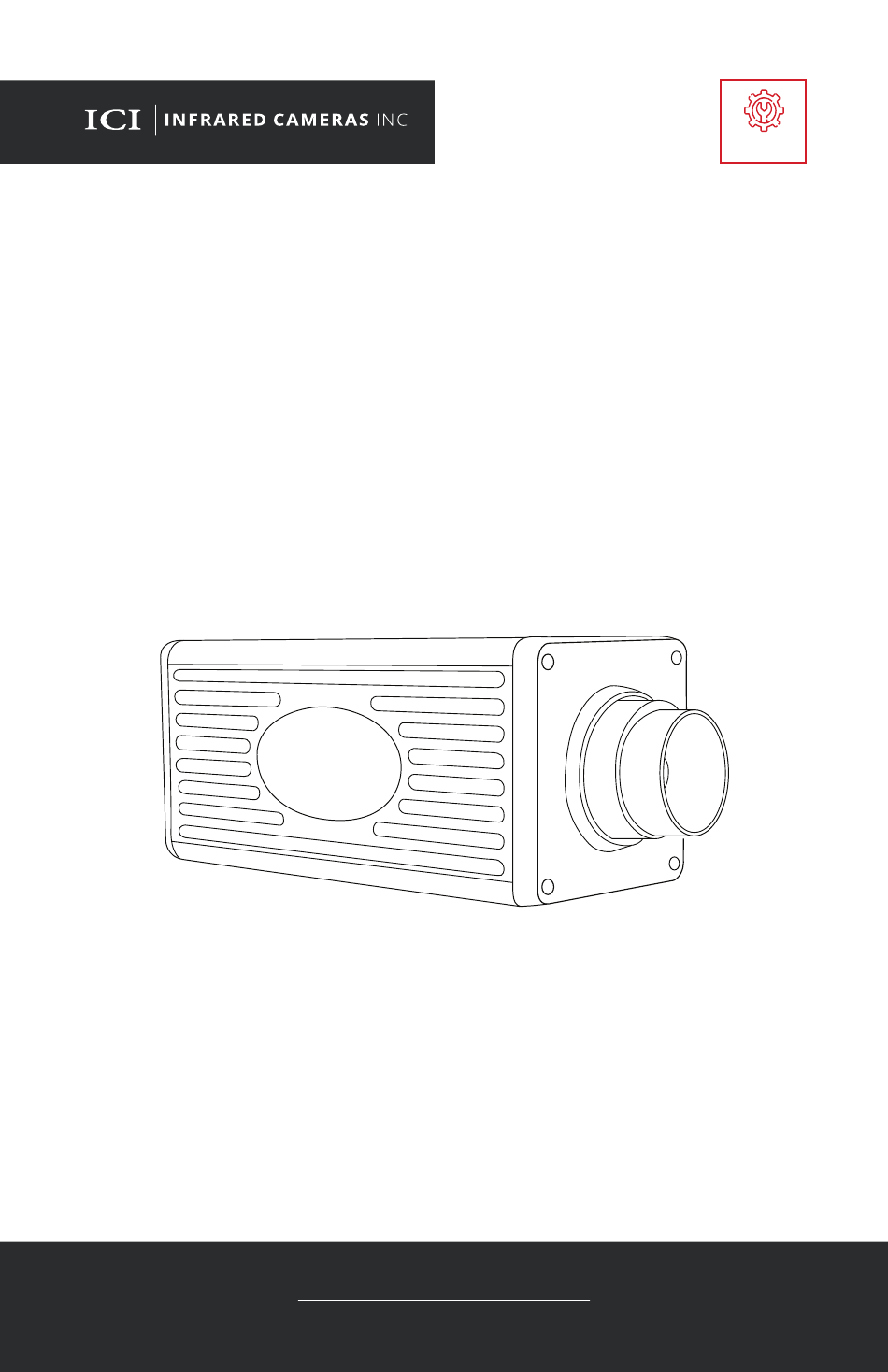

FMX 320/FMX 640 SERIES
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMX 640 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICI FMX 640 Series

  • Page 1 PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
  • Page 2 FMX 320/FMX 640 SERIES USER MANUAL Revision History 11.2022-001 Document created...
  • Page 3: Table Of Contents

    FMX 320/FMX 640 SERIES USER MANUAL Contents Disclaimers ���������������������������������������������������������� 5 Terms and Conditions ................. 5 U.S. Government Regulations ............. 5 Copyright ..................... 5 Quality Assurance ................5 Customer Help ..................5 User Notice����������������������������������������������������������� 6 Calibration ................... 6 Accuracy ..................... 6 Cybersecurity ..................
  • Page 4 FMX 320/FMX 640 SERIES USER MANUAL 11-2-4 Distance and Angle of Capture ......... 25 11-2-5 Humidity ................25 11-3 Histograms & Graphs ...............26 Troubleshooting �����������������������������������������������������27 12-1 Camera(s) not showing, camera(s) lagging, or software crashing 27 12-2 Thermal imager shuts off unexpectedly ........27 12-3 No thermal image ................
  • Page 5: Disclaimers

    FMX 320/FMX 640 SERIES USER MANUAL Disclaimers Terms and Conditions Warranty Terms and Condition of Sale are made available online at: https://infraredcameras.com/support/terms-and-conditions-of-sale/ 1-2 U.S. Government Regulations This product may be subject to U.S. Export Regulations. Please send any inquiries to support@infraredcameras.com 1-3 Copyright ©...
  • Page 6: User Notice

    FMX 320/FMX 640 SERIES USER MANUAL User Notice Calibration Annual calibration to the thermal camera is recommended. Contact customer service to schedule maintenance. Accuracy For very accurate results, we recommend that you wait a minimum of 5 minutes after you have started the camera before measuring a temperature.
  • Page 7: Intended Use

    FMX 320/FMX 640 SERIES USER MANUAL Intended Use The FMX 320/FMX 640 Series cameras are used for surface temperature assessment of energy emitted from the first 1/1000 of an inch of a subject. industrial and petrochemical buildings, electrical plants, Environment of use: security rooms, science labs, animal reserves as well as environmental conservatories, among others.
  • Page 8: Training

    FMX 320/FMX 640 SERIES USER MANUAL Training To read about infrared training, visit: https://infraredtraininginstitute.com/...
  • Page 9: Safety Information

    FMX 320/FMX 640 SERIES USER MANUAL Safety Information • This device must be installed by qualified service personnel or system installation personnel. • Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 FMX 320/FMX 640 SERIES USER MANUAL • Do not put the product into a fire. • It is recommended to calibrate the device(s) annually. • If the device operates abnormally, please contact the supplier and do not dismantle the device on your own.
  • Page 11: Technical Specifications

    FMX 320/FMX 640 SERIES USER MANUAL Technical Specifications FMX 320 P FMX 640 P Pixel Resolution 336 x 256 640 x 512 Standard: ± 1°C (± 1.8 °F) or ±1% Accuracy Hi-Temp: ± 5°C (± 9 °F) or ± 5% Standard: -20 °C to 120 °C (-4 °F to 248 °F)
  • Page 12 FMX 320/FMX 640 SERIES USER MANUAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE FMX 320 S FMX 640 S Pixel Resolution 336 x 256 640 x 512 Standard: ± 1°C (± 1.8 °F) or ±1% Accuracy Hi-Temp: ± 5°C (± 9 °F) or ± 5% Standard: -20 °C to 120 °C (-4 °F to 248 °F)
  • Page 13: Lens Options

    FMX 320/FMX 640 SERIES USER MANUAL Lens Options FMX 320 Lens Options Focal Length Focus Type FOV (HxV) 4.1 mm Manual 80°x60° 5 mm Manual 58°x44.5° 8 mm Manual 40°x30° 9 mm Athermal 35°x26° 12.5 mm Manual 25°x18.8° 16.7 mm Athermal 18.8°x14°...
  • Page 14: Structure

    FMX 320/FMX 640 SERIES USER MANUAL Structure Appearance and Definitions of Housing Interface Definitions of Housing Interface Mirco-USB interface RJ-45 Internet access...
  • Page 15: Package Includes

    FMX 320/FMX 640 SERIES USER MANUAL Package Includes FMX Series IR Camera Software USB Drive Option 1: Combo Cable Option 2: Power Adapter and Ethernet Cable ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION...
  • Page 16: Quick Start Instructions

    FMX 320/FMX 640 SERIES USER MANUAL Quick Start Instructions Option 1 Setup Mount the FMX Series camera to a Plug Mirco-USB end of the combo tripod using the ¼-20 mount. cable into the 5V DC port on the back of the FMX Series camera.
  • Page 17 FMX 320/FMX 640 SERIES USER MANUAL Plug the other end of the Plug the Ethernet combo cable (same Ethernet cable into the Ethernet side as the Micro-USB) into the FMX port of the laptop computer. Series camera Ethernet port. Plug USB into an open USB Power on devices.
  • Page 18: Option 2 Setup

    FMX 320/FMX 640 SERIES USER MANUAL Option 2 Setup SOME FMX SERIES IR CAMERA PACKAGES WILL COME WITH A POWER ADAPTER AND ETHERNET CABLE INSTEAD OF A COMBO CORD. COMPLETE STEP A FOR OPTION ONE SETUP BEFORE CONTINUING WITH THE FOLLOWING STEPS.
  • Page 19: Software Installation

    FMX 320/FMX 640 SERIES USER MANUAL Power on devices. Software Installation Install IR Flash software using the Once installed, launch IR Flash software USB drive. Refer to the IR software by double-clicking the Flash User Manual for instructions. associated desktop icon.
  • Page 20: Operation Instructions

    FMX 320/FMX 640 SERIES USER MANUAL Operation Instructions IP Address Configuration The FMX 320 and 640 comes configured with static IP address for the infrared camera. The infrared camera lies at 192.168.10.117. Connecting the computer requires setting the IPv4 settings of the Ethernet port to a static IP address in the same “Class C.”...
  • Page 21: Ir Flash Pro

    FMX 320/FMX 640 SERIES USER MANUAL IR Flash Pro Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive.
  • Page 22: Cleaning And Maintenance

    FMX 320/FMX 640 SERIES USER MANUAL Cleaning and Maintenance 10-1 Cleaning the Germanium Lens Do not use corrosive chemicals on the optical glass components. The germanium window surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches.
  • Page 23: Radiometry

    FMX 320/FMX 640 SERIES USER MANUAL Radiometry 11-1 Introduction to Radiometry The basic reason for employing image processing programs when analyzing IR images is to have a fast and comprehensive means to determine the information content of an image in numerical terms. Radiometry is considered the base from which to conduct this analysis.
  • Page 24: Detail Parameters

    FMX 320/FMX 640 SERIES USER MANUAL 11-2-1 Detail Parameters Name, Date, and Time information is automatically recorded and stored when and image is captured. Images have a default name of “XXYZ_IR” where “X” is a series of numbers. Users can enter notes in the Comments section. Location/ GPS is captured if enabled.
  • Page 25: Ambient Temperature

    FMX 320/FMX 640 SERIES USER MANUAL 11-2-3 Ambient Temperature The Ambient Temperature, which is often referred to as the background, is the temperature of the air surrounding the target object. This number can affect surfaces whose energy will hit the face of the target object and reflect from it into the camera’s field of view.
  • Page 26: Histograms & Graphs

    FMX 320/FMX 640 SERIES USER MANUAL 11-3 Histograms & Graphs The bottom right corner of the screen plots image information in the form of a histogram or a 3D rendering. It also allows users to visualize the temperature data over time for any/all ROIs placed on the image; the last image below shows a plot for three Regions of Interest.
  • Page 27: Troubleshooting

    FMX 320/FMX 640 SERIES USER MANUAL Troubleshooting If the user encounters any problems while using the imager, refer to the following options. If the problem persists, disconnect the power and contact the customer support department. 12-1 Camera(s) not showing, camera(s) lagging, or software crashing •...
  • Page 28: Unclear Or Dark Visible Images

    FMX 320/FMX 640 SERIES USER MANUAL 12-5 Unclear or dark visible images • Turn on lights in imaging area • If lens is foggy, use professional equipment to clean the lens 12-6 Temperature readings are incorrect • Turn off the device; then, turn it back on •...
  • Page 29: About Ici

    FMX 320/FMX 640 SERIES USER MANUAL About ICI ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
