APEX 200
User Manual V1.0.6
ICI Infrared Cameras Inc.

Advertisement

Table of Contents
loading

Summary of Contents for ICI APEX 200

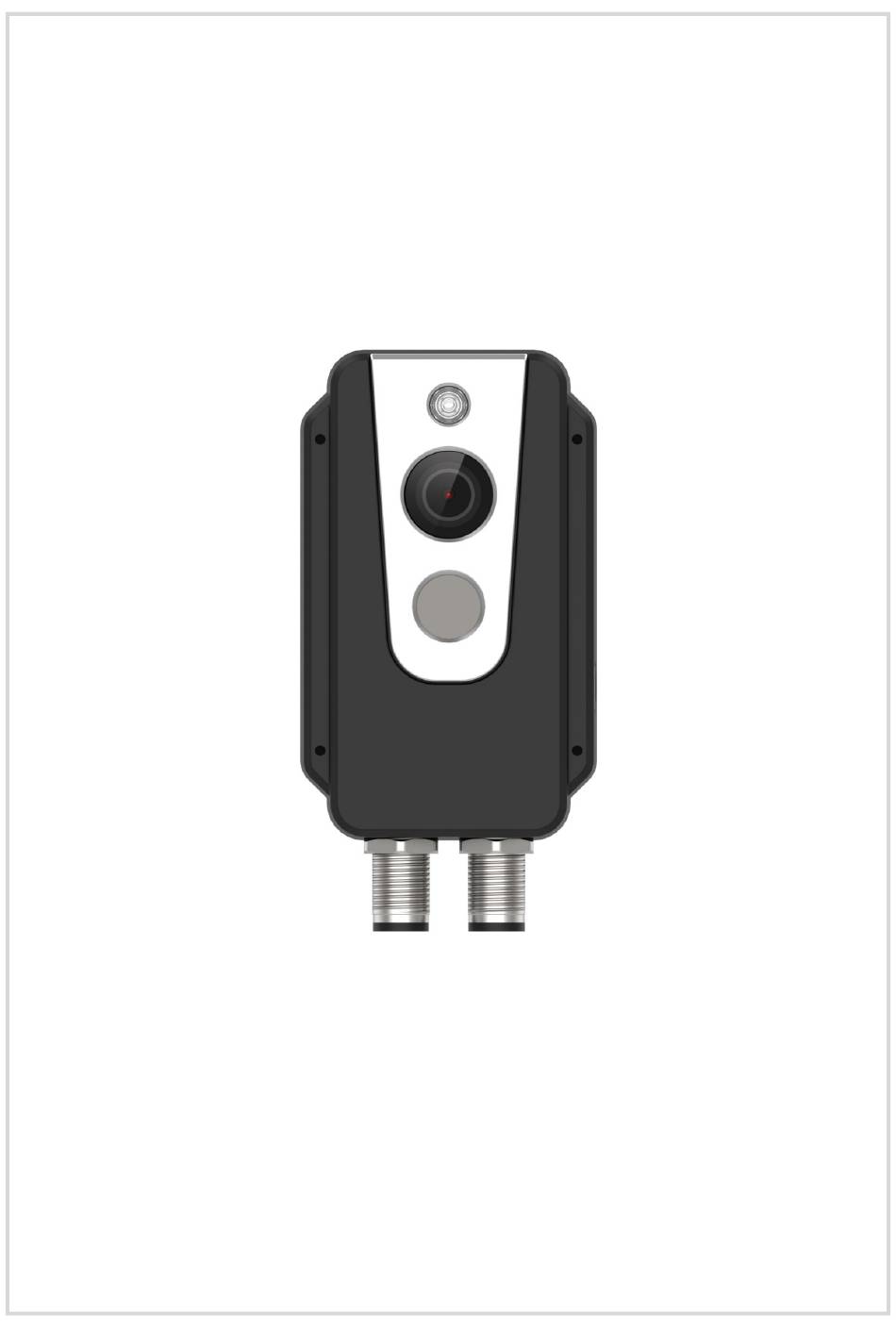

  • Page 1 APEX 200 User Manual V1.0.6 ICI Infrared Cameras Inc.
  • Page 2: Table Of Contents

    APEX 200 User Manual Table of Contents 1.Safety Information..............................1 3.Product Figure and Explanation........................3 4.Quick Start Guide..............................4 5.Product and Accessories List..........................5 6.Mechanical Installation............................6 6.1 Installing Housings with Screws......................... 7 6.1.1 Installing Front Housing........................7 6.1.2 Installing Rear Housing........................7 6.2 Front Mounting...............................8...
  • Page 3: Safety Information

    APEX 200 User Manual 1.Safety Information WARNING 1.Before using the cleanser, make sure you read all applicable material safety data sheets (MSDS) and warning labels on cleanser containers. 2.Do not use too long screws when installing the front/rear mounting bracket, which may damage the thermal camera.
  • Page 4 APEX 200 User Manual 2.Product Introduction Accurate temperature measurement Support multi-protocol access to industrial or IoT systems Compact size Main Features Support PoE Bi-spectrum display Powerful web client Wi-Fi hotspot Monitoring power distribution cabinet Typical Applications Monitoring warehouse Monitoring production line...
  • Page 5: Product Figure And Explanation

    APEX 200 User Manual 3.Product Figure and Explanation Explanation Fill light Digital camera Infrared lens Ethernet and PoE cable interface DC power supply and alarm input/output Power LED light Network LED light Reset button Table 3.1 Explanation of Product Appearance...
  • Page 6: Quick Start Guide

    There are two power supply methods for APEX 200. Connect the device to the PoE port of the power supply through the M12 8-pin adapter cable or connect to the DC power supply through the M12 12-pin adapter cable.
  • Page 7: Product And Accessories List

    APEX 200 User Manual 5.Product and Accessories List Product and Accessories APEX 200 44cm long M12 8-pin adapter cable Fixing accessories (screws, mounting stickers) Optional Accessories M12 12-pin adapter cable &alarm input/output cable front/rear mounting bracket Table 5.1 Product and Accessories List...
  • Page 8: Mechanical Installation

    APEX 200 User Manual 6.Mechanical Installation The front and back of the thermal camera are equipped with mounting interfaces, which can be installed with screws after the holes are punched with the auxiliary stickers in the package. In addition, we also provide two optional forms of front and back installation.
  • Page 9: Installing Housings With Screws

    APEX 200 User Manual 6.1 Installing Housings with Screws 6.1.1 Installing Front Housing As shown in Figure 6.1, please paste the alignment guide to the position to be installed, and then drill 4 Φ2.5 mounting holes according to the markers on the alignment guide, and use 4 ST2.2 screws to install the front housing.
  • Page 10: Front Mounting

    APEX 200 User Manual 6.2 Front Mounting There are four M4 threaded holes on the front mounting bracket for fixing. Step 1 Install the front mounting bracket As shown in Figure 6.3, connect the front mounting bracket and the thermal camera with ST2.2*8 self-tapping screws.
  • Page 11: Rear Mounting

    APEX 200 User Manual 6.3 Rear Mounting There are four M4 threaded holes on the rear mounting bracket for fixing. Step 1 Install the rear mounting bracket As shown in Figure 6.6, connect the rear mounting bracket and the thermal camera with ST2.2*8 self-tapping screws.
  • Page 12: Alarm Input And Output

    APEX 200 User Manual 7.Alarm Input and Output 7.1 Alarm Input Support 1 active alarm input (photoelectric isolation), and the input voltage range is 3~5.5V. 7.2 Alarm Output Support 2 alarm outputs (switch value and photoelectric isolation), 3~25VDC, maximum 85mA.
  • Page 13: Protocol Introduction

    *N:0~15 8.2 MQTT APEX 200 supports the MQTT protocol, as defined below: 1. The server sends the subject. APEX 200_ICI 2. Set the configuration MQTT parameters through the Web interface, and enable the MQTT function. The...
  • Page 14 APEX 200 User Manual server after restarting. 3. Data format is as follows: Image data: "timestamp": "2021.4.9.15:52", #time stamp "ip": "192.168.1.21", #camera IP "type": #data type:0-image 1-temperature 2-temperature measurement "resolution": "1280*720", #visible light resolution "resolution": "1024*768", #thermal resolution "formate": ".jpg", #image format "image": ".."...
  • Page 15 APEX 200 User Manual "type": # data type:0-image 1-temperature 2-temperature measurement "unit": "C", #Unit:℃ "data": ".." # temperature data base64 encode Temperature measurement data: temperature measurement function needs to be enabled in Web interface. "timestamp": "2021.4.9.15:52", # time stamp "ip": "192.168.1.21", # camera IP "type":...
  • Page 16 APEX 200 User Manual "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 2, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 3, "enable":0, "type": "x0": "y0": "x1":...
  • Page 17 APEX 200 User Manual "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 5, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 6, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0...
  • Page 18 APEX 200 User Manual "index": 8, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 9, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 10, "enable":0, "type": "x0":...
  • Page 19 APEX 200 User Manual "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 12, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0 }, { "index": 13, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0,...
  • Page 20 APEX 200 User Manual }, { "index": 15, "enable":0, "type": "x0": "y0": "x1": "y1": "maxTemp": 0, "minTemp": 0, "avgTemp": 0...
  • Page 21: Protocol Introduction

    APEX 200 User Manual 9.Protocol Introduction 9.1 Modbus TCP This camera supports Modbus TCP protocol for transmitting temperature measurement information. M12 8-pin to RJ45 cable is required when using this protocol. Camera IP(default: 192.168.1.20) Port 1502 Register Length Data Address...
  • Page 22: Technical Data

    APEX 200 User Manual 10.Technical Data Detector Data Detector Type VOx, Uncooled FPA detector Spectral Range 8~14μm Pixel Pitch 12μm Imaging and Optical Data Resolution 256×192 NETD 40mK Frequency 30Hz Infrared Lens 3.2mm 56°×42° Focus focus-free Visible Light Pixels 2 MP (SC2310) Visible Light 72°×61°...
  • Page 23 APEX 200 User Manual distance, atmospheric temperature, emissivity, Environment Variable Correction reflection temperature, atmospheric transmittance Alarm The highest temperature, lowest temperature and average temperature in all temperature Alarm Function measurement points, temperature measurement areas and lines can be configured with separate alarm outputs.
  • Page 24 APEX 200 User Manual Image transmission Image Stream Format H.264/H.265 visible light1080P; infrared support super resolution up Resolution to 4X, Image Max 1024×768 Stream thermal image, visible image, Image Mode fusion, DDE, and parallel display of visible light images are supported.
  • Page 25 APEX 200 User Manual Ethernet Ethernet Functions control, imaging and power supply Ethernet Connector Type RJ45/ hotspot of thermal camera Ethernet Power Supply PoE is supported Network Protocol TCP,UDP,RTSP,HTTP,SMTP Interface Protocol ONVIF,GB28181,Modbus TCP,MQTT Typical Power Supply 12~30V DC External Power IEEE 802.3af...
  • Page 26 Cross-platform SDK that supports secondary development of customers. M12 A type 8-pin, including 10M / 100M adaptive Ethernet port and PoE power External Interface supply; M12 A type 12-pin, including DC power supply, alarm input and output; Table 10.1 APEX 200 Performance Parameters...
  • Page 27: Pin Configuration For Interfaces

    APEX 200 User Manual 11.Pin Configuration for Interfaces 11.1 Ethernet Pin Configuration (8pin) Configuration Configuration...
  • Page 28: Power Pin Configuration (12Pin)

    APEX 200 User Manual 11.2 Power Pin Configuration (12pin) Configuration Configuration Power + ALARM_POWER2 Power + ALARM_OUT2 Power Ground ALARM_IN+ Power Ground ALARM_IN- ALARM_POWER1 ALARM_OUT1...
  • Page 29: Mechanical Drawings

    APEX 200 User Manual 12.Mechanical Drawings...
  • Page 30: Common Troubleshooting

    APEX 200 User Manual 13.Common Troubleshooting Troubles Possible Cause Solutions The supply voltage Check whether the power exceeds the normal supply voltage is between 12 working supply voltage Camera cannot be and 24V range. started. The power connector is Check whether the power cable loose.
  • Page 31: Cleaning Thermal Camera

    APEX 200 User Manual 14.Cleaning Thermal Camera 14.1 Cleaning Camera Housing, Cables and Other Items Camera Housing, Cables and Other Items One of the following liquids can be used. Liquids 1.Warm water 2.A Weak detergent solution Cleaning Tools A soft cloth Please follow this procedure: 1.Soak a soft cloth in the liquid.
  • Page 32: Cleaning Infrared Lens

    APEX 200 User Manual 14.2 Cleaning Infrared Lens Cleaning Infrared Lens One of the following liquids can be used. 1.Commercial lens cleaning liquid with more than 30% is Liquids opropyl alcohol. 2.96% ethyl alcohol(C OH). Cleaning Tools Dustless cloth, cotton wool Please follow this procedure (Take dustless cloth as an example).
  • Page 33: Appendix A Emissivity Of Common Materials

    APEX 200 User Manual Appendix A Emissivity of Common Materials Material Temperature(℃) Emissivity Water 0~100 0.95~0.98 Soil(dry) 0.92 Soil(wet) 0.95 Woods 0.962 Sand Sandstone 0.909~0.935 PVC plastic 0.93 Asphalt 0.967 Paint 0.92~0.94 Wallpaper 0.85~0.90 Cloth 0.98 Concrete 0.92 Pavement surface 0.974...
  • Page 34 FCC Statement: MODIFICATION: Any changes or modifications not expressly approved by the grantee of this de- vice could void the user’s authority to operate the device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference re- ceived, including interference that may cause undesired operation.
