Industry
Ind

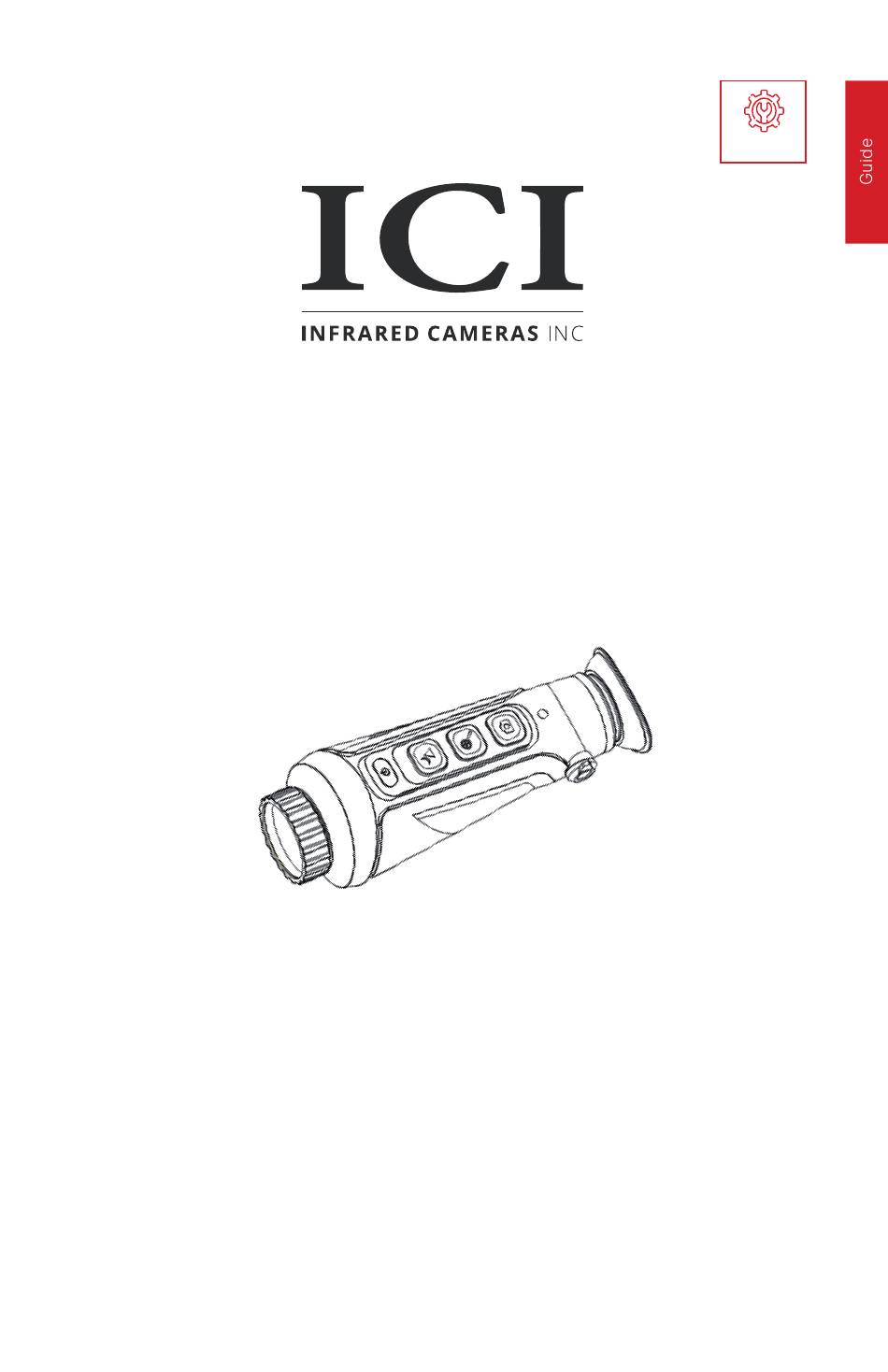

TRACE IR 25/TRACE IR 35 SERIES
QUICK START GUIDE
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
Phone: (409) 861-0788
Toll Free: (866) 861-0788
infraredcameras.com
support@infraredcameras.com
We Are IR ™

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRACE IR 25 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICI TRACE IR 25 Series

Summary of Contents for ICI TRACE IR 25 Series

  • Page 1 Edit Text Industry TRACE IR 25/TRACE IR 35 SERIES QUICK START GUIDE ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcameras.com support@infraredcameras.com We Are IR ™...
  • Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 3: Package Includes

    Package Includes Trace IR Monocular USB Cable ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION...
  • Page 4 Structure Focus adjuster Lens adjust Reset USB Type-C Diopter knob 1/4”-20 mount Power; Sleep mode Laser...
  • Page 5 Set Up The camera can be used as Mount the fully charged device a handheld device. to a tripod using the ¼”-20 mount located on the body. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF OBJECT(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
  • Page 6 TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER BUTTON FOR AT LEAST TWO SECONDS. Power on device. PRESS AND HOLD THE POWER BUTTON FOR MORE THAN 5 SECONDS TO SHUT DOWN THE CAMERA.
  • Page 7 Operations Power Press and hold to power On/Off. The green light is always on when the unit is powered on. After powering on the device, quick press to initiate sleep mode. Press any key to wake device from sleep mode. Color-code Short press to toggle polarity (color palette).
  • Page 8 Access User Menu/Navigation Press and hold the Color-code and Zoom buttons simultaneously to access the main menu. Quick press the Power or Color-code button to navigate menu. Quick press the Zoom or Photo button to adjust values. Press and hold the Color-code and Zoom buttons simultaneously to exit the main menu.
  • Page 9 Distance function displays the estimated distance to a specific subject. Picture-in-picture function enables the dual window mode. Hot spot tracking automatically tracks the highest temperature point on the screen. Display sleep time: 0/5/30/60 minutes; default 0 Switch the cursor type and display position which is adjustable.

  • Page 10: Charging Instructions

    Charging Instructions Plug on end of the USB cable into Plug the other end of the USB cable the charge port on the device. into a compatible power adapter. Plug power adapter into a 110/120V electrical outlet. CHARGE THE BATTERY FOR A MINIMUM OF 3 HOURS BEFORE USING THE DEVICE.
  • Page 11 Website: www.infraredcameras.com You may reach a representative by phone or email Mon – Fri 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
