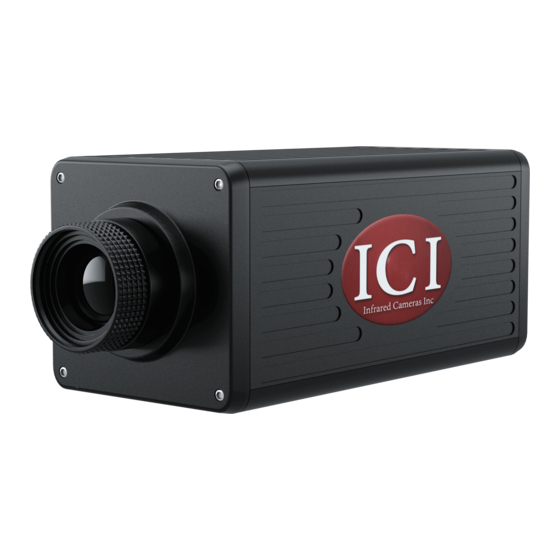

FMX 320/FMX 640 SERIES IR CAMERA
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
THIS DEVICE IS INTENDED FOR ADJUNCTIVE USE WITH OTHER CLINICAL DIAGNOSTIC
PROCEDURES TO MEASURE HUMAN BODY TEMPERATURE VIA NON-CONTACT SKIN
MEASUREMENTS VISUALIZED FROM THE HUMAN FACE. NOT MEANT FOR STANDALONE
CLINICAL DIAGNOSTIC PROCEDURES OR TO TREAT OR DIAGNOSE PATIENTS.
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com
USER MANUAL
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
Edit Text
Outli
Medical
Medical
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICI FMX 320 Series
Summary of Contents for ICI FMX 320 Series
- Page 1 MEASUREMENTS VISUALIZED FROM THE HUMAN FACE. NOT MEANT FOR STANDALONE CLINICAL DIAGNOSTIC PROCEDURES OR TO TREAT OR DIAGNOSE PATIENTS. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
- Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 3: Table Of Contents
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL Contents General Description Safety Information Intended Use Technical Specifications Structure Package Contents Installation Instructions Computer Setup Cleaning and Maintenance Site and System Validation Checklist Troubleshooting About ICI... -
Page 4: General Description
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 1. General Description FMX 320 and FMX 640 Series IR cameras are specially designed to take the body temperature of a person and to report the total number of persons scanned. It is used in for temperature screening applications. -
Page 5: Technical Specifications
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 4. Technical Specifications FMX 320 P FMX 640 P Detector Array UFPA (VOx) Pixel Pitch 17 μm Lens dependent Measurement Distance Lens dependent Pixel Resolution 336 x 256 640 x 512 Spectral Band 7 μm to 14 μm Thermal Sensitivity (NETD) <... - Page 6 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL FMX 320 S FMX 640 S Detector Array UFPA (VOx) Pixel Pitch 17 μm Lens dependent Measurement Distance Lens dependent Pixel Resolution 336 x 256 640 x 512 Spectral Band 7 μm to 14 μm Thermal Sensitivity (NETD) <...
-
Page 7: Structure
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 5. Structure 5-1 Appearance 5-2 Definitions of Housing Interface Mirco-USB interface RJ-45 Internet access... -
Page 8: Package Contents
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 6. Package Contents Temperature Reference AC Power Cord Option 1: Combo Cable FMX Series IR Camera AC Power Adapter AC Power Cord Software USB Drive Laptop Option 2: Power Adapter and Ethernet Cable ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... -
Page 9: Installation Instructions
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 7. Installation Instructions SELECT AN APPROPRIATE AREA FREE OF IMMEDIATE AIRFLOW FROM DOORWAYS CONDITIONING/VENTILATION SYSTEMS. THE SELECTED AREA SHOULD HAVE A STABLE AMBIENT TEMPERATURE BETWEEN 20 °C AND 24 °C (68 °F TO 75.2 °F)AND RELATIVE HUMIDITY RANGE FROM 10% TO 50%. - Page 10 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL Mount the Temperature Reference to a tripod using the ¼-20 mount. Plug power cord Plug power cord into a into Temperature Reference. 110/120V electrical outlet.
- Page 11 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL Mount the FMX Series IR Camera to Plug Mirco-USB end of the combo a tripod using the ¼-20 mount. cable into the 5V DC port on the back of the FMX Series IR Camera. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
- Page 12 REFERENCE SOURCE TO WARM UP. THIS WILL PROVIDE THE MOST ACCURATE SKIN TEMPERATURE MEASUREMENTS. SOFTWARE ARRIVES INSTALLED ON COMPUTERS AND TABLETS PURCHASED FROM ICI AS COMPLETE SYSTEMS AND IT WILL LAUNCH AUTOMATICALLY ON STARTUP. AFTER THE SOFTWARE LAUNCHES THE USER SHOULD ENSURE THE TARGET ZONE IS...
- Page 13 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 7-2 Option Two Setup SOME FMX SERIES IR CAMERA PACKAGES WILL COME WITH A POWER ADAPTER AND ETHERNET CABLE INSTEAD OF A COMBO CORD. FOLLOW STEPS A-G FOR OPTION ONE SETUP BEFORE CONTINUING WITH THE FOLLOWING STEPS.
- Page 14 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL Power on devices. FMX 320 & FMX 640 SERIES IR CAMERA 7-3 Full Assembly Diagram SETUP GUIDE GRAPHIC FOR ILLUSTRATION PURPOSES ONLY 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcamerasinc.com sales@infraredcamerasinc.com...
- Page 15 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL CRITICAL INFORMATION • The technology should be used to measure only one subject’s temperature at a time. • Measurements should not be solely, or primarily, relied upon to diagnose or exclude a diagnosis of any disease. •...
-
Page 16: Computer Setup
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 8. Computer Setup 8-1 IP Address Configuration The FMX 320 and 640 comes configured with static IP address for the infrared camera. The infrared camera lies at 192.168.10.117. Connecting the computer requires setting the IPv4 settings of the Ethernet port to a static IP address in the same “Class C.”... - Page 17 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 8-1 IR Flash Skin Temperature Monitor Software (IR Flash STM) Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive.
-
Page 18: Cleaning And Maintenance
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 9. Cleaning and Maintenance 9-1 Cleaning the Germanium Lens Do not use corrosive chemicals on the optical glass components. The germanium window surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches. -
Page 19: Site And System Validation Checklist
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL Site and System Setup Validation Checklist Site: _______________________________ System: ___________________________ Contact Person: __________________ Date: ______________________________ **All those tasked with the initial setup of the temperature screening equipment must be present during this training. ***This portion of the validation requires a live video feed with the instructors. - Page 20 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL □ Design this pathway so there is an equilibration time □ No restrooms on ingress pathway □ Signage should instruct for removal of glasses, headwear, and masks □ Mark the point of measurement on the floor (“V/X” or a set of footprints) □...
- Page 21 10-8 Final Step Final validation is dependent upon a signed copy of this checklist from each person responsible for each site. Upon completion please sign below: ICI representative: Company representative: Signature: _____________________________ Signature: _______________________________ Print Name: ____________________________ Print Name: ______________________________...
-
Page 22: Troubleshooting
FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL 11. Troubleshooting 11-1 Camera(s) not showing, camera(s) lagging, or software crashing • Close and reopen software • Reconnect power & Ethernet cables • Ensure that camera has been powered on for a few minutes •... - Page 23 FMX 320/FMX 640 SERIES IR CAMERA USER MANUAL • Reconnect power to camera & Temperature Reference Source • Temperature Reference Source power switch is on • Camera and Temperature Reference Source powered on for several minutes • Ensure temperatures on back of Temperature Reference Source match •...
-
Page 24: About Ici
You may reach a representative by phone or email Monday – Friday 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
