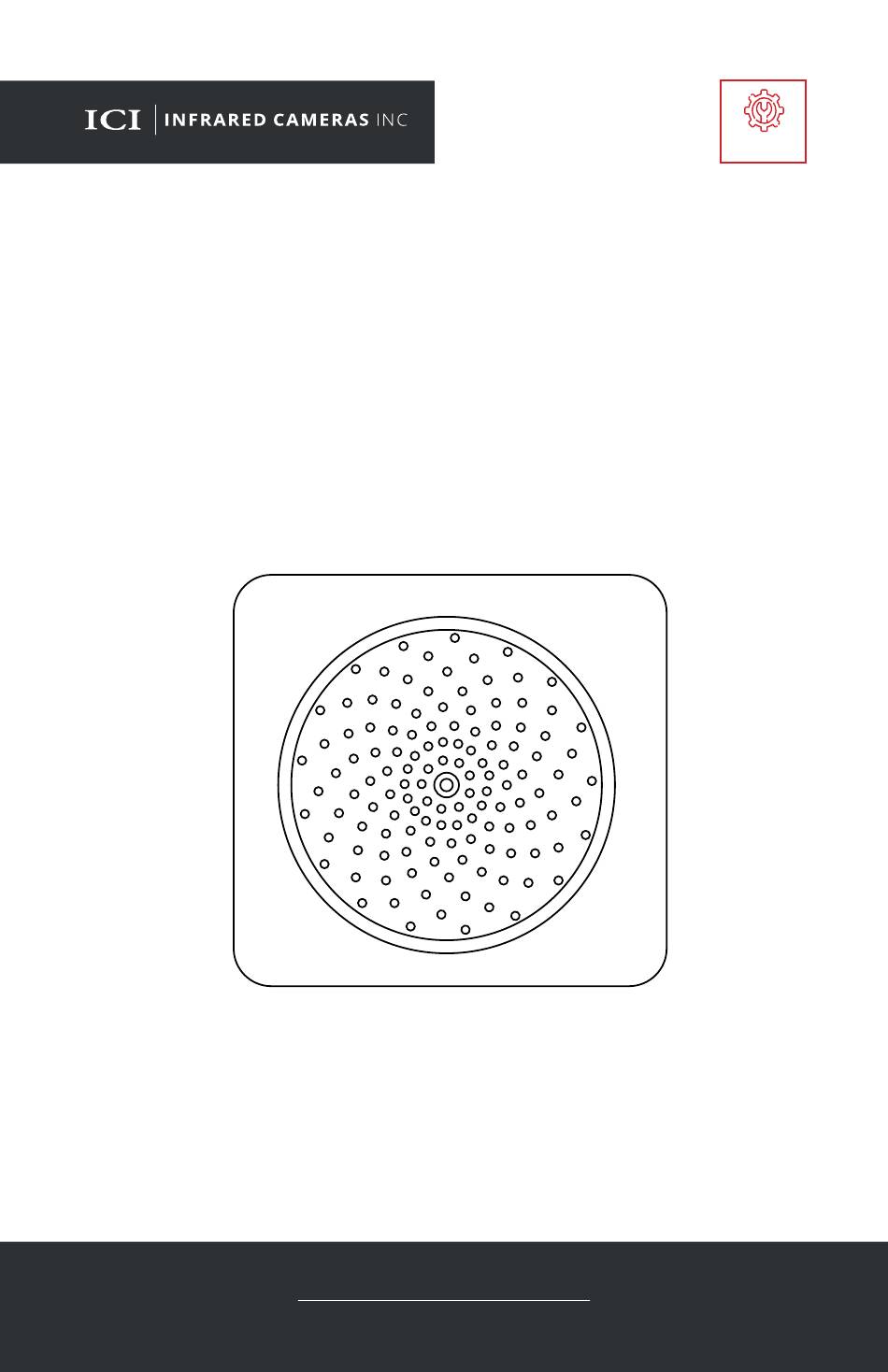

Revision: 06.2024-001
Industry
Ind
SOUND DETECT FM
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUND DETECT FM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICI SOUND DETECT FM

Summary of Contents for ICI SOUND DETECT FM

  • Page 1 PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
  • Page 2 SOUND DETECT FM USER MANUAL Revision History 06.2024-001 Document created...

  • Page 3: Table Of Contents

    Set Up: Fixed Column Installation ........... 16 Set Up: Hanging Fixed Installation ..........19 Operation Instructions ����������������������������������������������22 Cable Management ................22 Power On/Off the device ..............22 Sound Detect FM Minimum Leakage ..........23 IP Address Configuration ..............24 8-4-1 Static IP Address Configuration .......... 24 8-4-2 Dynamic IP Address Configuration ........
  • Page 4 SOUND DETECT FM USER MANUAL 10-2 Device shuts off unexpectedly ............28 10-3 No image ..................28 10-4 Unclear or dark visible images ............28 10-5 Camera out of focus ...............28 10-6 Data is missing or has strange readings ........28 About ICI ������������������������������������������������������������29...

  • Page 5: Disclaimers

    SOUND DETECT FM USER MANUAL Disclaimers Terms and Conditions Warranty Terms and Condition of Sale are made available online at: https://infraredcameras.com/support/terms-and-conditions-of-sale/ U.S. Government Regulations This product may be subject to U.S. Export Regulations. Please send any inquiries to support@infraredcameras.com Copyright ©...

  • Page 6: User Notice

    SOUND DETECT FM USER MANUAL User Notice Calibration Annual calibration to the thermal camera is recommended. Contact customer service to schedule maintenance. Accuracy For very accurate results, we recommend that you wait a minimum of 5 minutes after you have started the camera before measuring a temperature.

  • Page 7: Intended Use

    SOUND DETECT FM USER MANUAL Intended Use The Sound Detect FM is a standalone system for localizing sound sources and acoustic analysis. It uses 128 microphones to locate acoustic sounds and visualizes them. The device is not a measurement instrument for precise acoustic or other measurements.

  • Page 8: Training

    SOUND DETECT FM USER MANUAL Training To read about infrared training, visit: https://infraredtraininginstitute.com/...

  • Page 9: Safety Information

    SOUND DETECT FM USER MANUAL Safety Information • Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Technical Specifications

    SOUND DETECT FM USER MANUAL Technical Specifications Acoustic Measurement 128 MEMS microphones Low limit: < 25.7 dB Dynamic Range High limit: > 132.5 dB Bandwidth 2 kHz to 48 kHz, settings dependent Distance 25 m (82’) recommended, up to 120 m (394’) Operation Range -10 °C to 50 °C (14 °F to 122 °F)

  • Page 11: Package Includes

    SOUND DETECT FM USER MANUAL Package Includes Sound Detect FM device Ethernet Cable Power Adapter Coaxial Cable Software USB Drive ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE CONTINUING.

  • Page 12: Structure

    SOUND DETECT FM USER MANUAL Structure Appearance and Definitions of Interface Microphone Array Communication Port Video Camera Power Port Heat Sinks THE HEAT SINKS WILL BECOME HOT WHILE USING THE DEVICE. BEWARE OF TOUCHING THEM. LONG TERM CONTACT MAY CAUSE BURNS.

  • Page 13: Quick Start Instructions

    SOUND DETECT FM USER MANUAL Quick Start Instructions Set Up: Fixed Wall Installation Mark the fixing holes for the mounting bracket; then, mount the mounting bracket using expansion bolts. Mount the Sound Detect FM to the mounting bracket using standard mounting screws.
  • Page 14 SOUND DETECT FM USER MANUAL Remove the caps from the ports. Insert the Ethernet cable into the left Insert the Power cable into the right port and rotate the locking mechanism port and rotate the locking mechanism to the right to secure the cable.
  • Page 15 SOUND DETECT FM USER MANUAL Follow the basic system map to finish connecting the system. ADS Store Audio and Video Surveillance Video/Control/Data Video with Overlay Data Video/Control/Data Power Server Side PC Junction Box Sound Detect FM...

  • Page 16: Set Up: Fixed Column Installation

    SOUND DETECT FM USER MANUAL Set Up: Fixed Column Installation Affix the mounting bracket using secure cables or straps. Mount the Sound Detect FM to the mounting bracket using standard mounting screws.
  • Page 17 SOUND DETECT FM USER MANUAL Remove the caps from the ports. Insert the Ethernet cable into the left Insert the Power cable into the right port and rotate the locking mechanism port and rotate the locking mechanism to the right to secure the cable.
  • Page 18 SOUND DETECT FM USER MANUAL Follow the basic system map to finish connecting the system. ADS Store Audio and Video Surveillance Video/Control/Data Video with Overlay Data Video/Control/Data Power Server Side PC Junction Box Sound Detect FM...

  • Page 19: Set Up: Hanging Fixed Installation

    SOUND DETECT FM USER MANUAL Set Up: Hanging Fixed Installation Mark the fixing holes for the mounting bracket on the ceiling; then, mount the mounting bracket using expansion bolts. Mount the Sound Detect FM to the mounting bracket using standard mounting screws.
  • Page 20 SOUND DETECT FM USER MANUAL Remove the caps from the ports. Insert the Ethernet cable into the left Insert the Power cable into the right port and rotate the locking mechanism port and rotate the locking mechanism to the right to secure the cable.
  • Page 21 SOUND DETECT FM USER MANUAL Follow the basic system map to finish connecting the system. ADS Store Audio and Video Surveillance Video/Control/Data Video with Overlay Data Video/Control/Data Power Server Side PC Junction Box Sound Detect FM...

  • Page 22: Operation Instructions

    SOUND DETECT FM USER MANUAL Operation Instructions Cable Management In installations where the camera is subject to vibrations or shocks the power cord may need an external cable management to avoid power port failure. The following images show two cable management solutions.

  • Page 23: Sound Detect Fm Minimum Leakage

    SOUND DETECT FM USER MANUAL Sound Detect FM Minimum Leakage Sound Detect FM Minimum Leakage (Pressure 0.5Mpa, 20-40kHz site environment noise 40dB) Distance to Sound Source (m) Leakage CCM(±1) 0.5-2 8-10 10-12 12-14 14-16 16-18 18-20...

  • Page 24: Ip Address Configuration

    SOUND DETECT FM USER MANUAL IP Address Configuration 8-4-1 Static IP Address Configuration The Sound Detect FM comes configured with static IP address for the infrared camera. The camera lies at 192.168.10.117. Connecting the computer requires setting the IPv4 settings of the Ethernet port to a static IP address in the same “Class C.”...

  • Page 25: Dynamic Ip Address Configuration

    Both wired and wireless connections support dynamic IP settings. IR Flash Pro Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive.

  • Page 26: Cleaning And Maintenance

    No direct and/or highly compressed air should be applied to the microphone array. If the suggested method doesn’t work and the microphone array is still badly soiled, contact customer service to schedule maintenance. ICI is not responsible for any damage caused by the user in an attempt to clean the microphone array.

  • Page 27: Storage

    SOUND DETECT FM USER MANUAL 10-5 Storage When the equipment is not in use, the device should be placed in a dust-free and moisture-free environment with a stable temperature and humidity. DO NOT USE CORROSIVE CLEANING SOLUTIONS ON THE OPTICAL GLASS COMPONENTS.

  • Page 28: Troubleshooting

    SOUND DETECT FM USER MANUAL Troubleshooting If the user encounters any problems while using the imager, refer to the following options. If the problem persists, disconnect the power and contact the customer support department. 10-1 Device does not power on •...
  • Page 29 SOUND DETECT FM USER MANUAL About ICI ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
