  • Page 1 A few simple steps to ensure perfect water, every time.
  • Page 2 Use and Care Guide MODELS: A1TL • A2TL Registration Please visit the website below to register your new water cooler within the first 30 days of purchase. Registration within the first 30 days will activate your one year warranty. www.avalonh2o.com/register-my-avalon-cooler Please keep your model number, order number and purchase date for future support.
  • Page 3: Table Of Contents

    Contents About Your Water Cooler Meet Your Avalon Product Part Names Indicator Lights Tech Specs Getting Started Unpacking Operation instructions Cleaning 11-13 Rinsing, Cleaning and Draining 14-15 Cleaning Troubleshooting 17-18 Safety 20-21...
  • Page 4: About Your Water Cooler

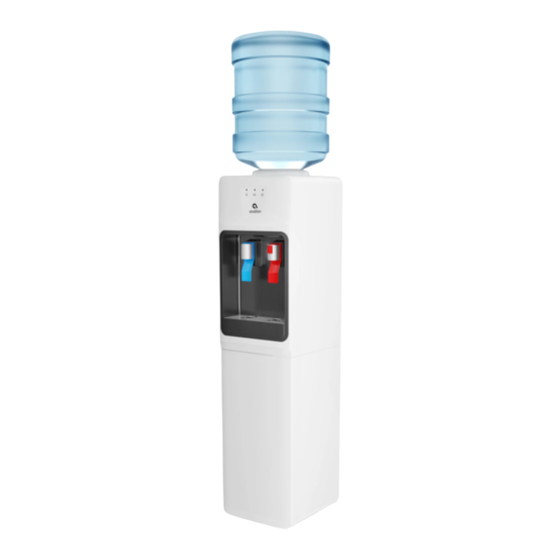

    About Your Water Cooler Meet Your Avalon Product Custom Temperature Top Loading Attractive Design Piping hot, Attractive design with Suitable for 3 or or crisp cold water press-paddle spouts 5 gallon bottles UL Listed Energy Star Approved Child Safety Feature We design &...
  • Page 5: Part Names

    About Your Water Cooler Part Names 2. Heating Indicator Light 1. Bottle Supporter 4. Power Indicator Light 7. Child Safety Lock 8. Hot Water Spout 5. Cold Water Spout 6. Cold Water Press Paddle 9. Hot Water Press Paddle 10. Drip Tray 11.
  • Page 6: Indicator Lights

    About Your Water Cooler Indicator Lights Power Indicator Light This light will remain on as long as the water cooler is plugged in to indicate that the cooler is on. Heating Indicator Light This light will indicate when the water is heating. The light will remain on while the water is heating and will turn off when it has reached the correct temperature of 185°F.
  • Page 7: Tech Specs

    About Your Water Cooler Tech Specs Model A1TL • A2TL Hot/Cold Temp Output 1.2L/min / 1.2L/min Hot Water Capacity 4 L/H ( ≥ 185°F) Hot Tank Volume 1.02 Liters Cold Water Capacity 2 L/H ( ≤ 47°F) Cold Tank Volume...
  • Page 8: Getting Started

    Getting Started...
  • Page 9: Unpacking

    Getting Started Unpacking Your Avalon Water Cooler The unit has been cleaned prior to departing from the factory. To remove any dust and debris that may collect during shipping we recommend cleaning the unit prior to installation. For cleaning instructions, see pages 11-15.
  • Page 10: Operation Instructions

    Getting Started Operation Instructions Do not plug in the machine or turn on the heating (#12) and cooling (#11) switches until water has begun to dispense from the cold (#5) and hot (#8) water spout. 1. Remove any label or sticker from 2.
  • Page 11 Getting Started Operation Instructions 3. Press the hot (#9) and cold (#6) 4. Once water is dispensing from both water press paddles for the hot spouts insert the power plug into a (#8) and the cold (#5) water spout power socket. Turn on (I) the heating to dispense a drop of water.
  • Page 12 Getting Started Operation Instructions 5. Once the switches are in the on position 6. When the water has reached the the heating indicator light (#2) and the appropriate temperatures for hot and cooling indicator light (#3) will turn on (I). It cold the indicator lights will turn off will take about 15 –...
  • Page 13 Cleaning...
  • Page 14: Rinsing, Cleaning And Draining

    Cleaning Rinsing, Cleaning, and Draining To prolong the lifetime of the machine, it is recommended that the unit be cleaned and sanitized manually about every six months. To clean the outside of the unit Use a disinfectant of your choice to wipe down the outside of the machine. Disinfectant does not come with this unit.
  • Page 15 Cleaning Rinsing, Cleaning, and Draining 3. Dispense about 2 liters of 4. Place a large bucket beneath the drain water from the unit into a bucket outlet (#14) located on the back of the unit. by pressing the hot water press Remove the drain cover and allow the water paddle (#9) and the cold water to drain from the unit.
  • Page 16 Cleaning Rinsing, Cleaning, and Draining 5. Remove any remaining water in 6. After draining is complete, the tanks by dispensing water from replace the drain cover and the hot water spout (#8) and the cold use the machine as normal. water spout (#5) into a bucket.
  • Page 17: Cleaning

    Cleaning Cleaning To remove mineral deposits that may have built up inside the the cold tank, mix 4 L of water with 200 g of citric acid crystals (not included) or cleaning solution of your choice. 1. Twist off the bottle supporter. 2.
  • Page 18 Cleaning Cleaning 3. Plug in the power cord and turn on 4. Turn off (O) the heating switch (I) the heating switch (#12). Allow the (#12) and allow the liquid mixture to water to heat for 15 minutes. cool down for 20 minutes. 15 min 20 min 5.
  • Page 19: Troubleshooting

    Troubleshooting...
  • Page 20 Troubleshooting Troubleshooting If you are having trouble with your water cooler please see the following solutions. You can also view our trouble shooting videos at the website below. Please feel free to contact us with any questions. 1-800-256-0695 support@avalonh2o.com www.avalonh2o.com...
  • Page 21 Troubleshooting Troubleshooting No water dispensing from spouts This could be caused by the water bottle being empty. Please replace the bottle and allow 5-10 minutes for the water cooler tanks to fill up. Allow the proper time for the water to heat and cool. This could be the result of the bottle supporter (#1) being blocked.
  • Page 22: Safety

    Safety...
  • Page 23 Safety Safety To reduce risk of injury and property damage, user must read this entire guide before assembling, installing and operating the dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use this properly can cause personal injury.
  • Page 24 Safety Safety • Ensure dispenser is unplugged prior to cleaning. • Never allow children to dispense hot water without proper and direct supervision. Unplug unit to prevent unsupervised use by children. • Service should be performed only by a certified technician. •...
