- Page 1 A few simple steps to ensure perfect water, every time.
- Page 3 Live Chat: We are also available Monday-Thursday: 9 a.m.-5:30 p.m. for live video chat! Friday: 9 a.m.-4:30 p.m. Let’s Connect Follow our social media accounts and stay up to date on the latest Avalon news. @avalon_h2o Avalon Water Coolers Avalonh2o www.avalonh2o.com...

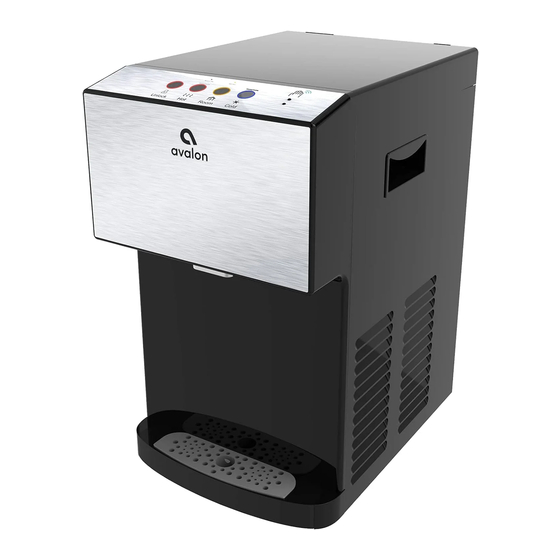

- Page 4 Use and Care Guide MODEL: A13CT-S Registration Please visit the website below to register your new water cooler within the first 30 days of purchase. Registration within the first 30 days will activate your one year warranty. www.avalonh2o.com/register-my-avalon-cooler Please keep your model number, order number and purchase date for future support.
-
Page 5: Table Of Contents
Contents About Your Water Cooler Meet Your Avalon Product Part Names Indicator Lights Tech Specs BioGuard Filter Function Introduction Getting Started Unpacking Installation (Under the Sink) 11-12 Installation (Refrigerator Water Line) Flushing Filters 14-15 Finishing Water Cooler Installation 16-19 Activating Heating and Cooling... -
Page 7: About Your Water Cooler
About Your Water Cooler Meet Your Avalon Product Inside the box, you’ll find: Metal Adapter with Valve Valve and 2 Filter Tube Assembly Flushing Adapters (3/8” compression) Carbon Block Filter Sediment Filter 2 Small PE Tubing 2 Mounting Brackets PE Tubing... - Page 8 About Your Water Cooler Meet Your Avalon Product Attractive Design Custom Temperature Dual Stage Filtration Worry-Free Cleaning Built-in Nightlight Attractive stainless Piping hot, Double the filtration Self-cleaning Makes late night steel design with cool, or crisp for twice the peace...
-
Page 9: Part Names
About Your Water Cooler Part Names 2. Heating Indicator Light 1. Filter Indicator Light 3. Self-Cleaning Indicator Light 4. Cooling Indicator Light Replace Filter Self Clean Blinking = Heating Blinking = Cooling 23. Touchless Sensor Unlock Cold 7. Cool Water Push Button 6. - Page 10 About Your Water Cooler Part Names 14. Filter Reset Switch 13. Filters 18. Cooling Switch 17. Nightlight Switch 19. Heating Switch 16. Self-Cleaning Switch 15. Condenser Push Connect Ring 20. Water Inlet 21. Power Cord 22. Drain Outlet...
-
Page 11: Indicator Lights
About Your Water Cooler Indicator Lights Heating Indicator Light This light will indicate when the water is heating. The light will blink while the water Heating is heating and will turn off when it has reached the correct temperature of 185°F. Cooling Indicator Light This light will indicate when the water is cooling. -
Page 12: Tech Specs
About Your Water Cooler Tech Specs A13CT-S Model Hot/Cold/Cool Output 1.8L/min / 2.2L/min / 2.0L/min Hot Water Capacity 4 L/H (≥ 185°F) Hot Tank Volume 1.16 Liters Cold Water Capacity 2.5 L/H ( ≤ 50°F) Cold Tank Volume 3.0 Liters Applicable Water Pressure 0.1-0.4 MPa... -
Page 13: Bioguard
About Your Water Cooler Benefits: The drip tray is the most unsanitary part of a water cooler. Water is constantly collecting in the drip tray and most people do not empty or clean the drip tray unless it is full. This can lead to unwanted bacteria and viruses building up in the drip tray. -
Page 14: Filter Function Introduction
About Your Water Cooler Filter Function Introduction Stage Filter Function Course filtration of raw water to Stage 1 Sediment Filter remove rust, dirt and sediment Removes the water odor, residual Stage 2 Carbon Block Filter chlorine, organic matter, and lead to improve taste... -
Page 15: Getting Started
Getting Started... -
Page 16: Unpacking
Getting Started Unpacking Your Avalon Water Cooler Locating Dispenser Do NOT plug in the power cord yet. • Place dispenser upright on a hard and level surface in a cool and shaded location near a • grounded wall outlet. Position the dispenser so there is about 4 inches of clearance from the wall on the back and both sides. -
Page 17: Installation (Under The Sink)
Getting Started Installation (Under the Sink) Installing the Metal Adapter with Valve 1. Turn off the current cold water supply 2. Disconnect the current cold that is the source of water to your sink. water supply line under your sink. 3. - Page 18 Getting Started Installation (Under the Sink) Installing the Metal Adapter with Valve 4. Remove the nut from the Metal Adapter with 5. Screw the nut tightly into place to keep the Valve and insert the PE Tubing through the nut. PE Tubing securely connected to the Metal Slide the PE Tubing onto the protruding part of Adapter with Valve.
-
Page 19: Installation (Refrigerator Water Line)
Getting Started Installation (Refrigerator Water Line) Installing the Three Way Plastic Adapter 1. Turn off the current cold water supply 2. Cut the current ¼” Tubing that that is the source of water to your is connected to the back of your refrigerator line. -
Page 20: Flushing Filters
Getting Started Flushing Filters Prior to Use Before continuing with installation, it is recommended that you flush both filters for approximately 2 minutes. 1. Twist the filter into the provided Filter 2. Take the open end of the PE Tubing Flushing Adapter by rotating it clockwise. - Page 21 Getting Started Flushing Filters Prior to Use 4. Turn the Valve of the Metal Adapter at 5. Remove the end of the PE Tubing the water source back to the off position, from the Filter Flushing Adapter by remove the filter from the Filter Flushing pressing in on the push connect ring Adapter.
-
Page 22: Finishing Water Cooler Installation
Getting Started Finishing the Water Cooler Installation Once you have flushed the filters and removed the filters and PE Tubing from the Filter Flushing Adaptor, you are ready to complete the installation process. 1. Locate the two black Mounting Brackets. 2. - Page 23 Getting Started Finishing the Water Cooler Installation 3. Locate the Valve and Tube Assembly. 4. Connect the PE Tubing (20’), that is connected Connect the tube end of this assembly to the to the water source, to the open end of the Valve left insert on the left Filter Adapter.
- Page 24 Getting Started Finishing the Water Cooler Installation 6. Remove the plug from the water inlet (#20) 7. Locate the second Small PE Tubing. Connect located on the back of the unit. To do this one end of the Small PE Tubing to the right press on the push connect ring in towards the side inlet of the right Filter Adapter.
- Page 25 Getting Started Finishing the Water Cooler Installation 9. Locate the Adapter with Valve that 10. After the installation of the water is connected to the water source. Turn line and filters is complete, plug the this valve to the on position (parallel power cord into a grounded wall to the PE Tubing) to allow the water to outlet and begin to use the machine.
-
Page 26: Activating Heating And Cooling
Getting Started Activate Heating and Cooling Before turning on the heating (#19) or cooling (#18) switches, ensure water is already filling inside the inner tanks by dispensing a drop of water from the hot (#6) and cold (#8) push buttons. To activate the cold water, push the cooling switch (#18) into the on (I) position by pushing the top of the switch in. -
Page 27: Installing And Removing The Drip Tray
Getting Started Installing and Removing the Drip Tray No external drain is needed, the overflow will collect here. The red float will rise to indicate when the drip tray needs to be emptied. 1. To install the drip tray, simply slide 2. -
Page 28: User Guide And Maintenance
User Guide and Maintenance... -
Page 29: Dispensing Water
User Guide and Maintenance Dispensing Water Cold Water Once you have turned the cooling switch (#18) into the on (I) position it will take initially 1 hour for the water to cool. During this time the cooling indicator light (#4) around the cold water button will blink. -
Page 30: Touchless Dispensing
User Guide and Maintenance Touchless Dispensing This model offers hands-free dispensing of cold water for a germ free experience. 1. Place the palm of your hand approximately 2 inches from the touchless sensor (#23). 2. After 1.5 seconds, the cold button (#8) will illuminate blue and cold water will automatically dispense. -
Page 31: Replacing The Filters
User Guide and Maintenance Replacing the Filters 1. When lifetime of the filter is near its end, 2. Shut off the valve located at the either by means of water flow or by means of connection to the water source 6 months time, the filter indicator light (#1) on or the valve located to the left of the left side of the front panel will blink red as... - Page 32 User Guide and Maintenance Replacing the Filters 3. Twist the expired filters to remove 4. Turn on the Valve that was them from the Filter Adapters at the back previously shut off. This valve on the unit. Insert the new filters into will be located at the connection the Filter Adapters by twisting them into to the water source or located to...
- Page 33 User Guide and Maintenance Replacing the Filters 5. After replacing the filters, press and 6. In order to flush the new filters, allow hold the filter reset button (#14) located the water to flow from the cold water on the left side of the unit. Press and spout for approximately 2 minutes.
-
Page 34: Leak Detection
User Guide and Maintenance Leak Detection Replace Filter Self Clean Blinking = Heating Blinking = Cooling Unlock Room Cold Our machines are equipped with a high-tech leak detector that will alert you of any potential leak. At the same time the machine will automatically shut off any intake of water to prevent a potential flood. -
Page 35: Cleaning
Cleaning... -
Page 36: Activating Self-Cleaning Function
Cleaning Activating Self-Cleaning Function It is recommended that the self-cleaning feature is used once a week to sanitize the tanks and water lines. 1. To activate, press the self-cleaning switch (#16) and hold in the on position for 5 seconds and release. The switch will immediately go back into the off position. 2. -
Page 37: Rinsing, Cleaning, And Draining
Cleaning Rinsing, Cleaning, and Draining To prolong the lifetime of the machine, it is recommended that the unit be cleaned and sanitized manually about every six months. To clean the outside of the unit Use a disinfectant of your choice to wipe down the outside of the machine. Disinfectant does not come with this unit. - Page 38 Cleaning Rinsing, Cleaning, and Draining 3. Pour 0.6 gallons of clean water into the 4. Place a large bucket beneath the drain cold tank. (The cold water tank is the open outlet (#22) located on the back of the unit. cylinder that the white cover was removed Remove the drain cover and allow the water from).
- Page 39 Cleaning Rinsing, Cleaning, and Draining 5. Once water is completely drained, reposition the drain cover, cold tank cover and the top cover. Ensure that the pipes and wires are connected properly and you may use the dispenser as normal.
-
Page 40: Cleaning
Cleaning Cleaning To remove mineral deposits that may have built up inside the the tanks, mix 4 L of water with 200 g of citric acid crystals (not included) or cleaning solution of your choice. 1. Unscrew the top cover and lift off the cold tank lid. 2. - Page 41 Cleaning Cleaning 3. Plug in the power cord and turn on 4. Turn off (O) the heating switch (I) the heating switch (#19). Allow the (#19) and allow the liquid mixture to water to heat for 15 minutes. cool down for 20 minutes. 15 min 20 min 5.
-
Page 42: Troubleshooting
Troubleshooting... - Page 43 Troubleshooting Troubleshooting If you are having trouble with your water cooler please see the following solutions. You can also view our trouble shooting videos at the website below. Please feel free to contact us with any questions. 1-800-256-0695 support@avalonh2o.com www.avalonh2o.com...
- Page 44 Troubleshooting Troubleshooting Indicator lights are flashing and unit is beeping If indicator lights #1, #2, #3, #4 are flashing and the unit is making a slow beeping sound, it is alerting you that there may be a leak in the unit. Please refer to page 28. Water leaking from unit Check to make sure that pipes are contact properly •...
-
Page 45: Safety
Safety... - Page 46 Safety Safety To reduce risk of injury and property damage, user must read this entire guide before assembling, installing and operating the dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use this properly can cause personal injury.
- Page 47 Safety Safety • Ensure dispenser is unplugged prior to cleaning. • Never allow children to dispense hot water without proper and direct supervision. Unplug unit to prevent unsupervised use by children. • Service should be performed only by a certified technician. •...
- Page 48 Warranty Warranty...
-
Page 49: Warranty
An “original purchaser,” for the purposes of this Limited Warranty, is an individual or entity who purchases the product directly from Avalon or an authorized retailer of Avalon with the intent to use the product for personal consumer use and commercial or industrial use and not with the intent to resell the product. An “authorized retailer,”...
