- Page 1 A few simple steps to ensure perfect water, every time.
- Page 2 Use and Care Guide MODELS: A1CTWTRCLRWHT • A1CTWTRCLRBLK Registration Please visit the website below to register your new water cooler within the first 30 days of purchase. Registration within the first 30 days will activate your one year warranty. www.avalonh2o.com/register-my-avalon-cooler Please keep your model number, order number and purchase date for future support.
-
Page 3: Table Of Contents
Contents About Your Water Cooler Meet Your Avalon Product Part Names Indicator Lights Tech Specs Getting Started Unpacking 8-10 Operation instructions Cleaning 12-14 Rinsing, Cleaning and Draining 15-16 Cleaning Troubleshooting 18-19 Safety 21-22... -
Page 4: About Your Water Cooler

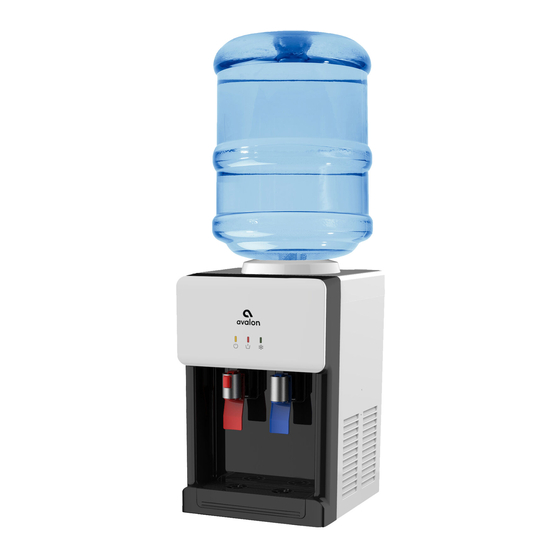

About Your Water Cooler Meet Your Avalon Product Attractive Design Custom Temperature Top Loading Modern countertop Piping hot, Suitable for 3 or design with or crisp cold water 5 gallon bottles press-paddle spouts UL Listed Energy Star Approved Child Safety Feature... -
Page 5: Part Names
About Your Water Cooler Part Names 1. Bottle Supporter 2. Heating Indicator Light 4. Power Indicator Light 3. Cooling Indicator Light 7. Child Safety Button 5. Cold Water Spout 8. Hot Water Spout 6. Cold Water Press Paddle 9. Hot Water Press Paddle 10. - Page 6 About Your Water Cooler Part Names 13. Heating Switch 14. Cooling Switch...
-
Page 7: Indicator Lights
About Your Water Cooler Indicator Lights Power Indicator Light This light will remain on as long as the water cooler is plugged in to indicate that the cooler is on. Heating Indicator Light This light will indicate when the water is heating. The light will remain on while the water is heating and will turn off when it has reached the correct temperature of 185°F. -
Page 8: Tech Specs
About Your Water Cooler Tech Specs Model A1CTWTRCLRWHT • A1CTWTRCLRBLK Hot/Cold Temp Output 1.2L/min / 2.5L/min Hot Water Capacity 4 L/H ( ≥ 185°F) Hot Tank Volume 1.02 Liters Cold Water Capacity 2 L/H ( ≤ 47°F) Cold Tank Volume... -
Page 9: Getting Started
Getting Started... -
Page 10: Unpacking
Getting Started Unpacking your Avalon Water Cooler The unit has been cleaned prior to departing from the factory. To remove any dust and debris that may collect during shipping we recommend cleaning the unit prior to installation, see pages, 12-16. -
Page 11: Operation Instructions
Getting Started Operation Instructions Do not plug in the machine or turn on the heating (#13) and cooling (#14) switches until water has begun to dispense from the cold water spout (#5) and the hot water spout (#8). 1. Remove any label or sticker from 2. - Page 12 Getting Started Operation Instructions 3. Press the hot (#9) and cold (#6) 4. Once water is dispensing from water press paddles for the hot both spouts insert the power plug (#8) and the cold (#5) water spout into a power socket. Turn on (I) the to dispense a drop of water.
- Page 13 Getting Started Operation Instructions 5. Once the switches are in the on position 6. When the water has reached the the heating indicator light (#2) and the appropriate temperatures for hot and cooling indicator light (#3) will turn on (I). It cold the indicator lights will turn off will take about 15 –...
- Page 14 Cleaning...
-
Page 15: Rinsing, Cleaning And Draining
Cleaning Rinsing, Cleaning, and Draining To prolong the lifetime of the machine, it is recommended that the unit be cleaned and sanitized manually about every six months. To clean the outside of the unit Use a disinfectant of your choice to wipe down the outside of the machine. Disinfectant does not come with this unit. - Page 16 Cleaning Rinsing, Cleaning, and Draining 3. Dispense about 2 liters of 4. Place a large bucket beneath the water from the unit into a bucket drain outlet (#12) located on the back by pressing dispense buttons for of the unit. Remove the drain cover and each temperature.
- Page 17 Cleaning Rinsing, Cleaning, and Draining 5. Remove any remaining water in 6. After draining is complete, the tanks by dispensing water from replace the drain cover and the hot water spout (#8) and the cold plug and use the machine water spout (#5) into a bucket.
-
Page 18: Cleaning
Cleaning Cleaning To remove mineral deposits that may have built up inside the the cold tank, mix 4 L of water with 200 g of citric acid crystals not included) or a cleaning solution of your choice. 1. Twist or lift off the bottle 2. - Page 19 Cleaning Cleaning 3. Plug in the power cord and turn on 4. Turn off (O) the heating switch (I) the heating switch (#13). Allow the (#13) and allow the liquid mixture to water to heat for 15 minutes. cool down for 20 minutes. 15 min 20 min 5.
-
Page 20: Troubleshooting
Troubleshooting... - Page 21 Troubleshooting Troubleshooting If you are having trouble with your water cooler please see the following solutions. You can also view our trouble shooting videos at the website below. Please feel free to contact us with any questions. 1-800-256-0695 support@avalonh2o.com www.avalonh2o.com...
- Page 22 Troubleshooting Troubleshooting Water not dispensing at a hot or cold temperature This could be caused by an over consumption of water in a short period of time causing the tanks to empty. Please allow 5 to 10 minutes for the water cooler tanks to refill. Allow the proper time for the water to heat and cool.
-
Page 23: Safety
Safety... - Page 24 Safety Safety To reduce risk of injury and property damage, user must read this entire guide before assembling, installing and operating the dispenser. Failure to execute the instructions in this manual can cause personal injury or property damage. This product dispenses water at very high temperatures. Failure to use this properly can cause personal injury.
- Page 25 Safety Safety • Ensure dispenser is unplugged prior to cleaning. • Never allow children to dispense hot water without proper and direct supervision. Unplug unit to prevent unsupervised use by children. • Service should be performed only by a certified technician. •...
