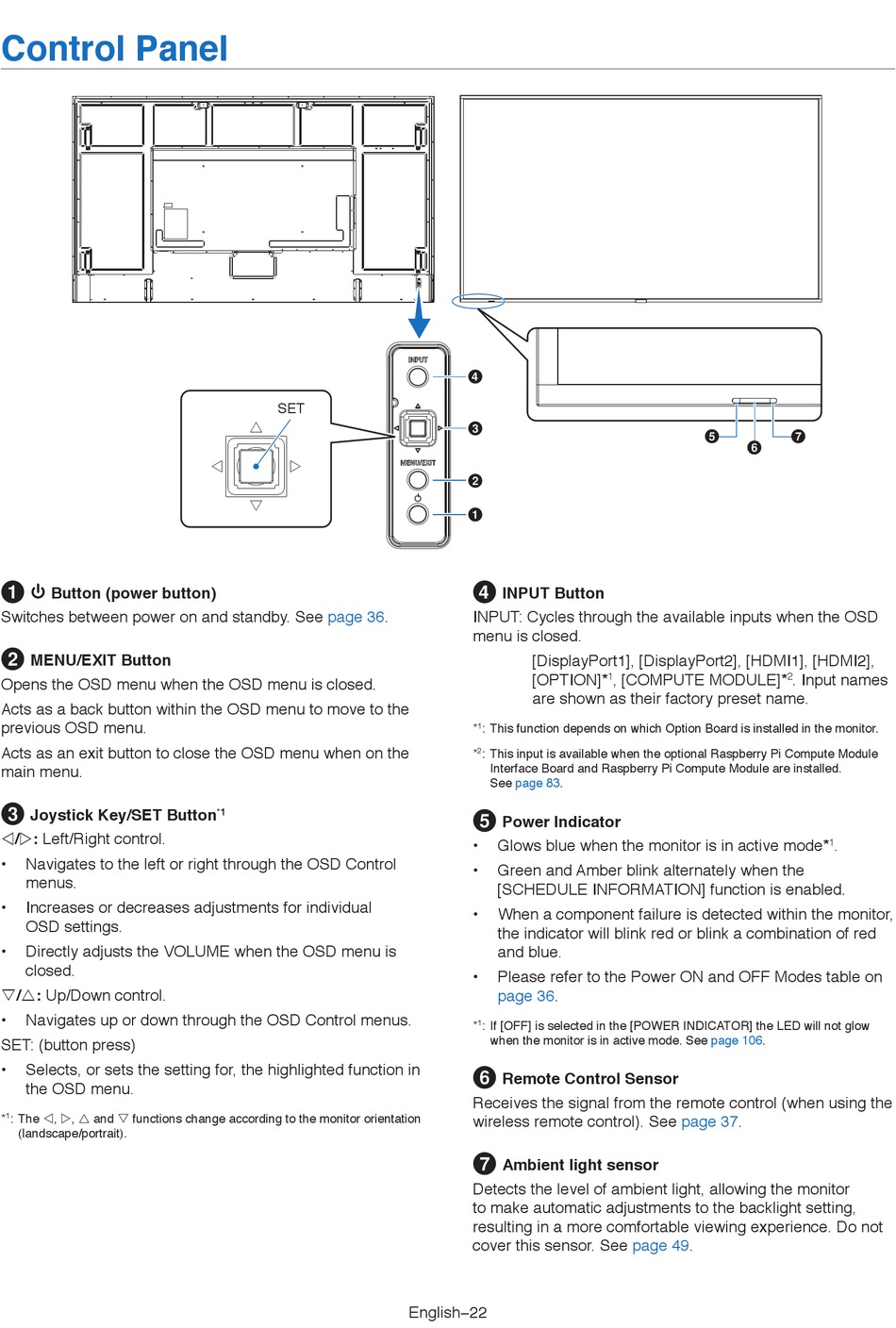

Control Panel
⏻ Button (power button)
1
Switches between power on and standby. See
MENU/EXIT Button
2
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
3
Joystick Key/SET Button
v/w: Left/Right control.
•
Navigates to the left or right through the OSD Control
menus.
•
Increases or decreases adjustments for individual
OSD settings.
•
Directly adjusts the VOLUME when the OSD menu is
closed.
s/r: Up/Down control.
•
Navigates up or down through the OSD Control menus.
SET: (button press)
•
Selects, or sets the setting for, the highlighted function in
the OSD menu.
*
: The v, w, r and s functions change according to the monitor orientation
1
(landscape/portrait).
SET
page
36.
*1
4
3
2
1
INPUT Button
4
INPUT: Cycles through the available inputs when the OSD
menu is closed.
[DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2],
[OPTION]*
are shown as their factory preset name.
*
: This function depends on which Option Board is installed in the monitor.
1
*
: This input is available when the optional Raspberry Pi Compute Module
2
Interface Board and Raspberry Pi Compute Module are installed.
See
page
83.
5
Power Indicator
•
Glows blue when the monitor is in active mode*
•
Green and Amber blink alternately when the
[SCHEDULE INFORMATION] function is enabled.
•
When a component failure is detected within the monitor,
the indicator will blink red or blink a combination of red
and blue.
•
Please refer to the Power ON and OFF Modes table on
page
36.
*
: If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
1
when the monitor is in active mode. See
6
Remote Control Sensor
Receives the signal from the remote control (when using the
wireless remote control). See
7
Ambient light sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See
English−22
5
6
, [COMPUTE MODULE]*
1
page
106.
page
37.
page
49.
7
. Input names
2
.
1
