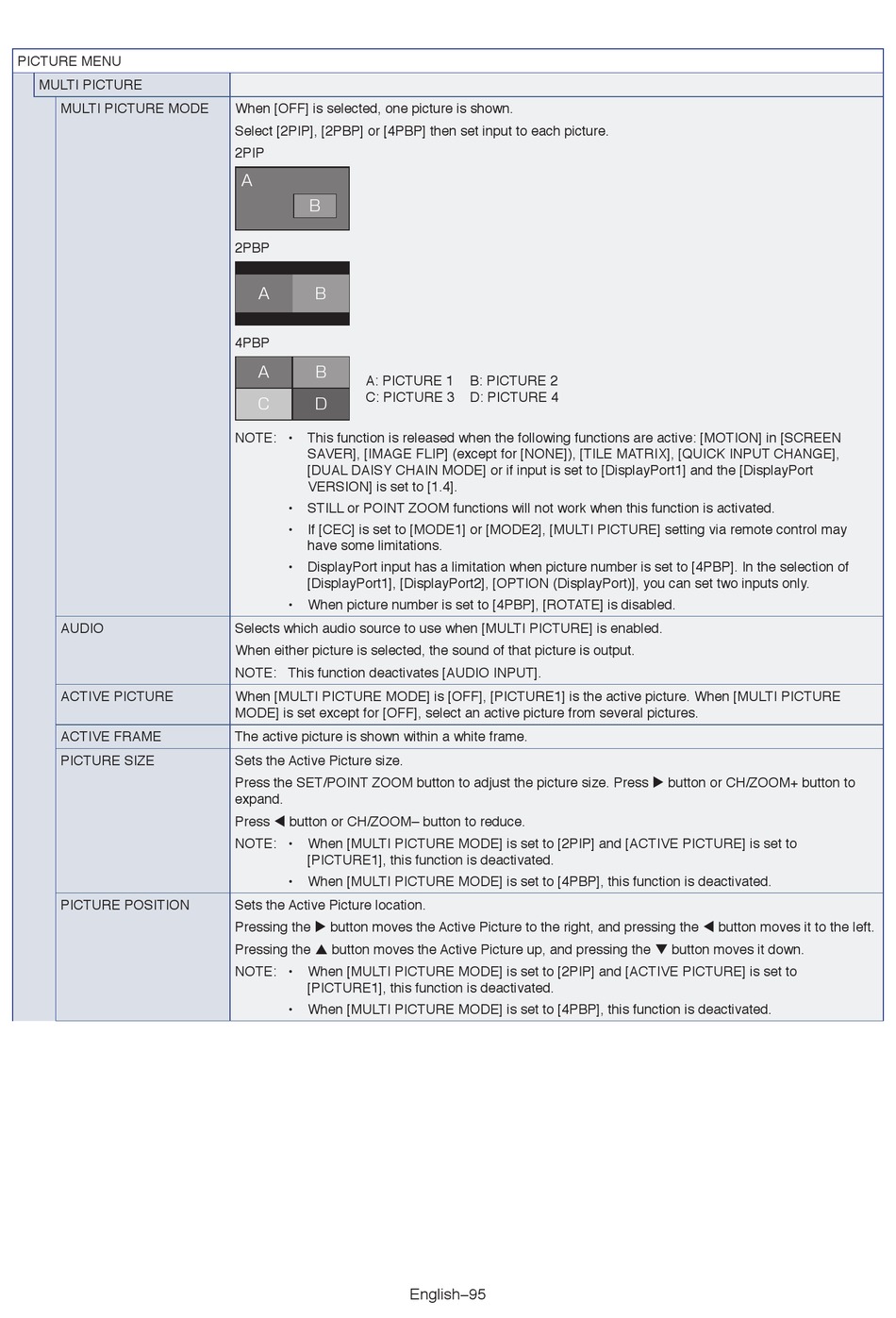

PICTURE MENU
MULTI PICTURE
MULTI PICTURE MODE
AUDIO
ACTIVE PICTURE
ACTIVE FRAME
PICTURE SIZE
PICTURE POSITION
When [OFF] is selected, one picture is shown.
Select [2PIP], [2PBP] or [4PBP] then set input to each picture.
2PIP
A
B
2PBP
A B
4PBP
A B
A: PICTURE 1
C: PICTURE 3
C D
NOTE: • This function is released when the following functions are active: [MOTION] in [SCREEN


SAVER], [IMAGE FLIP] (except for [NONE]), [TILE MATRIX], [QUICK INPUT CHANGE],
[DUAL DAISY CHAIN MODE] or if input is set to [DisplayPort1] and the [DisplayPort
VERSION] is set to [1.4].

• STILL or POINT ZOOM functions will not work when this function is activated.

• If [CEC] is set to [MODE1] or [MODE2], [MULTI PICTURE] setting via remote control may
have some limitations.

• DisplayPort input has a limitation when picture number is set to [4PBP]. In the selection of
[DisplayPort1], [DisplayPort2], [OPTION (DisplayPort)], you can set two inputs only.

• When picture number is set to [4PBP], [ROTATE] is disabled.
Selects which audio source to use when [MULTI PICTURE] is enabled.
When either picture is selected, the sound of that picture is output.
NOTE: This function deactivates [AUDIO INPUT].


When [MULTI PICTURE MODE] is [OFF], [PICTURE1] is the active picture. When [MULTI PICTURE
MODE] is set except for [OFF], select an active picture from several pictures.
The active picture is shown within a white frame.
Sets the Active Picture size.
Press the SET/POINT ZOOM button to adjust the picture size. Press  button or CH/ZOOM+ button to
expand.
Press  button or CH/ZOOM– button to reduce.
NOTE: • When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to


[PICTURE1], this function is deactivated.

• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
Sets the Active Picture location.
Pressing the  button moves the Active Picture to the right, and pressing the  button moves it to the left.
Pressing the  button moves the Active Picture up, and pressing the  button moves it down.
NOTE: • When [MULTI PICTURE MODE] is set to [2PIP] and [ACTIVE PICTURE] is set to


[PICTURE1], this function is deactivated.

• When [MULTI PICTURE MODE] is set to [4PBP], this function is deactivated.
B: PICTURE 2
D: PICTURE 4
English−95
