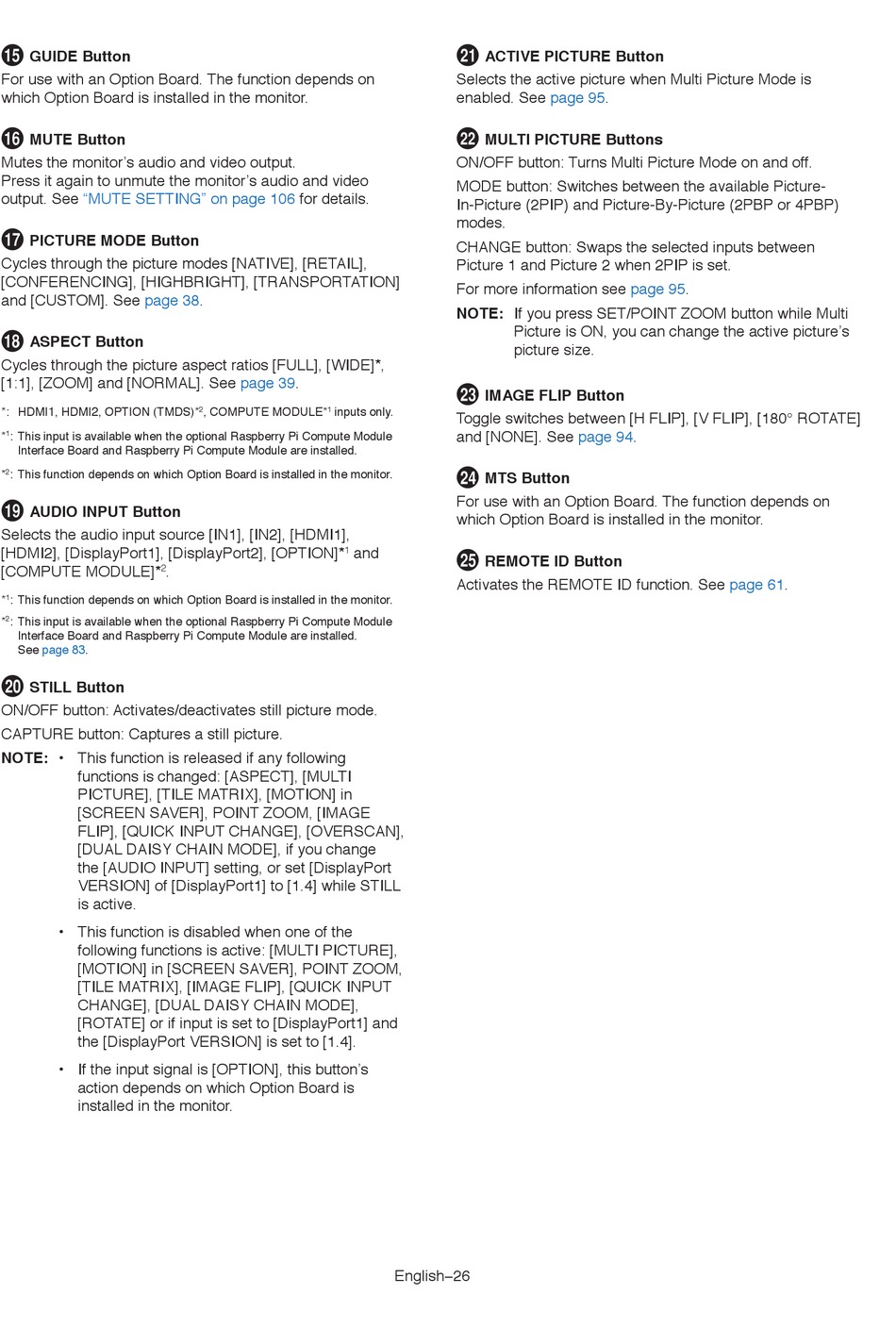

NEC MultiSync M981 User Manual page 30

GUIDE Button
%
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
MUTE Button
^
Mutes the monitor's audio and video output.
Press it again to unmute the monitor's audio and video
output. See "MUTE SETTING" on page 106
& PICTURE MODE Button
Cycles through the picture modes [NATIVE], [RETAIL],
[CONFERENCING], [HIGHBRIGHT], [TRANSPORTATION]
and [CUSTOM]. See page
* ASPECT Button
Cycles through the picture aspect ratios [FULL], [WIDE]*,
[1:1], [ZOOM] and [NORMAL]. See
*: HDMI1, HDMI2, OPTION (TMDS)*
* : This input is available when the optional Raspberry Pi Compute Module
1
Interface Board and Raspberry Pi Compute Module are installed.
* : This function depends on which Option Board is installed in the monitor.
2
AUDIO INPUT Button
(
Selects the audio input source [IN1], [IN2], [HDMI1],
[HDMI2], [DisplayPort1], [DisplayPort2], [OPTION]*
[COMPUTE MODULE]*
2
* : This function depends on which Option Board is installed in the monitor.
1
* : This input is available when the optional Raspberry Pi Compute Module
2
Interface Board and Raspberry Pi Compute Module are installed.
See page 83.
) STILL Button
ON/OFF button: Activates/deactivates still picture mode.
CAPTURE button: Captures a still picture.
NOTE: • This function is released if any following


functions is changed: [ASPECT], [MULTI
PICTURE], [TILE MATRIX], [MOTION] in
[SCREEN SAVER], POINT ZOOM, [IMAGE
FLIP], [QUICK INPUT CHANGE], [OVERSCAN],
[DUAL DAISY CHAIN MODE], if you change
the [AUDIO INPUT] setting, or set [DisplayPort
VERSION] of [DisplayPort1] to [1.4] while STILL
is active.

• This function is disabled when one of the
following functions is active: [MULTI PICTURE],
[MOTION] in [SCREEN SAVER], POINT ZOOM,
[TILE MATRIX], [IMAGE FLIP], [QUICK INPUT
CHANGE], [DUAL DAISY CHAIN MODE],
[ROTATE] or if input is set to [DisplayPort1] and
the [DisplayPort VERSION] is set to [1.4].

• If the input signal is [OPTION], this button's
action depends on which Option Board is
installed in the monitor.
for details.
38.
page 39.
, COMPUTE MODULE*
2 1
.
ACTIVE PICTURE Button
-
Selects the active picture when Multi Picture Mode is
enabled. See
MULTI PICTURE Buttons
=
ON/OFF button: Turns Multi Picture Mode on and off.
MODE button: Switches between the available Picture-
In-Picture (2PIP) and Picture-By-Picture (2PBP or 4PBP)
modes.
CHANGE button: Swaps the selected inputs between
Picture 1 and Picture 2 when 2PIP is set.
For more information see
NOTE:


IMAGE FLIP Button
q
inputs only.
Toggle switches between [H FLIP], [V FLIP], [180° ROTATE]
and [NONE]. See
w MTS Button
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
and
1
e REMOTE ID Button
Activates the REMOTE ID function. See
English−26
page 95.
page 95.
If you press SET/POINT ZOOM button while Multi
Picture is ON, you can change the active picture's
picture size.
page 94.
page 61.
