PIN ASSIGNMENT
RS-232C input/output
Pin No Name
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This monitor uses RXD, TXD and GND lines for RS-232C control.

Controlling the Monitor via LAN

Connecting to a Network
Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings by using an HTTP server function.
To use a LAN connection, you are required to assign an IP address. The monitor will obtain an IP address automatically when
connected to a DHCP network.

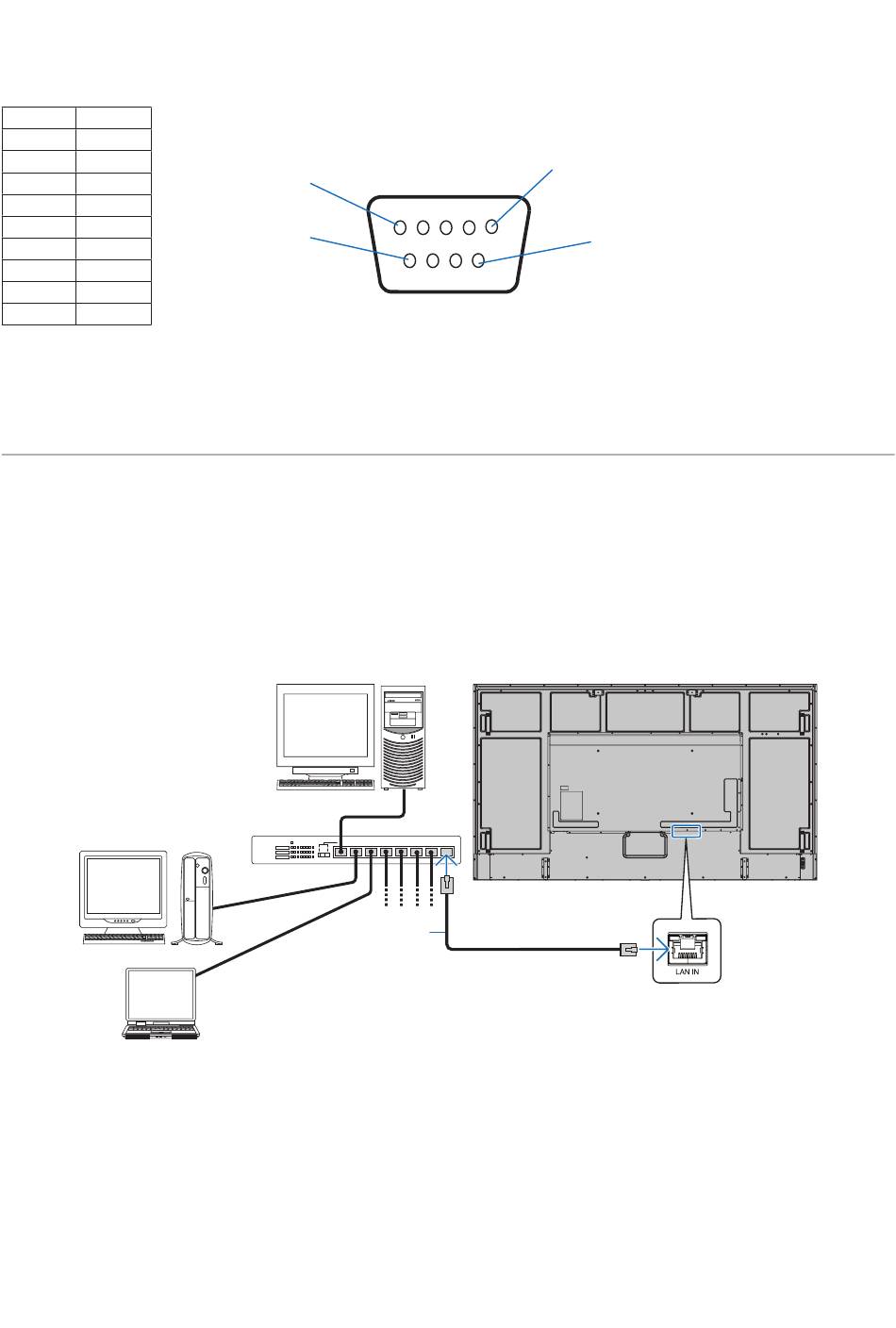

Example of LAN connection:
D-SUB 9P (Monitor side)
1
6
Server
Hub
LAN cable
NOTE: Use a category 5 or higher LAN cable.
